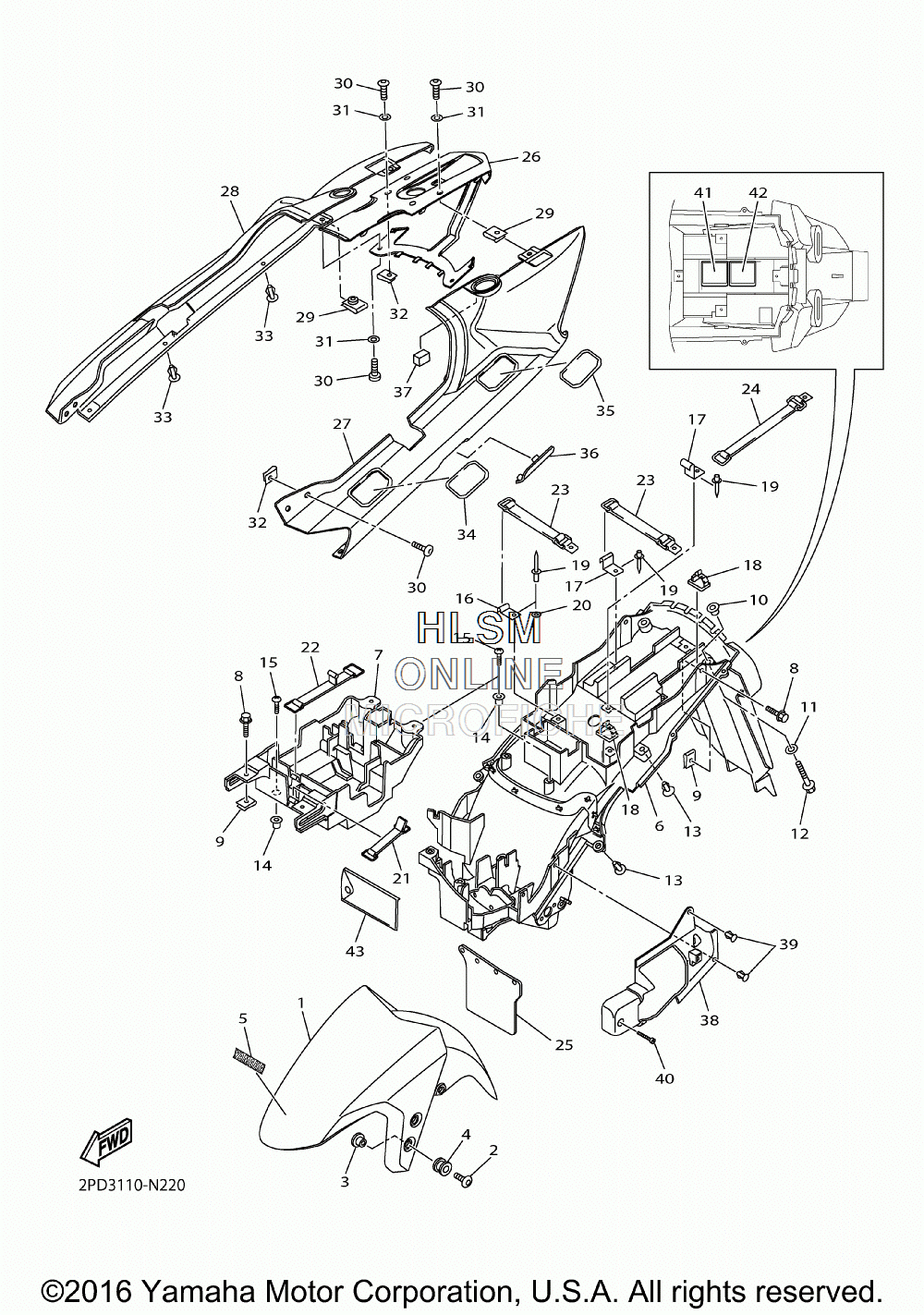

FENDER - FRONT / REAR для Yamaha FJR1300 ES [FJR13ESF] - 2015 года выпуска`
-
№АртикулНазвание
-
11MD-21511-00-P4 FENDER, FRONT (DNMN)FENDER, FRONT (DNMN)
-
290111-06043-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
390387-065J6-00 COLLARCOLLAR
-
490480-12072-00 GROMMETGROMMET
-
53WF-2153E-70-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
61MD-21611-00-00 FENDER, REARFENDER, REAR
-
71MD-2160E-00-00 BOXBOX
-
890119-06159-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990183-060A7-00 NUT, SPRINGNUT, SPRING
-
1090387-06231-00 COLLARCOLLAR
-
1190201-07081-00 WASHER, PLATEWASHER, PLATE
-
1295802-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1390269-06081-00 RIVETRIVET
-
1490338-08226-00 PLUGPLUG
-
1597702-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
165PS-2162A-00-00 HOOKHOOK
-
174HM-2162A-00-00 HOOKHOOK
-
1890464-13185-00 CLAMPCLAMP
-
1990267-40076-00 RIVET, BLINDRIVET, BLIND
-
2092902-04200-00 WASHER, PLAINWASHER, PLAIN
-
2136X-2811G-00-00 BANDBAND
-
224J2-82131-01-00 BAND, BATTERYBAND, BATTERY
-
235JW-21647-01-00 BANDBAND
-
243P6-21647-00-00 BANDBAND
-
255JW-21621-10-00 FLAPFLAP
-
263P6-21651-00-P9 COVER, REAR FENDER (DNMN)COVER, REAR FENDER (DNMN)
-
273P6-2471K-00-P9 COVER, TAIL 1 (DNMN)COVER, TAIL 1 (DNMN)
-
283P6-2472K-00-P9 COVER, TAIL 2 (DNMN)COVER, TAIL 2 (DNMN)
-
2990183-051A0-00 NUT, SPRINGNUT, SPRING
-
3090111-05044-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3190202-05180-00 WASHER, PLATEWASHER, PLATE
-
3290183-050A0-00 NUT, SPRINGNUT, SPRING
-
3390269-06081-00 RIVETRIVET
-
343P6-2163E-01-P8 COVER, REAR FENDER 2 (DNMN)COVER, REAR FENDER 2 (DNMN)
-
353P6-2163E-11-P8 COVER, REAR FENDER 2 (DNMN)COVER, REAR FENDER 2 (DNMN)
-
363P6-2163F-01-P8 COVER, REAR FENDER 3 (DNMN)COVER, REAR FENDER 3 (DNMN)
-
373P6-21649-00-00 DAMPERDAMPER
-
381MC-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
3990269-06081-00 RIVETRIVET
-
4097702-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
4113S-21684-10-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
-
421MC-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
-
431MC-28100-00-00 TOOL KITTOOL KIT
