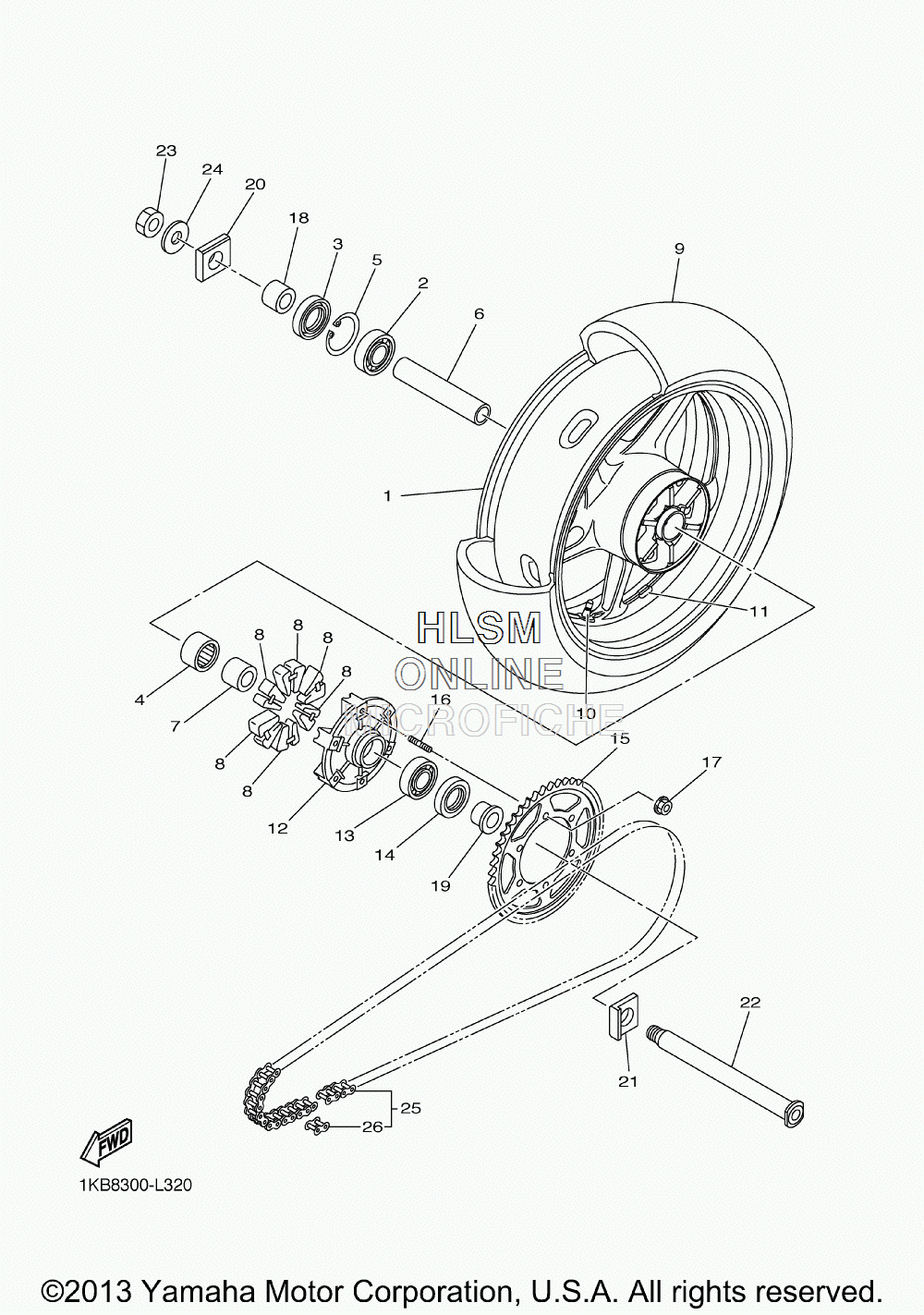

WHEEL - REAR для Yamaha YZFR1 - 2014 года выпуска`
-
№АртикулНазвание
-
15VY-25338-00-5X CAST WHEEL, REAR (LGB/RW FOR DPBMC)CAST WHEEL, REAR (LGB/RW FOR DPBMC)
-
15VY-25338-00-4X CAST WHEEL, REAR (LGB/HTR FOR VRC1)CAST WHEEL, REAR (LGB/HTR FOR VRC1)
-
15VY-25338-00-P5 CAST WHEEL, REAR (LNYM9 FOR MNM3)CAST WHEEL, REAR (LNYM9 FOR MNM3)
-
293306-20531-00 BEARINGBEARING
-
393106-40013-00 OIL SEALOIL SEAL
-
493317-43580-00 BEARINGBEARING
-
593420-61M07-00 CIRCLIP R-TYPECIRCLIP R-TYPE
-
65PW-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
74XV-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
82C0-25364-00-00 DAMPERDAMPER
-
994119-17072-00 TIRE (190/55 ZR17 M/C 75W) DUNLOPTIRE (190/55 ZR17 M/C 75W) DUNLOP
-
1093900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
115MT-25398-00-00 BALANCER, WHEEL (10G) (OPT)BALANCER, WHEEL (10G) (OPT)
-
115MT-25398-20-00 BALANCER, WHEEL (30G) (OPT)BALANCER, WHEEL (30G) (OPT)
-
115MT-25398-10-00 BALANCER, WHEEL (20G) (OPT)BALANCER, WHEEL (20G) (OPT)
-
125JJ-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1393306-20531-00 BEARINGBEARING
-
1493106-40013-00 OIL SEALOIL SEAL
-
1514B-25447-20-00 SPROCKET, DRIVEN (47T)SPROCKET, DRIVEN (47T)
-
1690116-10048-00 BOLT, STUDBOLT, STUD
-
1790185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1890387-28016-00 COLLARCOLLAR
-
1990387-28019-00 COLLARCOLLAR
-
205VY-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
215VY-25389-01-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
224C8-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2390185-24007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2490201-25020-00 WASHER, PLATEWASHER, PLATE
-
2594582-30120-00 CHAIN (DID 50VAZ-120LL)CHAIN (DID 50VAZ-120LL)
-
2694682-30031-00 ...JOINT, CHAIN (DID 50VAZ-ZJ)...JOINT, CHAIN (DID 50VAZ-ZJ)
