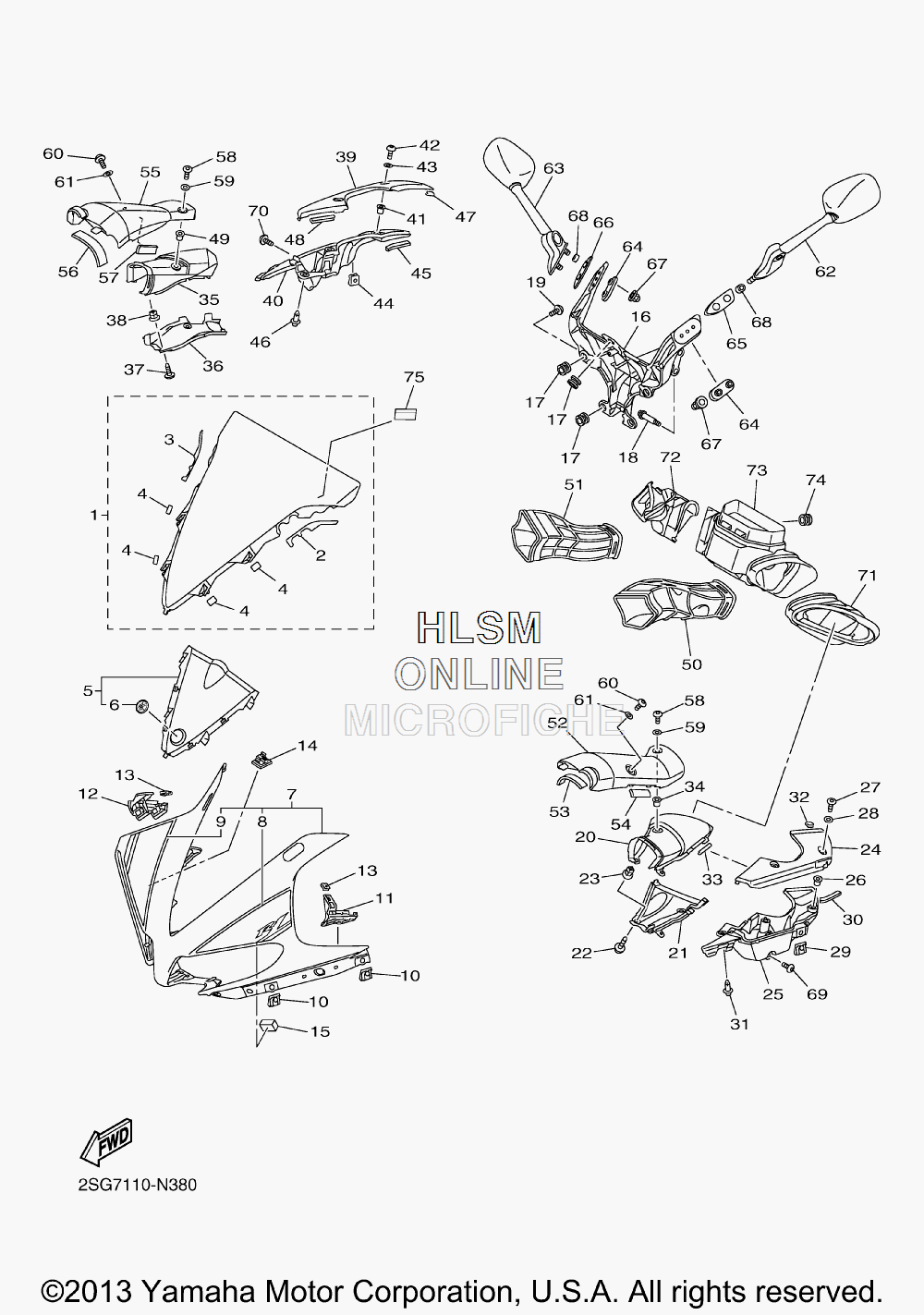

COWLING для Yamaha YZFR1 - 2014 года выпуска

№

Артикул

Название
1

14B-28380-40-00 WINDSCREEN ASSY

WINDSCREEN ASSY
2

14B-28428-10-00 ...SEAL 1

...SEAL 1
3

14B-28429-10-00 ...SEAL 2

...SEAL 2
4

4C8-21735-00-00 ...SEAL 2

...SEAL 2
5

1KB-2830P-00-00 PANEL ASSY

PANEL ASSY
6

4KN-2836B-10-00 ...TUNING FORK MARK

...TUNING FORK MARK
7

1KB-2835G-00-P5 BODY, FRONT UPPER 1 FOR VRC1

BODY, FRONT UPPER 1 FOR VRC1
7

1KB-2835G-00-P0 BODY, FRONT UPPER 1 FOR MNM3

BODY, FRONT UPPER 1 FOR MNM3
7

1KB-W283G-70-P1 BODY, FRONT UPPER 1 (BWC1 FOR DPBMC)

BODY, FRONT UPPER 1 (BWC1 FOR DPBMC)
8

2SG-2832K-00-00 ...GRAPHIC, 12

...GRAPHIC, 12
9

2SG-2832L-00-00 ...GRAPHIC, 13

...GRAPHIC, 13
10

5PW-2177L-00-00 PLATE, SPRING

PLATE, SPRING
11

1KB-2831U-00-00 STAY, SIDE 1

STAY, SIDE 1
12

1KB-2832U-00-00 STAY, SIDE 1

STAY, SIDE 1
13

90183-05076-00 NUT, SPRING

NUT, SPRING
14

90464-16020-00 CLAMP

CLAMP
15

90520-15010-00 DAMPER, PLATE

DAMPER, PLATE
16

14B-28356-10-00 STAY 1

STAY 1
17

4XV-83513-00-00 DAMPER

DAMPER
18

90105-08052-00 BOLT, FLANGE

BOLT, FLANGE
19

90160-05006-00 SCREW, ROUND TAPPING

SCREW, ROUND TAPPING
20

14B-2838N-00-P5 DUCT 1 FOR VRC1, MNM3

DUCT 1 FOR VRC1, MNM3
20

14B-2838N-00-P6 DUCT 1 FOR DPBMC

DUCT 1 FOR DPBMC
21

14B-2838T-00-00 DUCT 3

DUCT 3
22

97702-50012-00 SCREW, TAPPING

SCREW, TAPPING
23

90480-08005-00 GROMMET

GROMMET
24

14B-2839K-00-P5 LID 1 FOR VRC1, MNM3

LID 1 FOR VRC1, MNM3
24

14B-2839K-00-P6 LID 1 FOR DPBMC

LID 1 FOR DPBMC
25

14B-2838V-00-00 BOX 3

BOX 3
26

90179-05523-00 NUT SPEC'L SHAPE

NUT SPEC'L SHAPE
27

90111-05034-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON
28

90202-05180-00 WASHER, PLATE

WASHER, PLATE
29

5PW-2177L-00-00 PLATE, SPRING

PLATE, SPRING
30

J44-78248-00-00 SEAL 4

SEAL 4
31

90269-07077-00 RIVET

RIVET
32

90520-01001-00 DAMPER, PLATE

DAMPER, PLATE
33

90520-03005-00 DAMPER, PLATE

DAMPER, PLATE
34

90179-05523-00 NUT SPEC'L SHAPE

NUT SPEC'L SHAPE
35

14B-2838R-00-P5 DUCT 2 FOR VRC1, MNM3

DUCT 2 FOR VRC1, MNM3
35

14B-2838R-00-P6 DUCT 2 FOR DPBMC

DUCT 2 FOR DPBMC
36

14B-2838U-00-00 DUCT 4

DUCT 4
37

97702-50012-00 SCREW, TAPPING

SCREW, TAPPING
38

90480-08005-00 GROMMET

GROMMET
39

14B-2839L-00-P5 LID 2 FOR VRC1, MNM3

LID 2 FOR VRC1, MNM3
39

14B-2839L-00-P6 LID 2 FOR DPBMC

LID 2 FOR DPBMC
40

14B-2838W-00-00 BOX 4

BOX 4
41

90179-05523-00 NUT SPEC'L SHAPE

NUT SPEC'L SHAPE
42

90111-05034-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON
43

90202-05180-00 WASHER, PLATE

WASHER, PLATE
44

5PW-2177L-00-00 PLATE, SPRING

PLATE, SPRING
45

J44-78248-00-00 SEAL 4

SEAL 4
46

90269-07077-00 RIVET

RIVET
47

90520-01001-00 DAMPER, PLATE

DAMPER, PLATE
48

90520-03005-00 DAMPER, PLATE

DAMPER, PLATE
49

90179-05523-00 NUT SPEC'L SHAPE

NUT SPEC'L SHAPE
50

14B-2838J-00-00 DUCT 5

DUCT 5
51

14B-2838P-00-00 DUCT 6

DUCT 6
52

14B-2837L-00-P5 PANEL, CONSOLE 1 FOR VRC1, MNM3

PANEL, CONSOLE 1 FOR VRC1, MNM3
52

14B-2837L-00-P6 PANEL, CONSOLE 1 FOR DPBMC

PANEL, CONSOLE 1 FOR DPBMC
53

4C8-2112D-00-00 DAMPER, 3

DAMPER, 3
54

2S3-2111D-00-00 SEAL 1

SEAL 1
55

14B-2837M-00-P5 PANEL, CONSOLE 2 FOR VRC1, MNM3

PANEL, CONSOLE 2 FOR VRC1, MNM3
55

14B-2837M-00-P6 PANEL, CONSOLE 2 FOR DPBMC

PANEL, CONSOLE 2 FOR DPBMC
56

4C8-2112D-00-00 DAMPER, 3

DAMPER, 3
57

2S3-2111D-00-00 SEAL 1

SEAL 1
58

90111-05034-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON
59

90202-05180-00 WASHER, PLATE

WASHER, PLATE
60

90111-05034-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON
61

90202-05180-00 WASHER, PLATE

WASHER, PLATE
62

14B-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)

REAR VIEW MIRROR ASSY (LEFT)
63

14B-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)

REAR VIEW MIRROR ASSY (RIGHT)
64

4C8-26298-00-00 PLATE, MIRROR FITTING 1

PLATE, MIRROR FITTING 1
65

14B-2628N-00-00 BASE, MIRROR (LEFT)

BASE, MIRROR (LEFT)
66

14B-2628R-00-00 BASE, MIRROR (RIGHT)

BASE, MIRROR (RIGHT)
67

90176-06055-00 NUT, CROWN

NUT, CROWN
68

90387-064T3-00 COLLAR

COLLAR
69

90111-05034-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON
70

90111-05034-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON
71

14B-2846C-00-00 BOX, SIDE 1

BOX, SIDE 1
72

14B-2846D-00-00 BOX, SIDE 2

BOX, SIDE 2
73

14B-2845D-10-00 BOX, FRONT

BOX, FRONT
74

90480-13567-00 GROMMET

GROMMET
75

4B5-2815K-00-00 LABEL, NOTICE WINDSHIELD 1

LABEL, NOTICE WINDSHIELD 1
