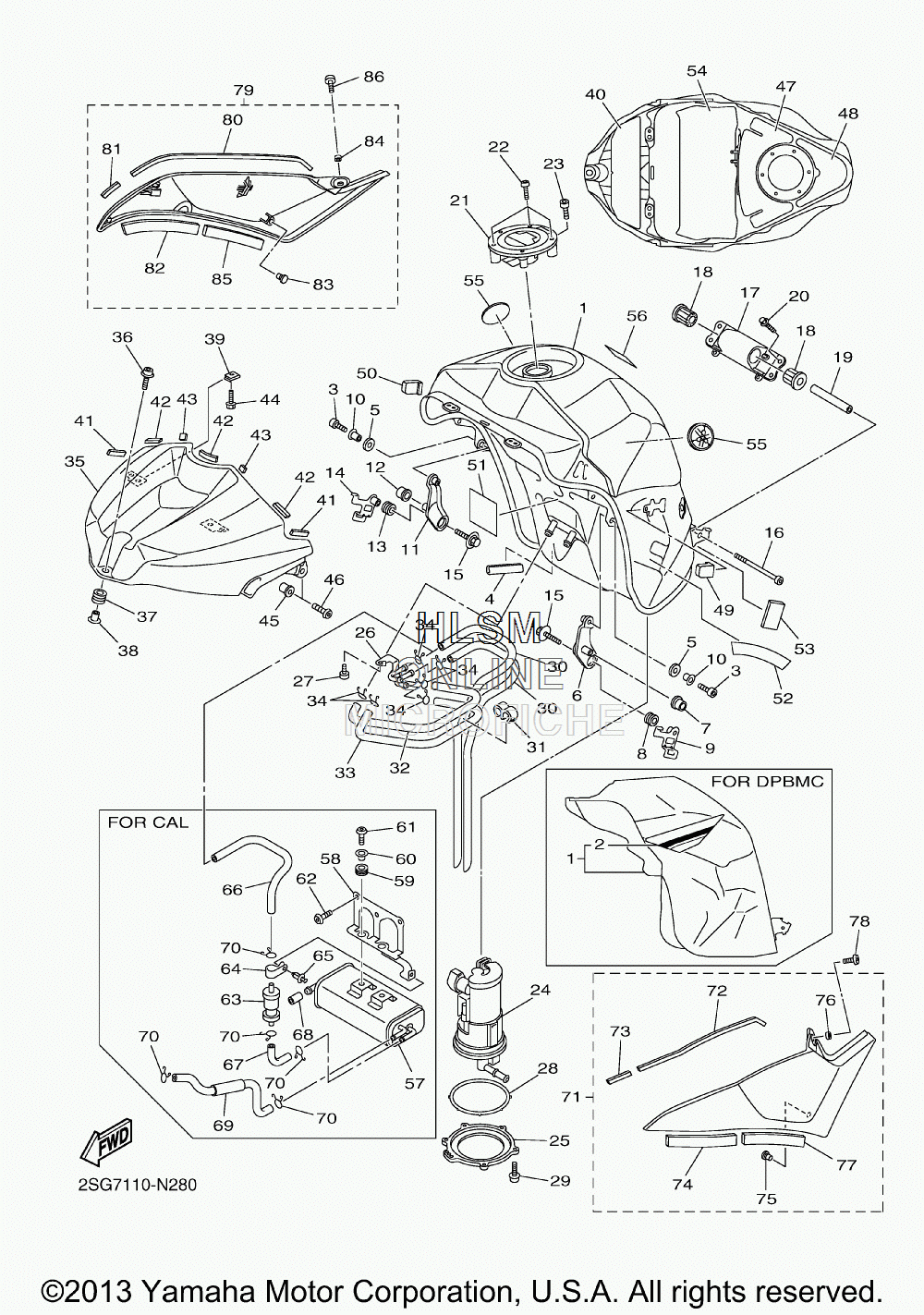

FUEL TANK для Yamaha YZFR1 - 2014 года выпуска
-
№АртикулНазвание
-
114B-YK241-00-P5 FUEL TANK COMP. FOR VRC1FUEL TANK COMP. FOR VRC1
-
114B-24110-00-P4 FUEL TANK COMP. FOR MNM3FUEL TANK COMP. FOR MNM3
-
114B-Y2410-00-07 FUEL TANK COMP. BWC1 FOR DPBMCFUEL TANK COMP. BWC1 FOR DPBMC
-
22SG-24240-00-00 ......GRAPHIC SET FOR DPBMC......GRAPHIC SET FOR DPBMC
-
391312-06016-00 BOLTBOLT
-
44BP-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
55VY-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
614B-24191-10-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
75VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
890480-10542-00 GROMMETGROMMET
-
914B-21161-00-00 HOLDER, CABLEHOLDER, CABLE
-
1090387-06143-00 COLLARCOLLAR
-
1114B-24192-10-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
125VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1390480-10542-00 GROMMETGROMMET
-
1414B-21162-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
1590119-06262-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690110-06378-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1714B-2413Y-10-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
185SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1990387-06055-00 COLLARCOLLAR
-
2090110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2139P-24602-00-00 CAP ASSYCAP ASSY
-
2290110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2391312-05010-00 BOLTBOLT
-
2414B-13907-20-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
2513S-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2614B-24135-00-00 CLAMP 1CLAMP 1
-
2790110-05030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2819B-24486-01-00 O-RINGO-RING
-
2990110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3014B-24312-00-00 PIPE 2 (CALIF ONLY)PIPE 2 (CALIF ONLY)
-
3014B-24312-00-00 PIPE 2 (EXCEPT CALIF.)PIPE 2 (EXCEPT CALIF.)
-
3190464-09M31-00 CLAMPCLAMP
-
3214B-24313-00-00 PIPE 3 (EXCEPT CALIF.)PIPE 3 (EXCEPT CALIF.)
-
3214B-24313-10-00 PIPE 3 (CALIF ONLY)PIPE 3 (CALIF ONLY)
-
3314B-24314-00-00 PIPE 4PIPE 4
-
3490467-09006-00 CLIPCLIP
-
3514B-2171A-00-P0 COVER, TOP (MBL2 FOR MNM3)COVER, TOP (MBL2 FOR MNM3)
-
3514B-2171A-00-P4 COVER, TOP (BWC1 FOR DPBMC)COVER, TOP (BWC1 FOR DPBMC)
-
3514B-2171A-00-P8 COVER, TOP FOR VRC1COVER, TOP FOR VRC1
-
3690110-06233-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3790480-12023-00 GROMMETGROMMET
-
3890387-06203-00 COLLARCOLLAR
-
3990183-05074-00 NUT, SPRINGNUT, SPRING
-
4014B-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
414C8-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
423XV-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
4314B-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
4490119-05015-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4590179-05523-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
-
4698902-05014-00 SCREW, BINDSCREW, BIND
-
4714B-2414N-20-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
4814B-2414P-20-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
495PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
505PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
515VU-21747-00-00 DAMPERDAMPER
-
5214B-2414K-10-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
5314B-2414G-00-00 SEALSEAL
-
5490520-08002-00 DAMPER, PLATEDAMPER, PLATE
-
555SL-2413B-00-00 EMBLEMEMBLEM
-
564C8-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
5714B-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
5814B-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
5990480-13018-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
6090387-062L2-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
6192012-06016-00 BOLT, BUTTON HEAD (CALIF ONLY)BOLT, BUTTON HEAD (CALIF ONLY)
-
6290111-06140-00 BOLT, HEX. SOCKET BUTTON (CALIF ONLY)BOLT, HEX. SOCKET BUTTON (CALIF ONLY)
-
635PX-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
6490461-15139-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
6590269-05001-00 RIVET (CALIF ONLY)RIVET (CALIF ONLY)
-
6614B-24315-00-00 PIPE 5 (CALIF ONLY)PIPE 5 (CALIF ONLY)
-
6714B-24316-00-00 PIPE 6 (CALIF ONLY)PIPE 6 (CALIF ONLY)
-
6890445-11418-00 HOSE (L18) (CALIF ONLY)HOSE (L18) (CALIF ONLY)
-
6914B-1443J-00-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
7090467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
7114B-24106-10-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
722C0-2414H-00-00 ...DAMPER, PLATE 1...DAMPER, PLATE 1
-
7314B-2414J-00-00 ...DAMPER, PLATE 2...DAMPER, PLATE 2
-
742C0-2414J-00-00 ...DAMPER, PLATE 2...DAMPER, PLATE 2
-
7590338-06018-00 ...PLUG...PLUG
-
7690560-05N33-00 ...SPACER...SPACER
-
7790520-10005-00 ...DAMPER, PLATE...DAMPER, PLATE
-
7898902-05008-00 SCREW, BINDSCREW, BIND
-
7914B-24108-10-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
802C0-2414H-00-00 ...DAMPER, PLATE 1...DAMPER, PLATE 1
-
8114B-2414J-00-00 ...DAMPER, PLATE 2...DAMPER, PLATE 2
-
822C0-2414J-00-00 ...DAMPER, PLATE 2...DAMPER, PLATE 2
-
8390338-06018-00 ...PLUG...PLUG
-
8490560-05N33-00 ...SPACER...SPACER
-
8590520-10005-00 ...DAMPER, PLATE...DAMPER, PLATE
-
8698902-05008-00 SCREW, BINDSCREW, BIND
