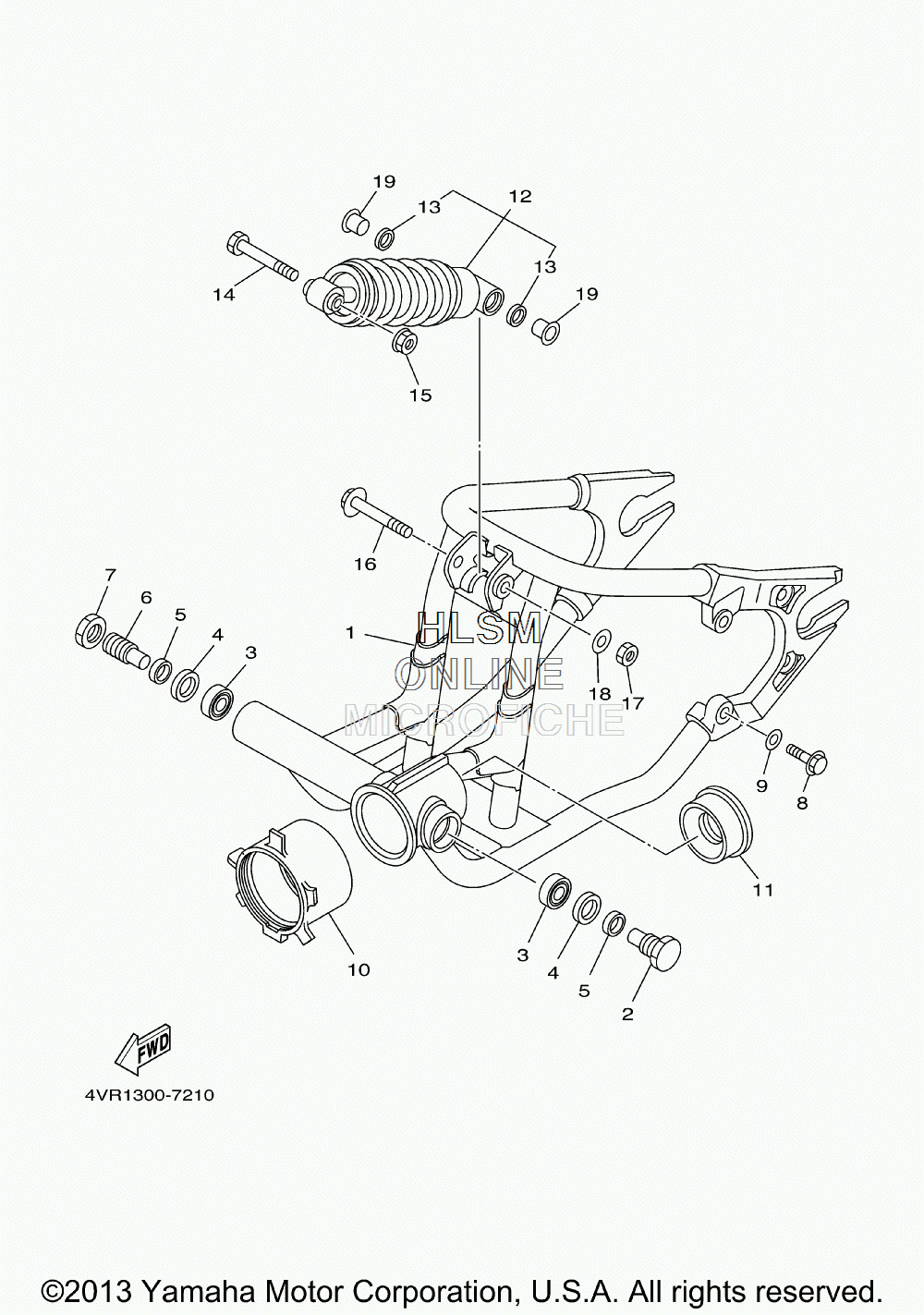

SUSPENSION - REAR ARM для Yamaha V STAR 650 CUSTOM - 2014 года выпуска`
-
№АртикулНазвание
-
14VR-22110-01-00 REAR ARM COMP.REAR ARM COMP.
-
24KM-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
393332-00010-00 BEARING TAPRD #32BEARING TAPRD #32
-
493102-25017-00 OIL SEAL SD-TYPEOIL SEAL SD-TYPE
-
590387-17543-00 COLLARCOLLAR
-
61J7-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
71J7-22143-00-00 NUTNUT
-
890105-101A9-00 BOLT WASHER BASEDBOLT WASHER BASED
-
990201-112U0-00 WASHER, PLATEWASHER, PLATE
-
104TR-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
114VR-22184-00-00 BUSHBUSH
-
125FB-22210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1393109-18020-00 ...OIL SEAL SDO-TYPE...OIL SEAL SDO-TYPE
-
1490109-125F1-00 BOLTBOLT
-
1595607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690109-125F1-00 BOLTBOLT
-
1795607-12100-00 NUT, UNUT, U
-
1890201-124G9-00 WASHER, PLATEWASHER, PLATE
-
1990387-123X6-00 COLLARCOLLAR
