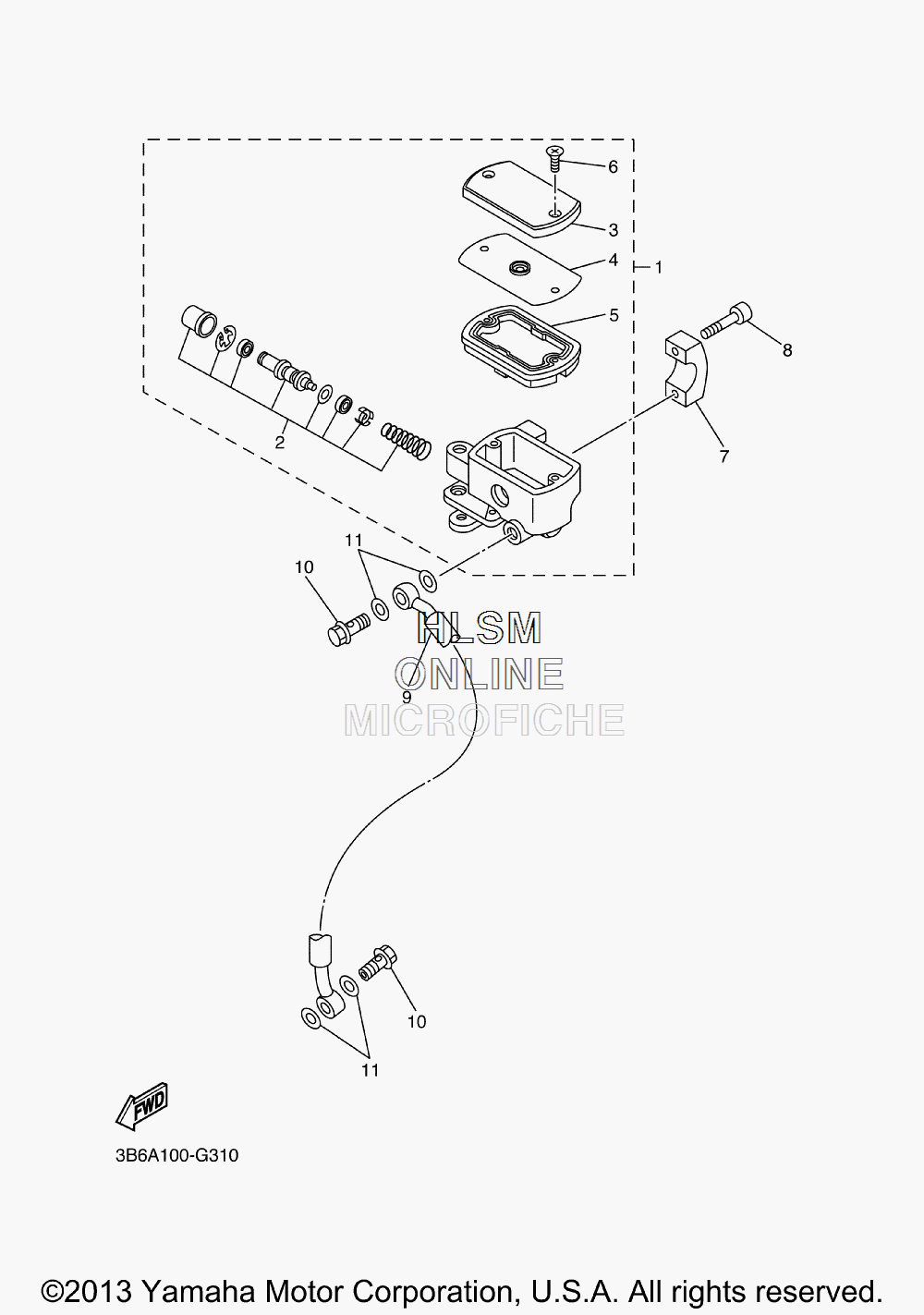

BRAKE - FRONT MASTER CYLINDER для Yamaha V STAR 650 CUSTOM - 2014 года выпуска`
-
№АртикулНазвание
-
13D8-25870-11-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
22KR-25807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
33D8-25852-10-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
43D8-25855-00-00 ......BUSH, DIAPHRAGM......BUSH, DIAPHRAGM
-
53D8-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
63D8-2589H-10-00 ...SCREW...SCREW
-
74TR-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
891314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
95KP-25872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1090401-10020-00 BOLT, UNIONBOLT, UNION
-
1190430-10005-00 GASKETGASKET
