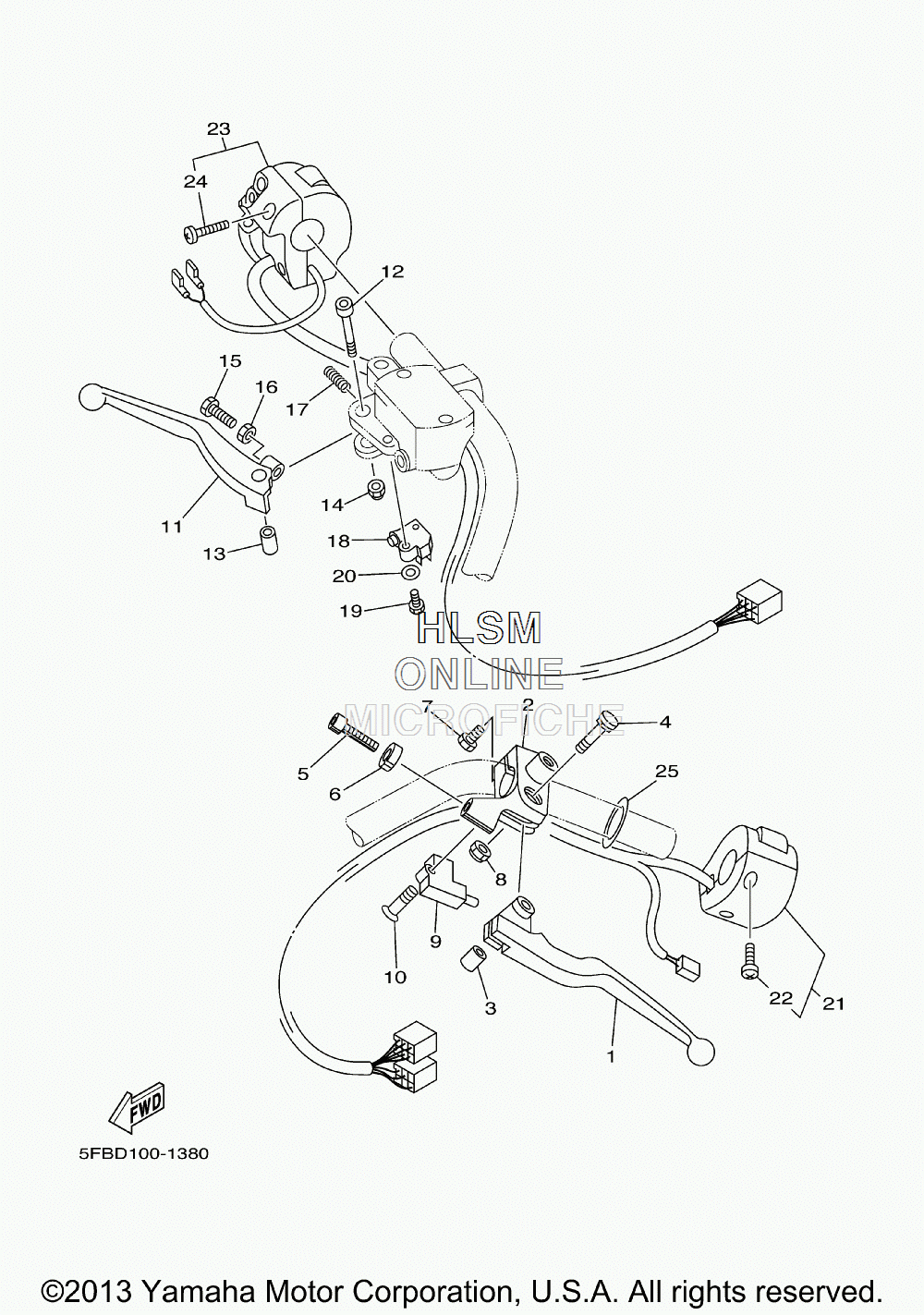

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha V STAR 650 CUSTOM - 2014 года выпуска`
-
№АртикулНазвание
-
14TR-83912-00-00 LEVER L CHROMELEVER L CHROME
-
24TR-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
34TR-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
44TR-83945-00-00 BOLT, LEVERBOLT, LEVER
-
590123-08046-00 BOLTBOLT
-
690179-08148-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
-
797024-06020-00 BOLTBOLT
-
895604-06100-00 NUT, UNUT, U
-
93YX-82917-01-00 SWITCHSWITCH
-
1098707-03020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
111FK-83922-00-00 LEVER 2LEVER 2
-
1290110-06074-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1336Y-83913-01-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
1495607-06100-00 NUT, UNUT, U
-
1590149-06131-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
1690170-06010-00 NUTNUT
-
1790501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1836Y-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1998507-04016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2092907-04600-00 WASHERWASHER
-
215FB-83973-30-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
2298580-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
235VN-83975-20-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
2498580-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2590202-26142-00 WASHER, PLATEWASHER, PLATE
