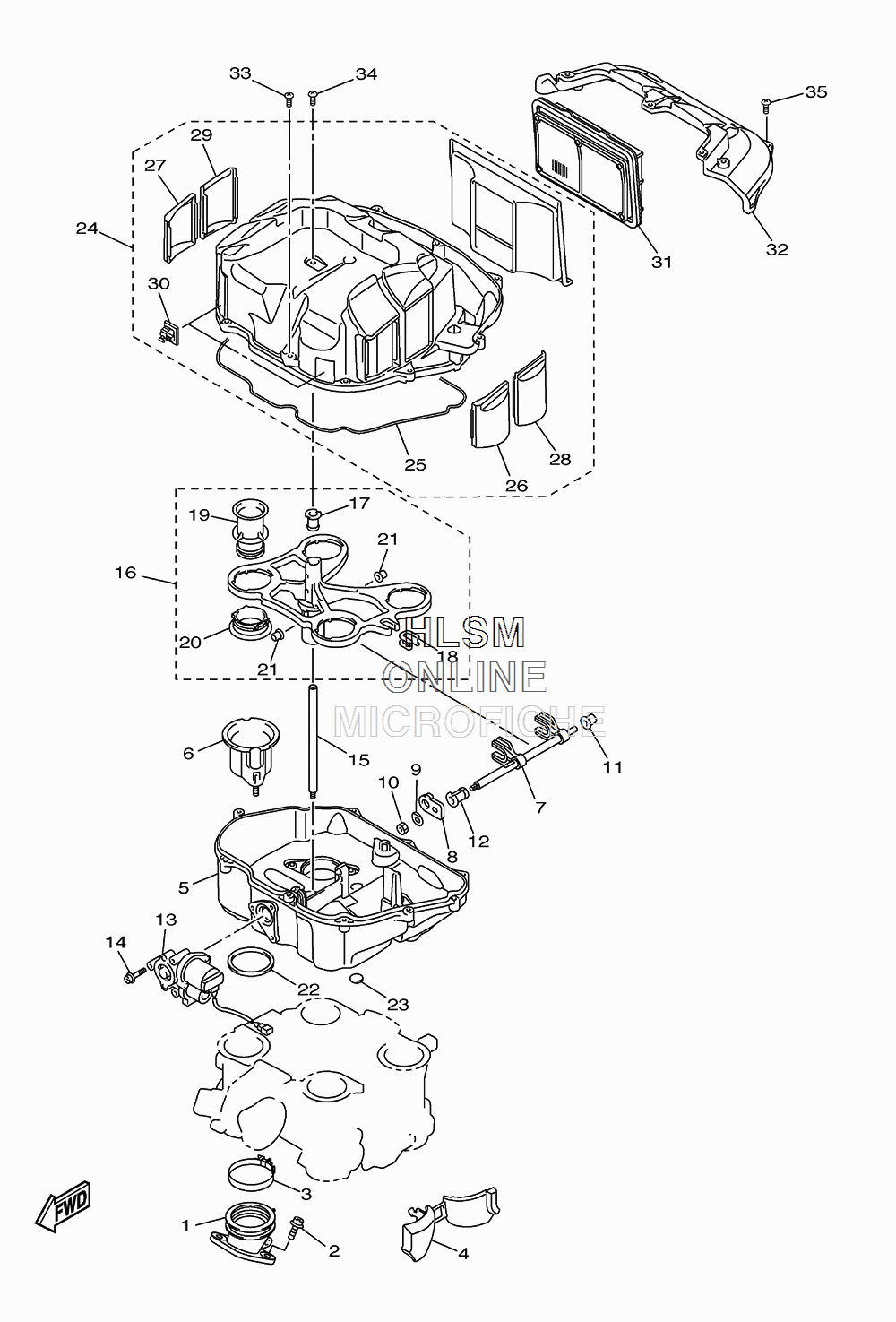

THROTTLE BODY ASSY. для Yamaha V MAX - 2013 года выпуска`
-
№АртикулНазвание
-
12S3-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
291312-06020-00 BOLTBOLT
-
32S3-11387-00-00 CLAMP, HOSE 1CLAMP, HOSE 1
-
42S3-13564-00-00 COVER, MANIFOLDCOVER, MANIFOLD
-
52S3-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
62S3-1440B-00-00 JOINT ASSYJOINT ASSY
-
72S3-1445B-00-00 LEVER 1LEVER 1
-
82S3-14548-00-00 PIN, FLOAT ARMPIN, FLOAT ARM
-
92S3-14475-00-00 WASHERWASHER
-
1095302-06700-00 NUTNUT
-
1190381-06002-00 BUSH, SOLIDBUSH, SOLID
-
122S3-1449B-00-00 BUSH, 3BUSH, 3
-
132S3-85870-00-00 GEARED MOTOR COMP. 2GEARED MOTOR COMP. 2
-
1490110-05045-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
152S3-14434-00-00 SEPERATOR, OILSEPERATOR, OIL
-
162S3-14459-00-00 HOLDER, GUIDEHOLDER, GUIDE
-
172S3-1447B-00-00 ...BUSH 1...BUSH 1
-
182S3-14473-00-00 ...GUIDE...GUIDE
-
192S3-14479-00-00 ...FUNNEL...FUNNEL
-
202S3-13631-00-00 ...SEAL, RUBBER 1...SEAL, RUBBER 1
-
2190381-08001-00 ...BUSH, SOLID...BUSH, SOLID
-
222S3-14416-00-00 GASKET, AIR CLEANERGASKET, AIR CLEANER
-
232S3-1442F-00-00 PROTECTORPROTECTOR
-
242S3-14408-00-00 AIR FILTER CASE COMP.AIR FILTER CASE COMP.
-
252S3-14452-00-00 ...SEAL...SEAL
-
262S3-1441A-00-00 ...COVER, CLEANER CASE 1...COVER, CLEANER CASE 1
-
272S3-1441E-00-00 ...COVER, CLEANER CASE 2...COVER, CLEANER CASE 2
-
282S3-1442A-00-00 ...COVER, CLEANER CASE 3...COVER, CLEANER CASE 3
-
292S3-1442E-00-00 ...COVER, CLEANER CASE 4...COVER, CLEANER CASE 4
-
3090464-14002-00 ...CLAMP...CLAMP
-
312S3-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
322S3-14437-00-00 DUCTDUCT
-
3398902-05020-00 SCREW, BINDSCREW, BIND
-
3490154-05037-00 SCREW, BINDINGSCREW, BINDING
-
3598902-05014-00 SCREW, BINDSCREW, BIND
