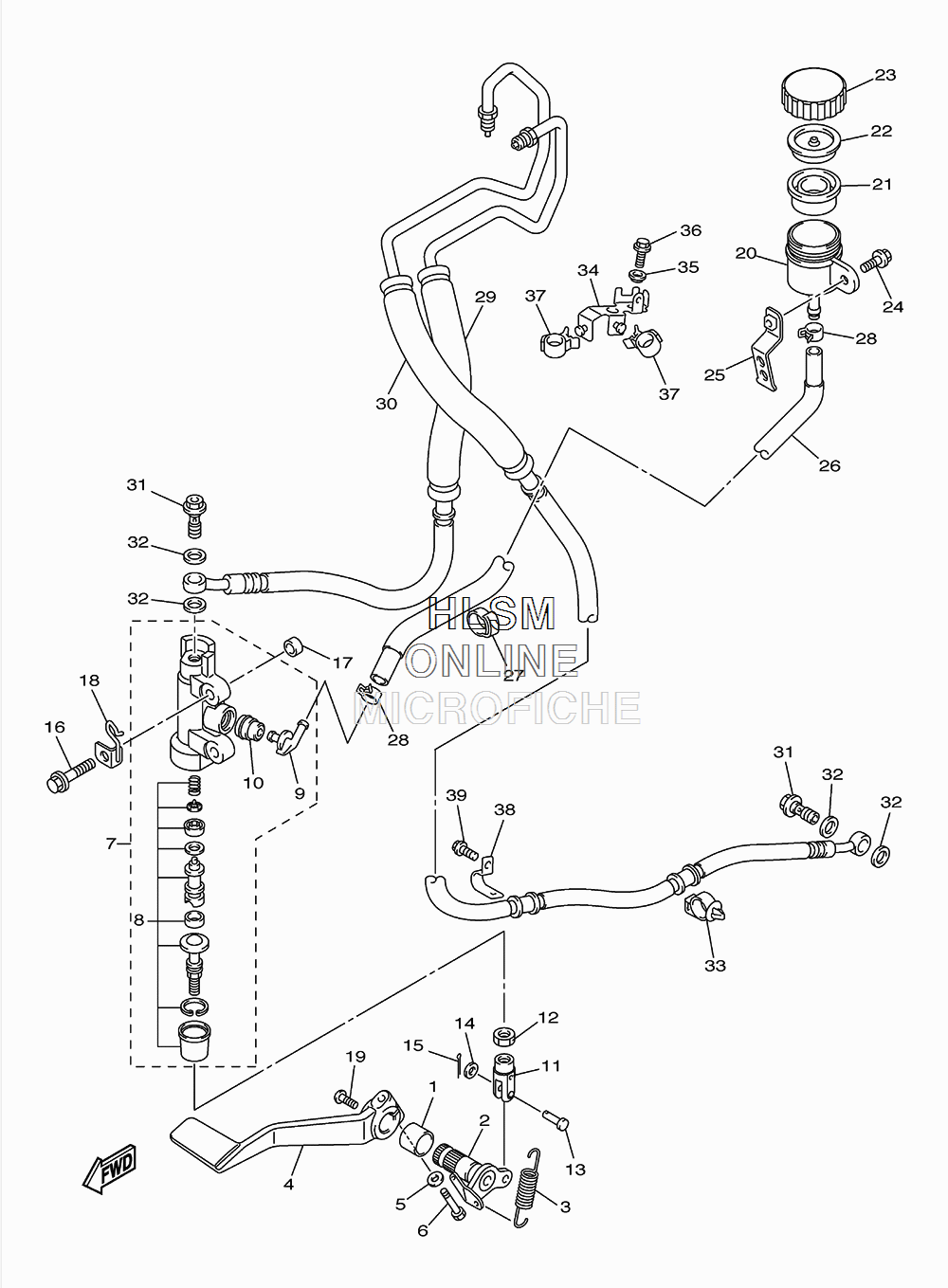

BRAKE - REAR MASTER CYLINDER для Yamaha V MAX - 2013 года выпуска`
-
№АртикулНазвание
-
190383-17001-00 BUSH, FORMEDBUSH, FORMED
-
22S3-27212-00-00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
390506-20028-00 SPRING, TENSIONSPRING, TENSION
-
42S3-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
592990-06600-00 WASHER, PLATEWASHER, PLATE
-
690109-06468-00 BOLTBOLT
-
72S3-2583V-00-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
85PS-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
92S3-2582A-00-00 ...JOINT...JOINT
-
104BP-2585F-01-00 ...O-RING...O-RING
-
115SL-27222-00-00 JOINTJOINT
-
1290170-08010-00 NUTNUT
-
1391701-06018-00 PINPIN
-
1492902-06200-00 WASHERWASHER
-
1591401-16012-00 PIN, COTTERPIN, COTTER
-
1690109-083G1-00 BOLTBOLT
-
1790387-08092-00 COLLARCOLLAR
-
182S3-27911-00-00 HOLDERHOLDER
-
1990110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
204P5-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
215SL-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
225SL-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
235SL-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
2490119-06116-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
252S3-2582E-00-00 HOLDER, RESERVE TANKHOLDER, RESERVE TANK
-
262S3-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2790464-16003-00 CLAMPCLAMP
-
2890467-12191-00 CLIPCLIP
-
292S3-2581J-00-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
302S3-2581K-00-00 HOSE, BRAKE 5HOSE, BRAKE 5
-
3190401-10172-00 BOLT, UNIONBOLT, UNION
-
3290430-10005-00 GASKETGASKET
-
3390464-20016-00 CLAMPCLAMP
-
342S3-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
3590387-06200-00 COLLARCOLLAR
-
3690105-06078-00 BOLT, FLANGEBOLT, FLANGE
-
3790464-15192-00 CLAMPCLAMP
-
382S3-21597-00-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
3995022-06010-00 BOLT, FLANGEBOLT, FLANGE
