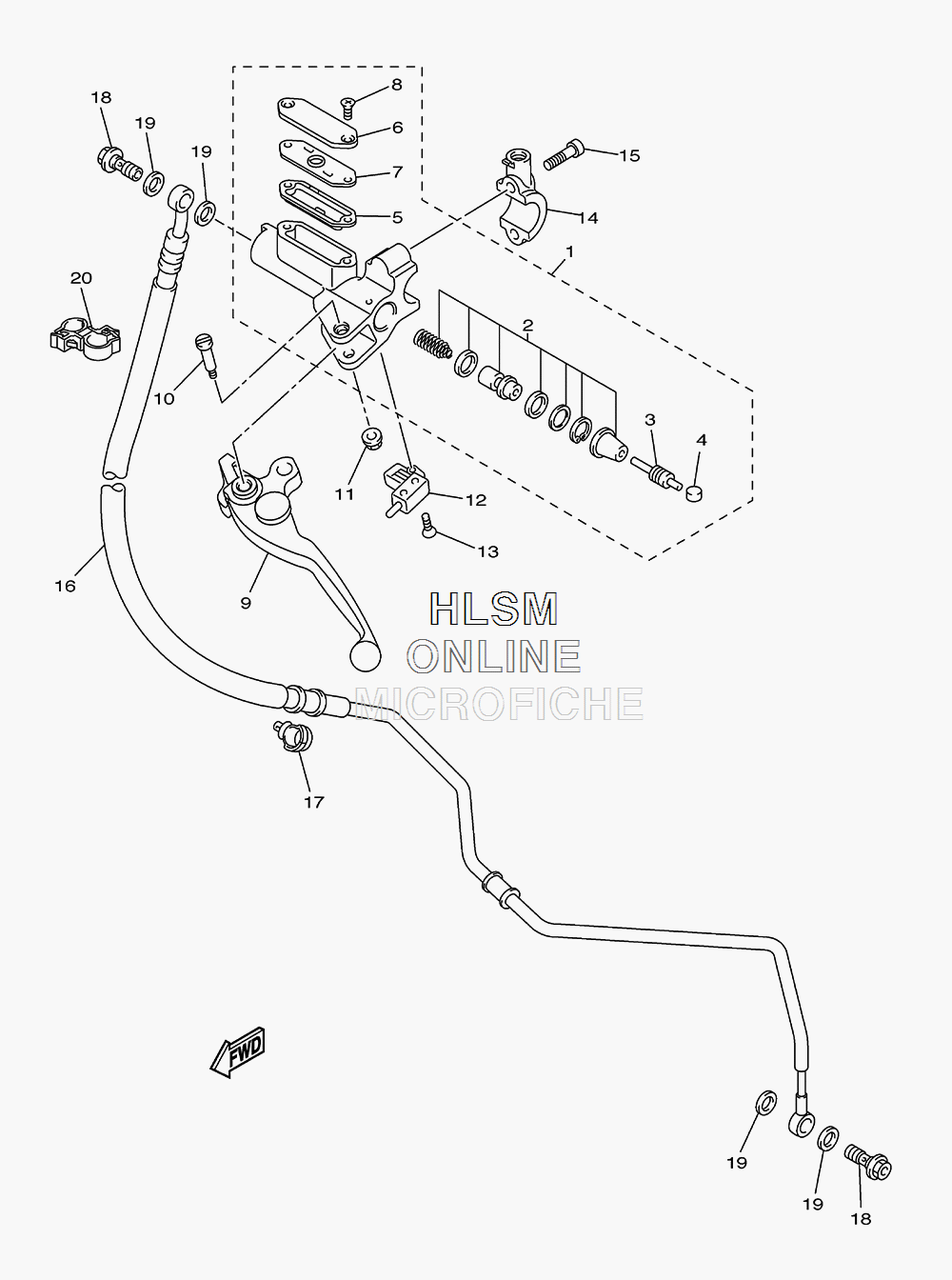

CLUTCH - MASTER CYLINDER W/ MIRROR для Yamaha V MAX - 2013 года выпуска`
-
№АртикулНазвание
-
12S3-W2645-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25JW-W0099-00-00 ...CYLINDER KIT, MASTER (CLUTCH...CYLINDER KIT, MASTER (CLUTCH
-
33GM-26464-00-00 ...ROD, PUSH...ROD, PUSH
-
43GM-26455-00-00 ...BUSH...BUSH
-
55YU-25854-50-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
65YU-25852-50-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
75YU-25855-50-00 ...BUSH,DIAPHRAGM...BUSH,DIAPHRAGM
-
898707-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
95YU-83912-11-00 LEVER 1LEVER 1
-
103FV-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
1195707-06500-00 NUT, FLANGENUT, FLANGE
-
123GM-83980-00-00 STOP SWITCH ASYSTOP SWITCH ASY
-
1398707-04016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
142S3-26393-00-00 HOLDERHOLDER
-
155VS-26332-00-00 BOLTBOLT
-
162S3-26470-00-00 HOSE, CLUTCHHOSE, CLUTCH
-
1790464-18002-00 CLAMPCLAMP
-
1890401-10172-00 BOLT, UNIONBOLT, UNION
-
1990430-10005-00 GASKETGASKET
-
2090464-16015-00 CLAMPCLAMP
