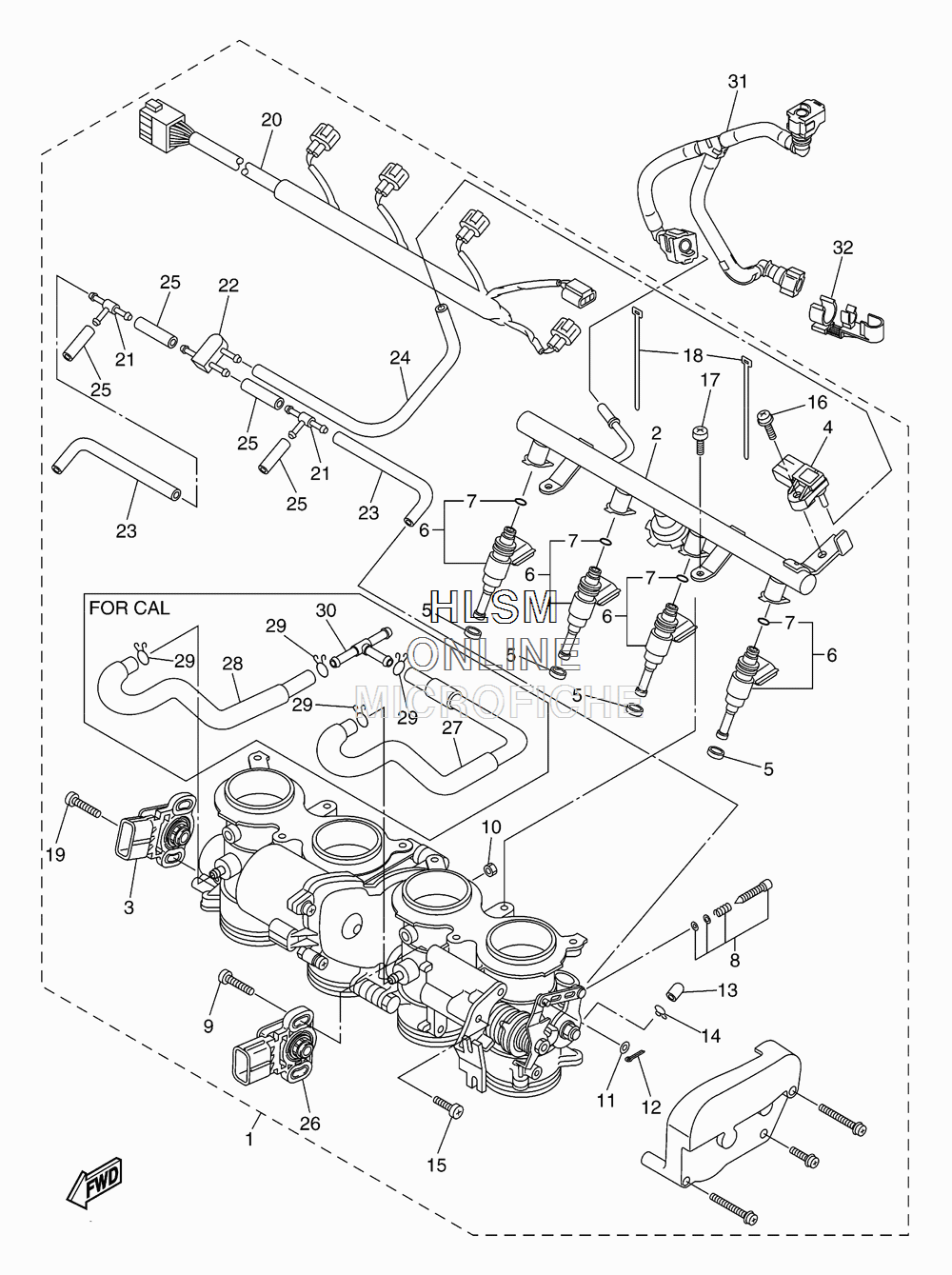

THROTTLE BODY ASSY. для Yamaha YZF-R6 (BLUISH WHITE COCKTAIL) - 2012 года выпуска`
-
№АртикулНазвание
-
113S-13750-00-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
113S-13750-10-00 THROTTLE BODY ASSY (FOR CALIF)THROTTLE BODY ASSY (FOR CALIF)
-
213S-13930-00-00 ...PIPE INLET ASSEMBLY...PIPE INLET ASSEMBLY
-
313S-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
42C0-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
58FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
62C0-13761-00-00 ...INJECTOR...INJECTOR
-
75PS-14147-00-00 ......O-RING......O-RING
-
82C0-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
95FL-14216-00-00 ...SCREW...SCREW
-
1095307-04700-00 ...NUT...NUT
-
1122U-14952-00-00 ...WASHER...WASHER
-
1291492-12010-00 ...PIN, COTTER...PIN, COTTER
-
13895-14169-00-00 ...CAP...CAP
-
148A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
1598507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
162C0-14216-00-00 ...SCREW...SCREW
-
1798507-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
184KM-14137-00-00 ...CLIP...CLIP
-
198CC-14216-10-00 ...SCREW...SCREW
-
2013S-82386-00-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
2168V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
223XV-14251-00-00 ...NIPPLE...NIPPLE
-
2368V-13533-00-00 ...HOSE, VACUUM SENSING 4...HOSE, VACUUM SENSING 4
-
242C0-13532-00-00 ...HOSE, VACUUM SENSING 3...HOSE, VACUUM SENSING 3
-
255FL-14348-10-00 ...PIPE 1...PIPE 1
-
2613S-85884-00-00 ...ACCELERATOR SENSOR ASSY...ACCELERATOR SENSOR ASSY
-
2713S-14465-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
2813S-14466-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
2990467-100A1-00 ...CLIP (CALIF ONLY)...CLIP (CALIF ONLY)
-
3090413-08012-00 ...WAY 3...WAY 3
-
3113S-13971-01-00 PIPE, FUEL 1PIPE, FUEL 1
-
3290464-16005-00 CLAMPCLAMP
