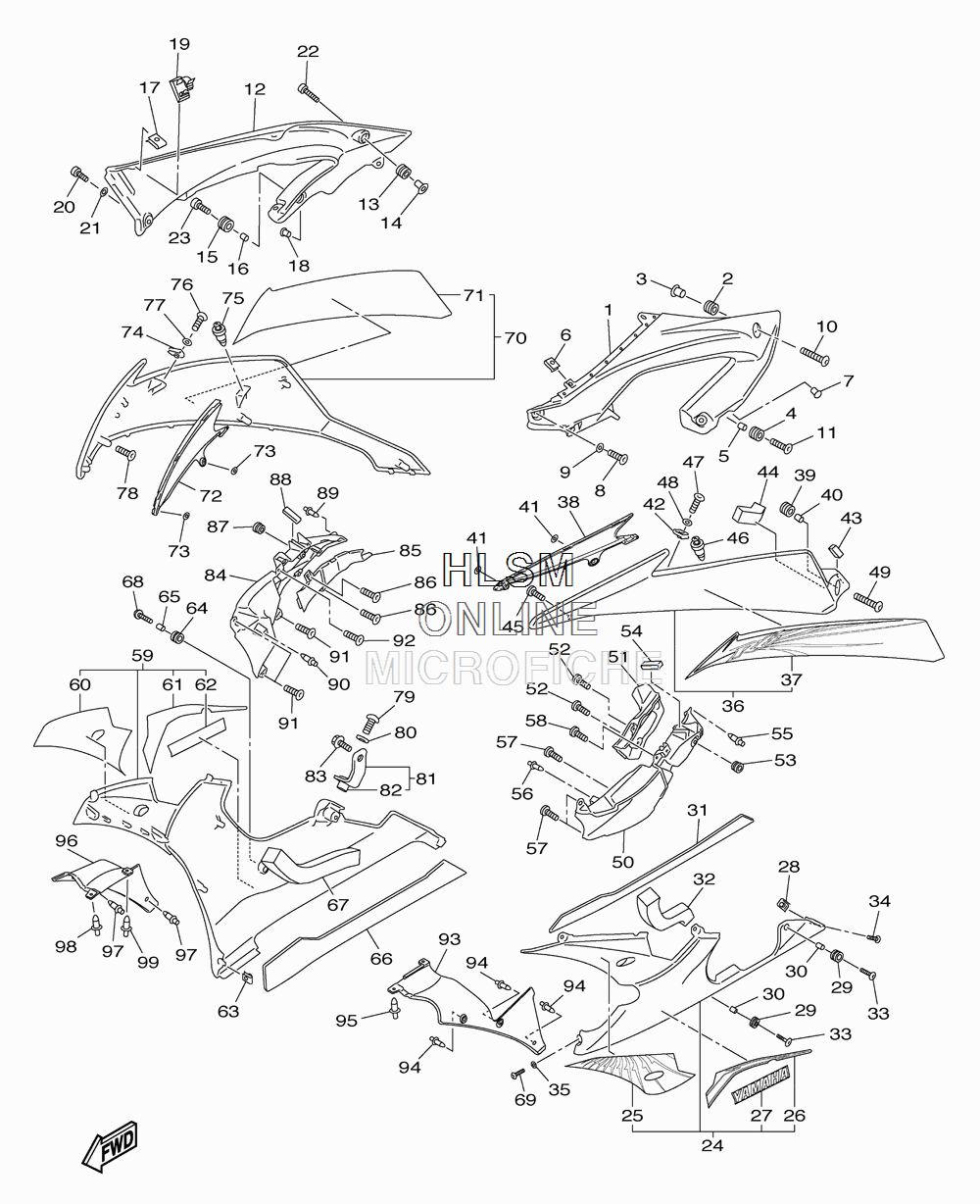

COWLING 2 для Yamaha YZF-R6 (BLUISH WHITE COCKTAIL) - 2012 года выпуска
-
№АртикулНазвание
-
113S-2117V-00-P1 COVER 7 (BLUISH WHITE COCKTAIL 1)COVER 7 (BLUISH WHITE COCKTAIL 1)
-
290480-12613-00 GROMMETGROMMET
-
390387-067K8-00 COLLARCOLLAR
-
490480-14003-00 GROMMETGROMMET
-
590387-06260-00 COLLARCOLLAR
-
690183-05076-00 NUT,SPRINGNUT,SPRING
-
790338-06134-00 PLUGPLUG
-
890110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990202-05180-00 WASHER, PLATEWASHER, PLATE
-
1090111-06063-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1190111-06040-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1213S-2117W-00-P1 COVER 8 (BLUISH WHITE COCKTAIL 1)COVER 8 (BLUISH WHITE COCKTAIL 1)
-
1390480-12613-00 GROMMETGROMMET
-
1490387-067K8-00 COLLARCOLLAR
-
1590480-14003-00 GROMMETGROMMET
-
1690387-06260-00 COLLARCOLLAR
-
1790183-05076-00 NUT,SPRINGNUT,SPRING
-
1890338-06134-00 PLUGPLUG
-
1990464-20014-00 CLAMPCLAMP
-
2090110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2190202-05180-00 WASHER, PLATEWASHER, PLATE
-
2290111-06063-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2390111-06040-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2413S-W2838-00-33 UNDER COVER COMP. 1 (YAMAHA BLACK)UNDER COVER COMP. 1 (YAMAHA BLACK)
-
251JS-283A1-30-00 ...GRAPHIC, UNDER COVER 1...GRAPHIC, UNDER COVER 1
-
261JS-283A3-00-00 ...GRAPHIC, UNDER COVER 3...GRAPHIC, UNDER COVER 3
-
271JS-2153E-20-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
2890183-05076-00 NUT,SPRINGNUT,SPRING
-
2990480-14003-00 GROMMETGROMMET
-
3090387-06260-00 COLLARCOLLAR
-
3113S-2838G-00-00 SEAT 1SEAT 1
-
3290520-50002-00 DAMPER, PLATEDAMPER, PLATE
-
3390111-06040-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
3490110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3590202-05180-00 WASHER, PLATEWASHER, PLATE
-
3613S-W283U-00-33 PANEL ASSY 1 (YAMAHA BLACK)PANEL ASSY 1 (YAMAHA BLACK)
-
371JS-28391-40-00 ...GRAPHIC 1...GRAPHIC 1
-
3813S-28219-00-00 COVER 1COVER 1
-
3990480-14003-00 GROMMETGROMMET
-
4090387-06260-00 COLLARCOLLAR
-
4190183-05M02-00 NUT, SPRINGNUT, SPRING
-
4290183-05076-00 NUT,SPRINGNUT,SPRING
-
4313S-28415-00-00 DAMPER 1DAMPER 1
-
4490520-50001-00 DAMPER, PLATEDAMPER, PLATE
-
4597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
4690269-07007-00 RIVETRIVET
-
4790110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4890202-05180-00 WASHER, PLATEWASHER, PLATE
-
4990111-06040-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
5013S-2137U-00-00 GUIDE, AIR 1GUIDE, AIR 1
-
5113S-2137K-00-00 GUIDE, AIR 3GUIDE, AIR 3
-
5297702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
5390480-01558-00 GROMMETGROMMET
-
5413S-28217-00-00 DAMPER 1DAMPER 1
-
5590269-06008-00 RIVETRIVET
-
5690269-06081-00 RIVETRIVET
-
5797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
5897702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
5913S-W2839-00-33 UNDER COVER COMP. 2 (YAMAHA BLACK)UNDER COVER COMP. 2 (YAMAHA BLACK)
-
601JS-283A2-30-00 ...GRAPHIC, UNDER COVER 2...GRAPHIC, UNDER COVER 2
-
611JS-283A4-00-00 ...GRAPHIC, UNDER COVER 4...GRAPHIC, UNDER COVER 4
-
621JS-2153E-20-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
6390183-05076-00 NUT, SPRINGNUT, SPRING
-
6490480-14003-00 GROMMETGROMMET
-
6590387-06260-00 COLLARCOLLAR
-
6613S-2848K-00-00 SEAT 2SEAT 2
-
6713S-2847R-00-00 DAMPER 10DAMPER 10
-
6890111-06040-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
6990110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7013S-W283V-00-33 PANEL ASSY 2 (YAMAHA BLACK)PANEL ASSY 2 (YAMAHA BLACK)
-
711JS-28392-40-00 ...GRAPHIC 2...GRAPHIC 2
-
7213S-28229-00-00 COVER 2COVER 2
-
7390183-05M02-00 NUT, SPRINGNUT, SPRING
-
7490183-05076-00 NUT, SPRINGNUT, SPRING
-
7590269-07007-00 RIVETRIVET
-
7690110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7790202-05180-00 WASHER, PLATEWASHER, PLATE
-
7897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
7990109-06207-00 BOLTBOLT
-
8090202-10024-00 WASHER, PLATEWASHER, PLATE
-
8113S-2836G-00-00 BRACKET 4BRACKET 4
-
8290179-06059-00 ...NUT...NUT
-
8390105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
8413S-2137V-00-00 GUIDE, AIR 2GUIDE, AIR 2
-
8513S-2137L-00-00 GUIDE, AIR 4GUIDE, AIR 4
-
8697702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
8790480-01558-00 GROMMETGROMMET
-
8813S-28217-00-00 DAMPER 1DAMPER 1
-
8990269-06008-00 RIVETRIVET
-
9090269-06081-00 RIVETRIVET
-
9197707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
9297702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
9313S-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
9490269-06008-00 RIVETRIVET
-
9590269-06002-00 RIVETRIVET
-
9613S-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
9790269-06008-00 RIVETRIVET
-
9890269-06002-00 RIVETRIVET
-
9990269-06008-00 RIVETRIVET
