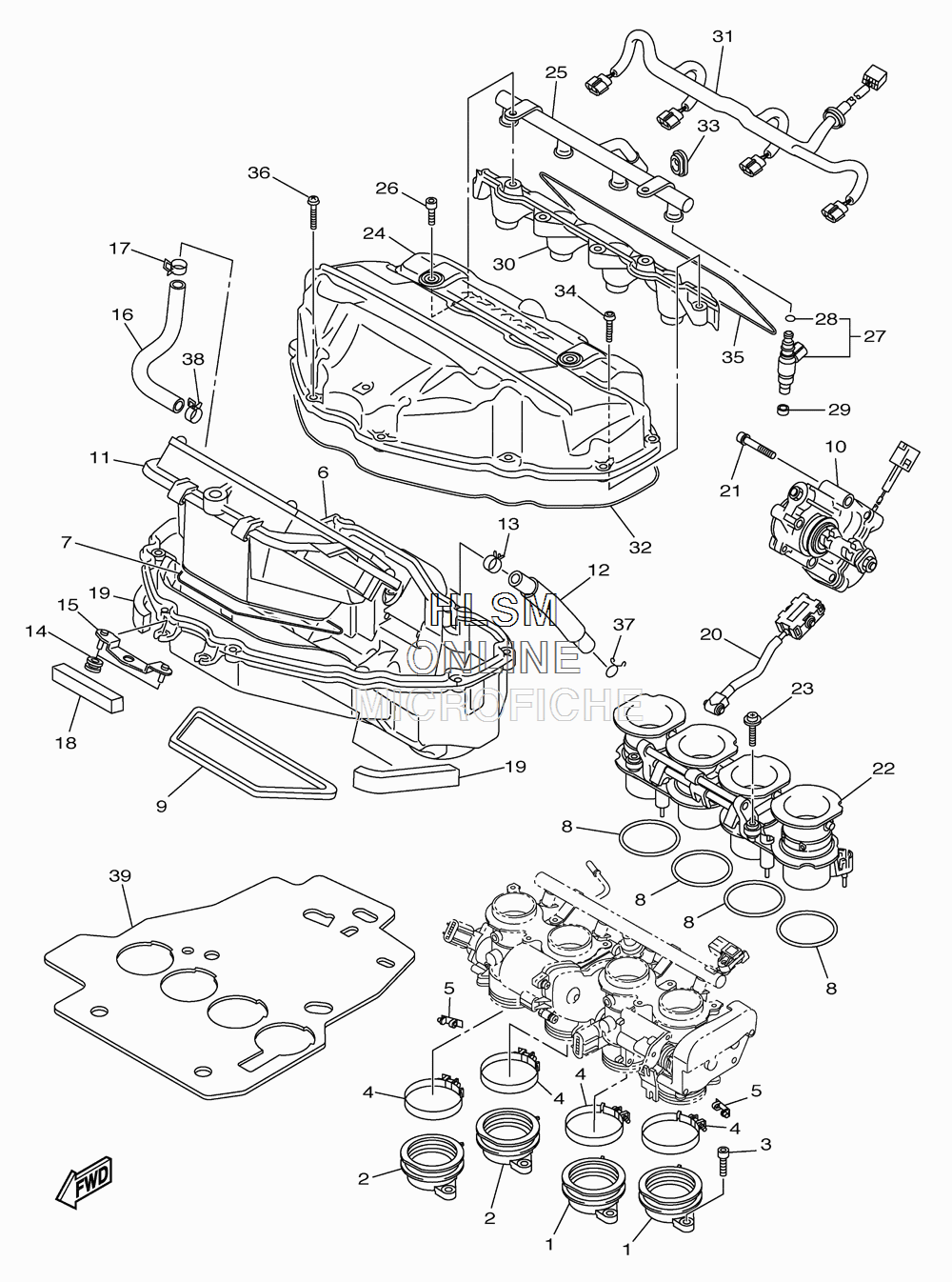

AIR CLEANER W/ INTAKE для Yamaha YZF-R6 (BLUISH WHITE COCKTAIL) - 2012 года выпуска`
-
№АртикулНазвание
-
12C0-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
22C0-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
391312-06016-00 BOLTBOLT
-
490450-56007-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
52C0-13881-00-00 COVER 1COVER 1
-
613S-14411-01-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
713S-14462-00-00 SEALSEAL
-
813S-14457-00-00 SEALSEAL
-
92C0-14467-00-00 SEALSEAL
-
1013S-85870-00-00 GEARED MOTOR COMP. 2GEARED MOTOR COMP. 2
-
1113S-14450-30-00 ELEMENT ASSY, AIR CLEANERELEMENT ASSY, AIR CLEANER
-
1213S-15373-00-00 PIPE, BREATHERPIPE, BREATHER
-
1390467-15001-00 CLIPCLIP
-
1490480-08264-00 GROMMETGROMMET
-
1513S-14498-00-00 STAY 1STAY 1
-
1613S-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
1790467-180A3-00 CLIPCLIP
-
182C0-14409-00-00 DAMPERDAMPER
-
192C0-14425-00-00 DAMPER 1DAMPER 1
-
2013S-14490-10-00 SHAFT ASSYSHAFT ASSY
-
2190110-05047-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2213S-1440B-10-00 JOINT ASSYJOINT ASSY
-
2390159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2413S-14421-11-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
2513S-13938-00-00 PIPEPIPE
-
2690111-06064-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2713S-13761-00-00 INJECTORINJECTOR
-
285PS-14147-00-00 ...O-RING...O-RING
-
2990430-09002-00 GASKETGASKET
-
3013S-13767-01-00 CAP, INJECTORCAP, INJECTOR
-
3113S-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
322C0-14452-00-00 SEALSEAL
-
3313S-14445-00-00 GROMMETGROMMET
-
3492012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3513S-1446R-00-00 SEALSEAL
-
3698902-05020-00 SCREW, BINDSCREW, BIND
-
3790467-14015-00 CLIPCLIP
-
3890467-180A3-00 CLIPCLIP
-
392C0-12682-01-00 PROTECTOR, HEATPROTECTOR, HEAT
