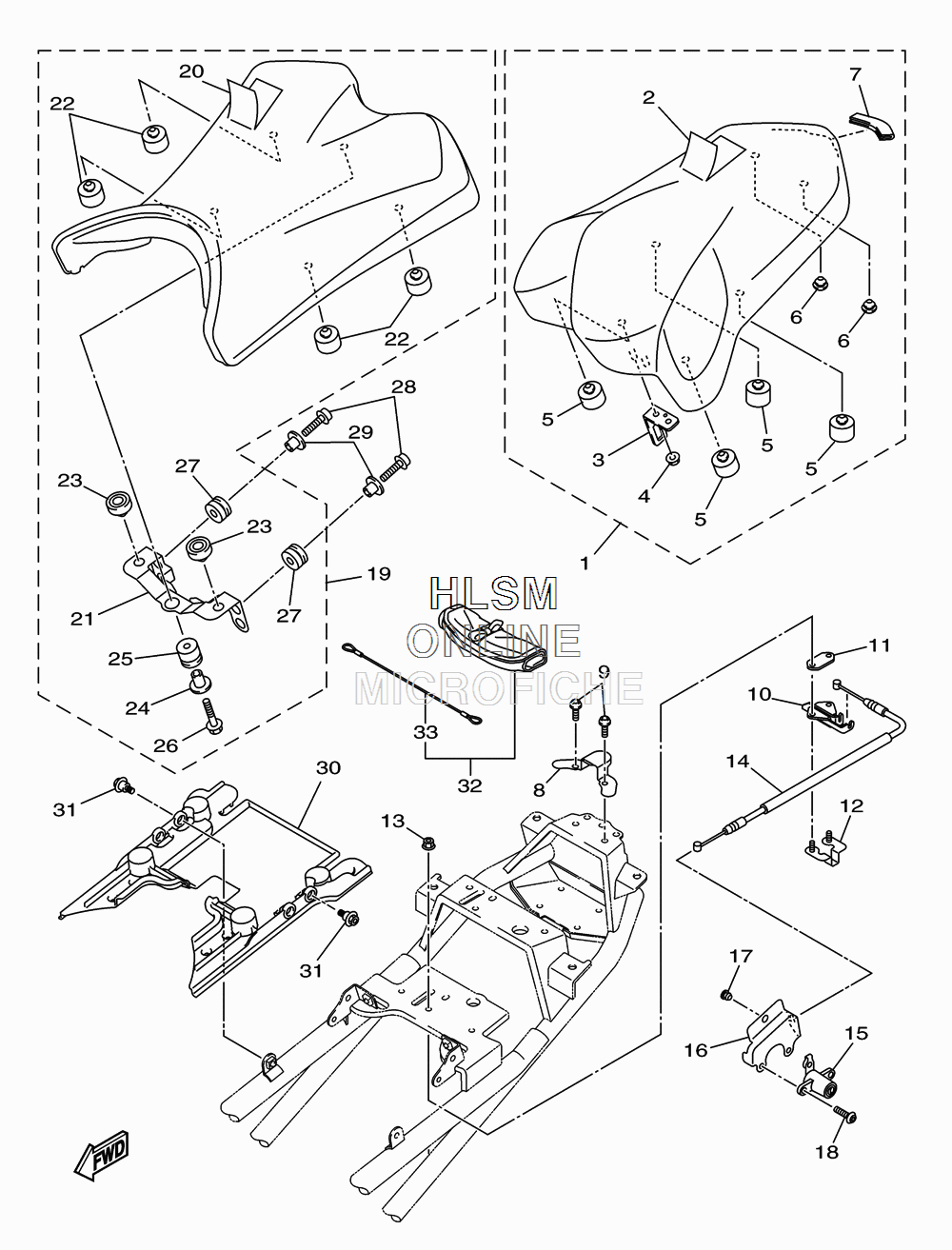

SEAT для Yamaha FZ6R (BLACK METALLIC X) - 2012 года выпуска`
-
№АртикулНазвание
-
136P-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
236P-2470H-00-00 ...SEAT COVER COMP, 2...SEAT COVER COMP, 2
-
34NK-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
495702-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
54D9-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
690338-07043-00 ...PLUG, SPEC'L SHAPE...PLUG, SPEC'L SHAPE
-
736P-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
836P-24728-00-00 BRACKET, SEATBRACKET, SEAT
-
992012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1050W-24780-01-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1120S-24792-00-00 PLATEPLATE
-
1236P-2478X-00-00 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
1395702-06500-00 NUT, FLANGENUT, FLANGE
-
145JW-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
152TV-W2470-00-00 ROTOR SETROTOR SET
-
1620S-2117K-00-00 STAY, LOCKSTAY, LOCK
-
1790338-07043-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
1890149-06081-00 SCREWSCREW
-
1936P-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
2036P-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
2136P-24718-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
224D9-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
232GH-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
2490387-06091-00 ...COLLAR...COLLAR
-
2590480-15M06-00 ...GROMMET...GROMMET
-
2690105-06122-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2790480-14016-00 ...GROMMET...GROMMET
-
2890110-06172-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2990387-077M3-00 COLLARCOLLAR
-
3036P-2475B-00-00 SEAT BASE, UNDERSEAT BASE, UNDER
-
3190109-06236-00 BOLTBOLT
-
3220S-28100-00-00 TOOL KITTOOL KIT
-
3320S-21308-00-00 ...HELMET HANGER...HELMET HANGER
