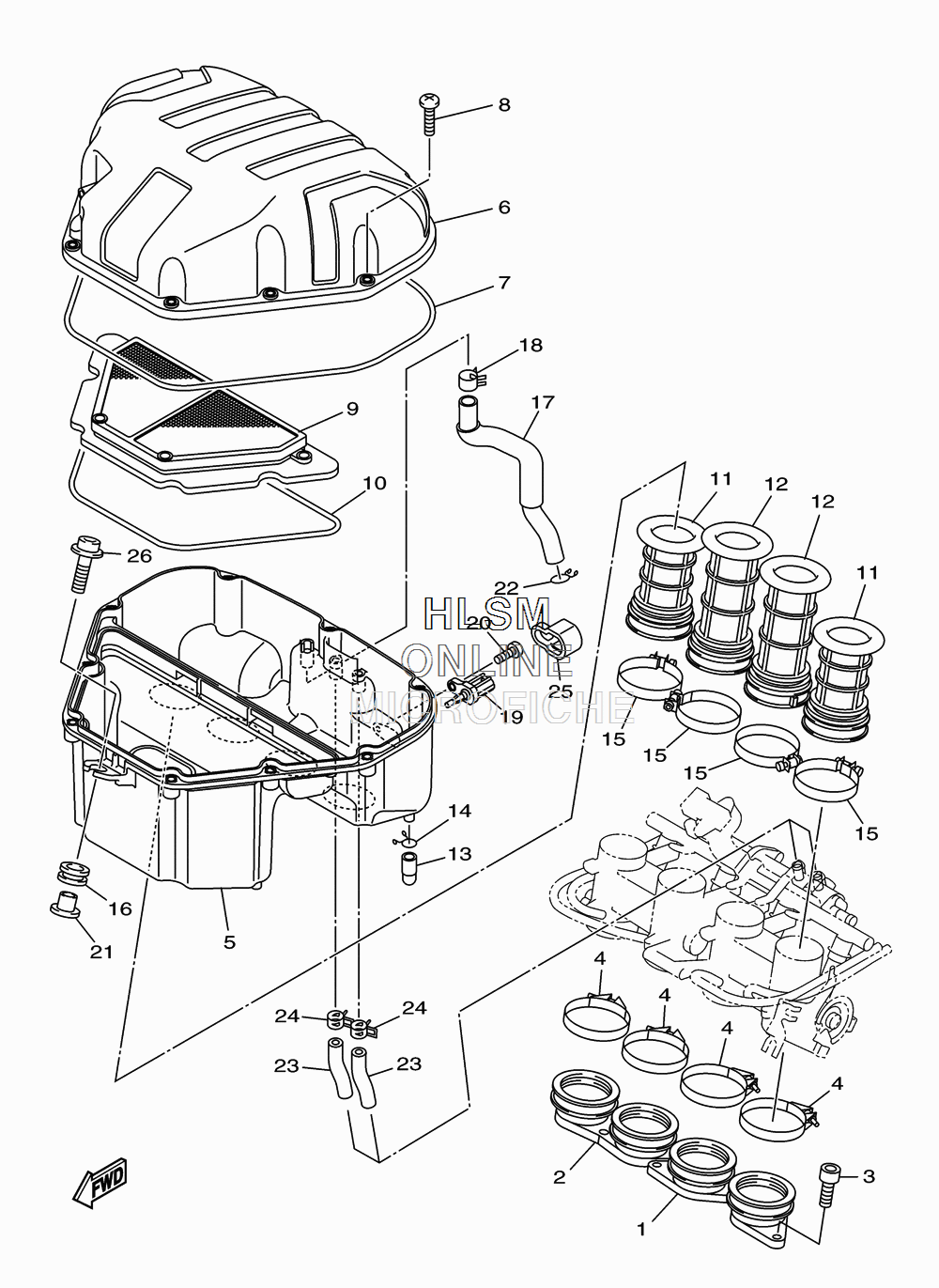

AIR CLEANER W/ INTAKE для Yamaha FZ6R (BLACK METALLIC X) - 2012 года выпуска`
-
№АртикулНазвание
-
120S-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
220S-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
391312-06020-00 BOLTBOLT
-
490450-63006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
520S-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
620S-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
720S-14452-00-00 SEALSEAL
-
898902-05020-00 SCREW, BINDSCREW, BIND
-
920S-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1020S-14457-00-00 SEALSEAL
-
1120S-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1220S-14463-00-00 JOINT, AIR CLEANER 2JOINT, AIR CLEANER 2
-
134D9-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
1490467-10041-00 CLIPCLIP
-
1590450-53007-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1690480-12314-00 GROMMETGROMMET
-
1720S-15373-00-00 PIPE, BREATHERPIPE, BREATHER
-
1890467-15001-00 CLIPCLIP
-
198FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2098902-05012-00 SCREW, BINDSCREW, BIND
-
2190387-06205-00 COLLARCOLLAR
-
2290467-14015-00 CLIPCLIP
-
235VX-14148-01-00 PIPEPIPE
-
2490467-17003-00 CLIPCLIP
-
2520S-1445C-00-00 HOLDERHOLDER
-
2690110-06233-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
