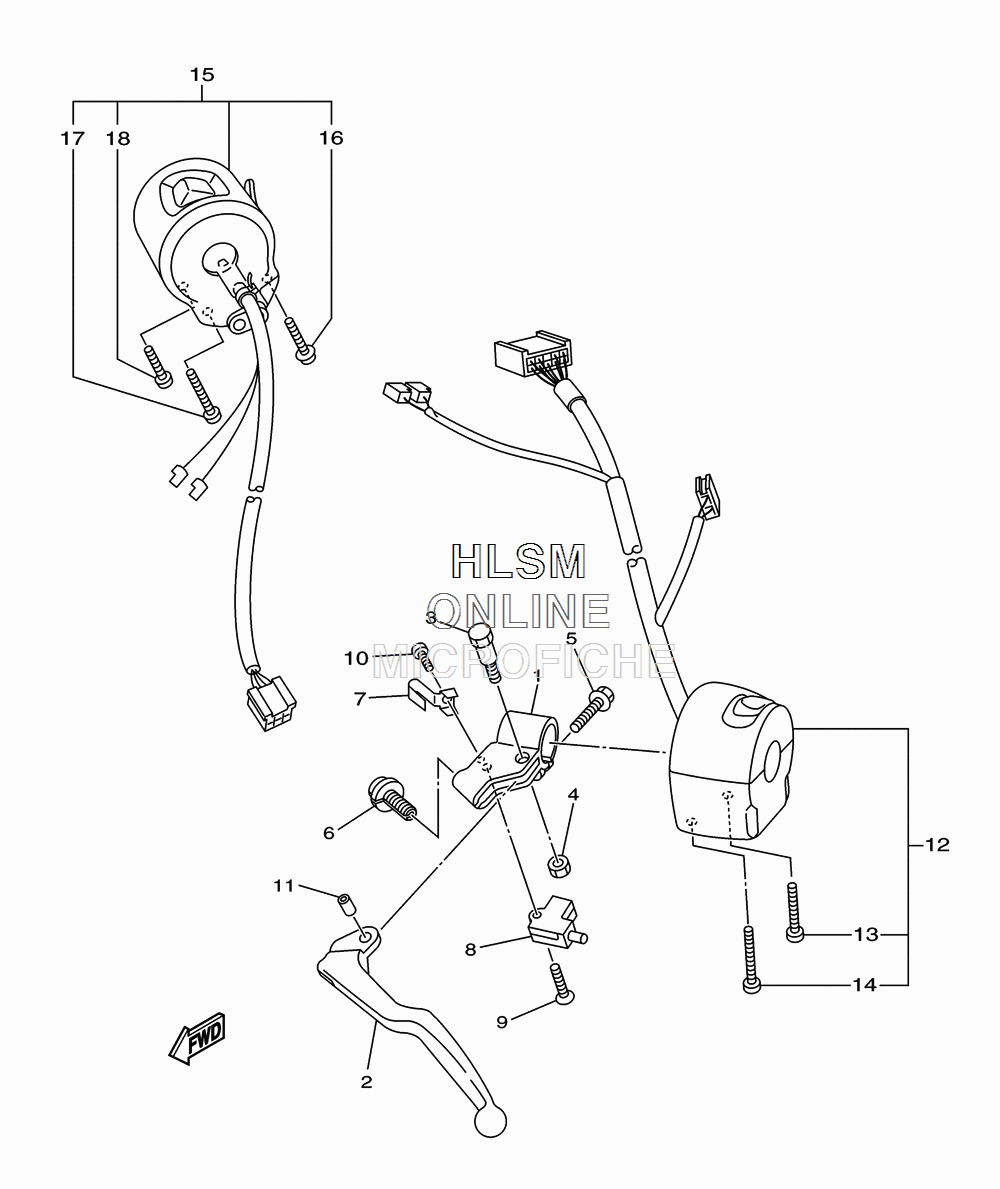

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha FZ6R (BLACK METALLIC X) - 2012 года выпуска
-
№АртикулНазвание
-
14XV-82911-10-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
25EB-83912-03-00 LEVER 1LEVER 1
-
32C0-83945-00-00 BOLT, LEVERBOLT, LEVER
-
495607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
595027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
65LV-83951-00-00 BOLT, CABLE ADJUSTINGBOLT, CABLE ADJUSTING
-
74XV-83929-00-00 PLATE, SPRINGPLATE, SPRING
-
83YX-82917-01-00 SWITCHSWITCH
-
998704-03020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1098507-04010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
115JJ-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
1236P-83963-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1398507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1498507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
155VX-83975-01-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
1697607-05255-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
1798507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1898507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
