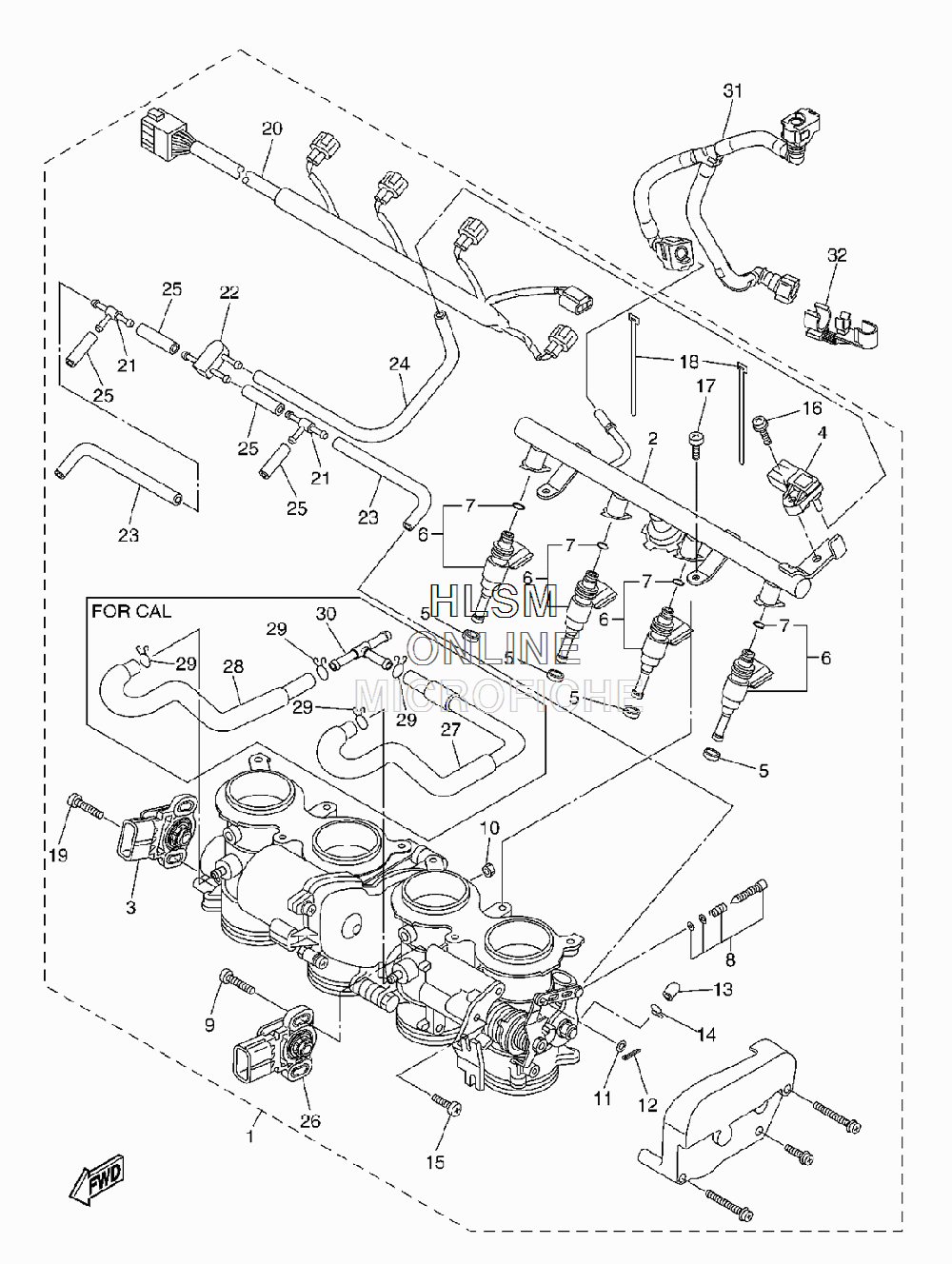

AIR CLEANER W/ INTAKE для Yamaha YZF-R6 - 2009 года выпуска`
-
№АртикулНазвание
-
113S-13750-00-00 THROTTLE BODY ASSY Y (13SE)THROTTLE BODY ASSY Y (13SE)
-
113S-13750-10-00 THROTTLE BODY ASSY YC (13SF) (CALIF ONLY)THROTTLE BODY ASSY YC (13SF) (CALIF ONLY)
-
213S-13930-00-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
313S-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
42C0-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
58FP-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
62C0-13761-00-00 INJECTORINJECTOR
-
75PS-14147-00-00 O-RINGO-RING
-
82C0-14105-00-00 PILOT SCREW SETPILOT SCREW SET
-
95FL-14216-00-00 SCREWSCREW
-
1095307-04700-00 NUTNUT
-
1122U-14952-00-00 WASHERWASHER
-
1291492-12010-00 PIN, COTTERPIN, COTTER
-
13895-14169-00-00 CAPCAP
-
148A7-14139-00-00 CLIP, PIPECLIP, PIPE
-
1598507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
162C0-14216-00-00 SCREWSCREW
-
1798507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
184KM-14137-00-00 CLIPCLIP
-
198CC-14216-10-00 SCREWSCREW
-
2013S-82386-00-00 EXTENSION, WIRE HARNESSEXTENSION, WIRE HARNESS
-
2168V-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
223XV-14251-00-00 NIPPLENIPPLE
-
2368V-13533-00-00 HOSE, VACUUM SENSING 4HOSE, VACUUM SENSING 4
-
242C0-13532-00-00 HOSE, VACUUM SENSING 3HOSE, VACUUM SENSING 3
-
255FL-14348-10-00 PIPE 1PIPE 1
-
2613S-85884-00-00 ACCELERATOR SENSOR ASSYACCELERATOR SENSOR ASSY
-
2713S-14465-00-00 PIPEPIPE
-
2813S-14466-00-00 PIPEPIPE
-
2990467-100A1-00 CLIPCLIP
-
3090413-08012-00 WAY 3WAY 3
-
3113S-13971-01-00 PIPE, FUEL 1PIPE, FUEL 1
-
3290464-16005-00 CLAMPCLAMP
