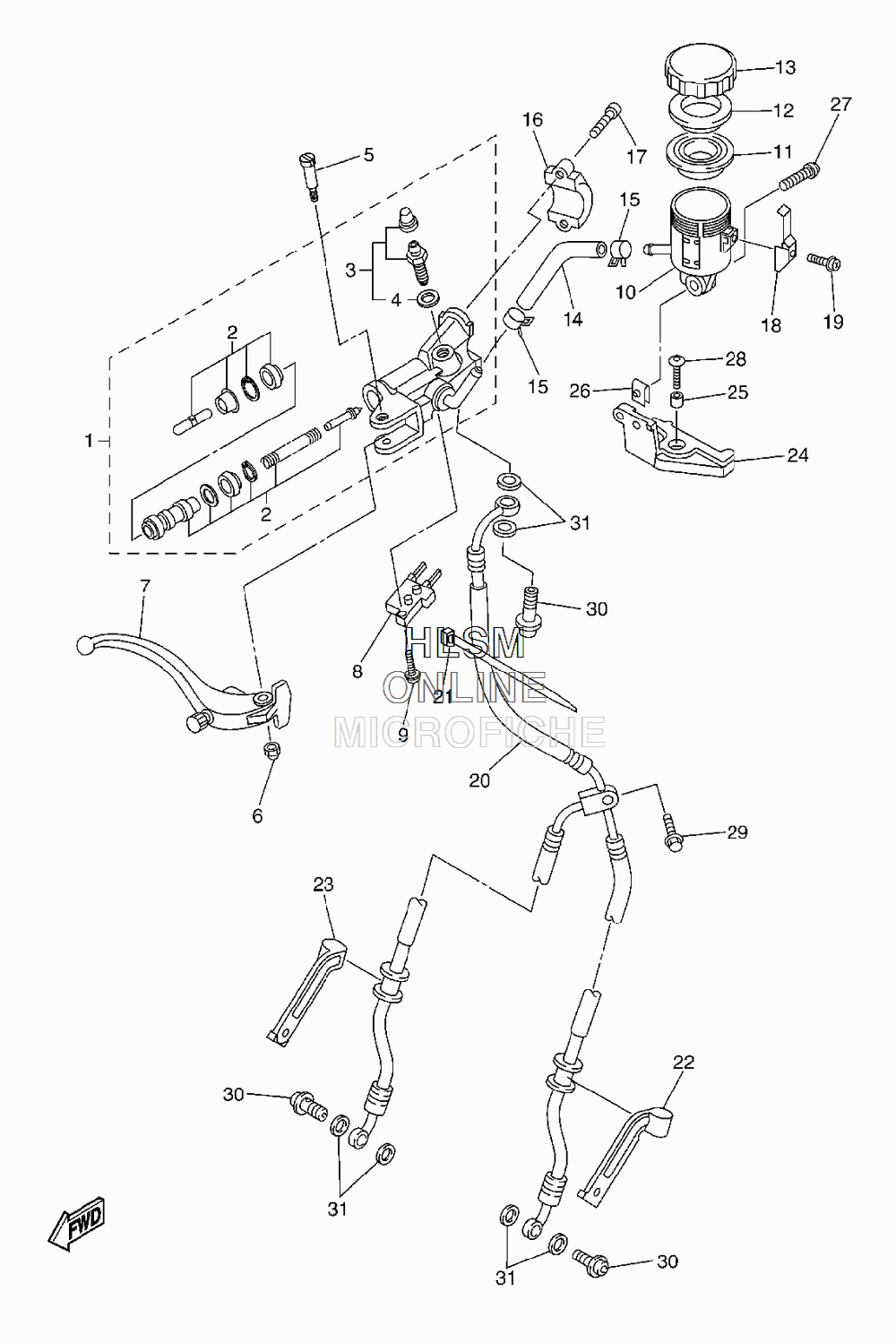

BRAKE - FRONT MASTER CYLINDER для Yamaha YZF-R6 - 2009 года выпуска`
-
№АртикулНазвание
-
15SL-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
22S3-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
35VY-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
45VY-25975-00-00 SEAL 1SEAL 1
-
55VY-2589F-01-00 BOLT, LEVERBOLT, LEVER
-
65VS-2586F-00-00 NUT, COVERNUT, COVER
-
75SL-83922-10-00 LEVER 2LEVER 2
-
84HM-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
95VS-2585H-00-00 SCREW, SETSCREW, SET
-
105SL-25894-20-00 TANK, RESERVOIRTANK, RESERVOIR
-
115VY-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
125VY-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
135VY-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
1413S-2589E-00-00 HOSEHOSE
-
1590467-120A3-00 CLIPCLIP
-
165VS-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
175VS-26332-00-00 BOLTBOLT
-
185VY-2589G-00-00 HOLDERHOLDER
-
195VY-2589H-00-00 SCREWSCREW
-
2013S-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
213MA-82591-00-00 BANDBAND
-
222C0-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2313S-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2413S-26292-00-00 STAYSTAY
-
2590387-06057-00 COLLARCOLLAR
-
2690183-050A0-00 NUT, SPRINGNUT, SPRING
-
2790111-05025-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2890111-06041-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2990105-06041-00 BOLT, FLANGEBOLT, FLANGE
-
3090401-10172-00 BOLT, UNIONBOLT, UNION
-
3190430-10005-00 GASKETGASKET
