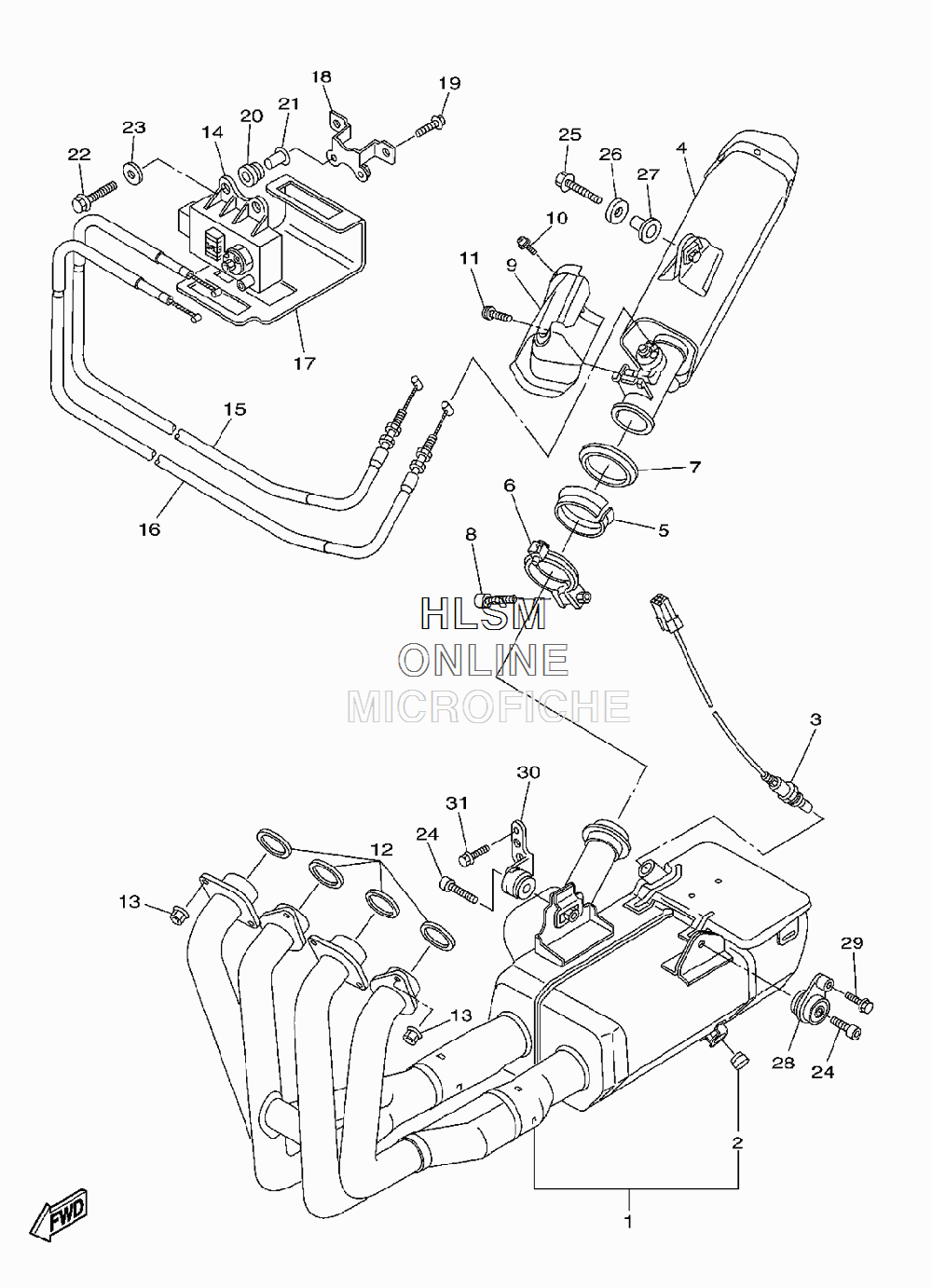

EXHAUST для Yamaha YZF-R6 - 2009 года выпуска`
-
№АртикулНазвание
-
113S-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
24FM-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
313S-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
413S-14753-10-00 SILENCER, EXHAUSTSILENCER, EXHAUST
-
52C0-14618-00-00 RING, STOPPERRING, STOPPER
-
62C0-14725-00-00 BAND, MUFFLERBAND, MUFFLER
-
72C0-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
891314-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
913S-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
1090111-06099-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1190111-06071-00 BOLTBOLT
-
124FM-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1390179-08410-00 NUTNUT
-
142C0-85820-00-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
1513S-1133E-01-00 CABLE, PULLEY 1CABLE, PULLEY 1
-
1613S-1133F-01-00 CABLE, PULLEY 2CABLE, PULLEY 2
-
172C0-2177F-00-00 COVERCOVER
-
182C0-2116J-00-00 BRACKET 7BRACKET 7
-
1995027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2090480-14005-00 GROMMETGROMMET
-
2190387-063E6-00 COLLARCOLLAR
-
2295827-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2390201-06M31-00 WASHER, PLATEWASHER, PLATE
-
2491314-08035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590105-08063-00 BOLT, FLANGEBOLT, FLANGE
-
2690201-087G2-00 WASHER, PLATEWASHER, PLATE
-
2790387-08021-00 COLLARCOLLAR
-
2813S-21446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
2990105-08054-00 BOLT, FLANGEBOLT, FLANGE
-
3013S-21445-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
3190105-08171-00 BOLT, FLANGEBOLT, FLANGE
