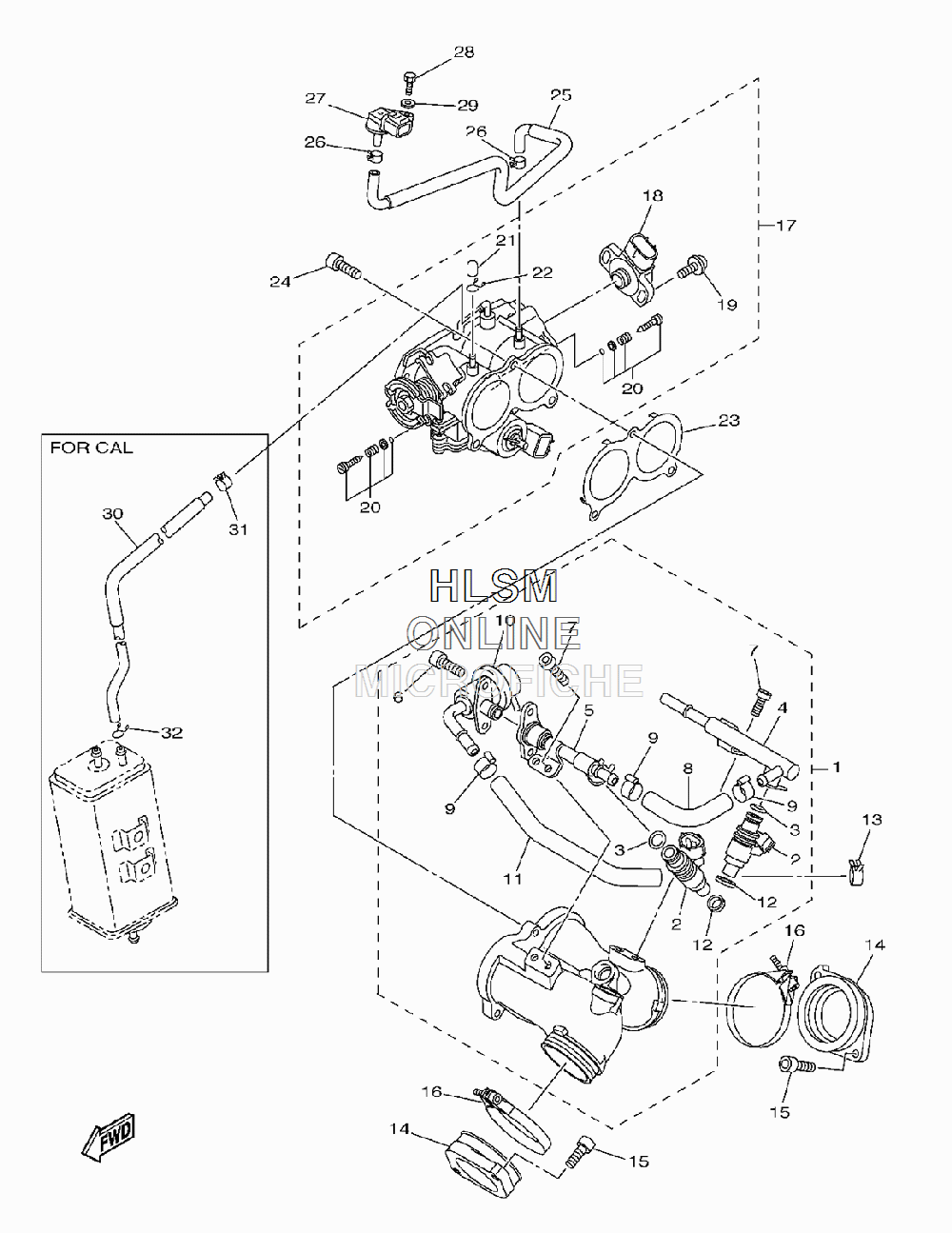

THROTTLE BODY ASSY. для Yamaha V STAR 950 - 2009 года выпуска`
-
№АртикулНазвание
-
15S7-13590-00-00 CARBURETOR JOINT ASSYCARBURETOR JOINT ASSY
-
25S7-13761-00-00 INJECTORINJECTOR
-
35PS-14147-00-00 O-RINGO-RING
-
45S7-14349-00-00 PIPEPIPE
-
55S7-14348-00-00 PIPE 1PIPE 1
-
691312-05010-00 BOLTBOLT
-
790110-06168-00 BOLTBOLT
-
85S7-13926-00-00 HOSEHOSE
-
968V-24387-00-00 CLIPCLIP
-
105S7-13906-00-00 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
115S7-24312-00-00 PIPE 2PIPE 2
-
128FP-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
1390467-12003-00 CLIPCLIP
-
145S7-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
1591312-06020-00 BOLT (3JB)BOLT (3JB)
-
1690450-54006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
175S7-13750-00-00 THROTTLE BODY ASSY U49 (YB)THROTTLE BODY ASSY U49 (YB)
-
175S7-13750-10-00 THROTTLE BODY ASSY FOR CALIFORNIA (YCB)THROTTLE BODY ASSY FOR CALIFORNIA (YCB)
-
188GL-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
194KM-24453-00-00 SCREWSCREW
-
203D8-14104-00-00 AIR SCREW SETAIR SCREW SET
-
21895-14169-00-00 CAPCAP
-
228A7-14139-00-00 CLIP, PIPECLIP, PIPE
-
233D8-14467-00-00 SEALSEAL
-
2491312-06020-00 BOLT (3JB)BOLT (3JB)
-
255S7-13895-00-00 HOSE, AIRHOSE, AIR
-
2690467-07093-00 CLIPCLIP
-
275S7-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
2897002-05020-00 BOLTBOLT
-
2992902-05600-00 WASHERWASHER
-
305S7-14148-00-00 PIPEPIPE
-
3190467-09037-00 CLIP (CALIFORNIA) (YCB)CLIP (CALIFORNIA) (YCB)
-
3290467-09103-00 CLIP,SCISSOR (CALIFORNIA) (YCB)CLIP,SCISSOR (CALIFORNIA) (YCB)
