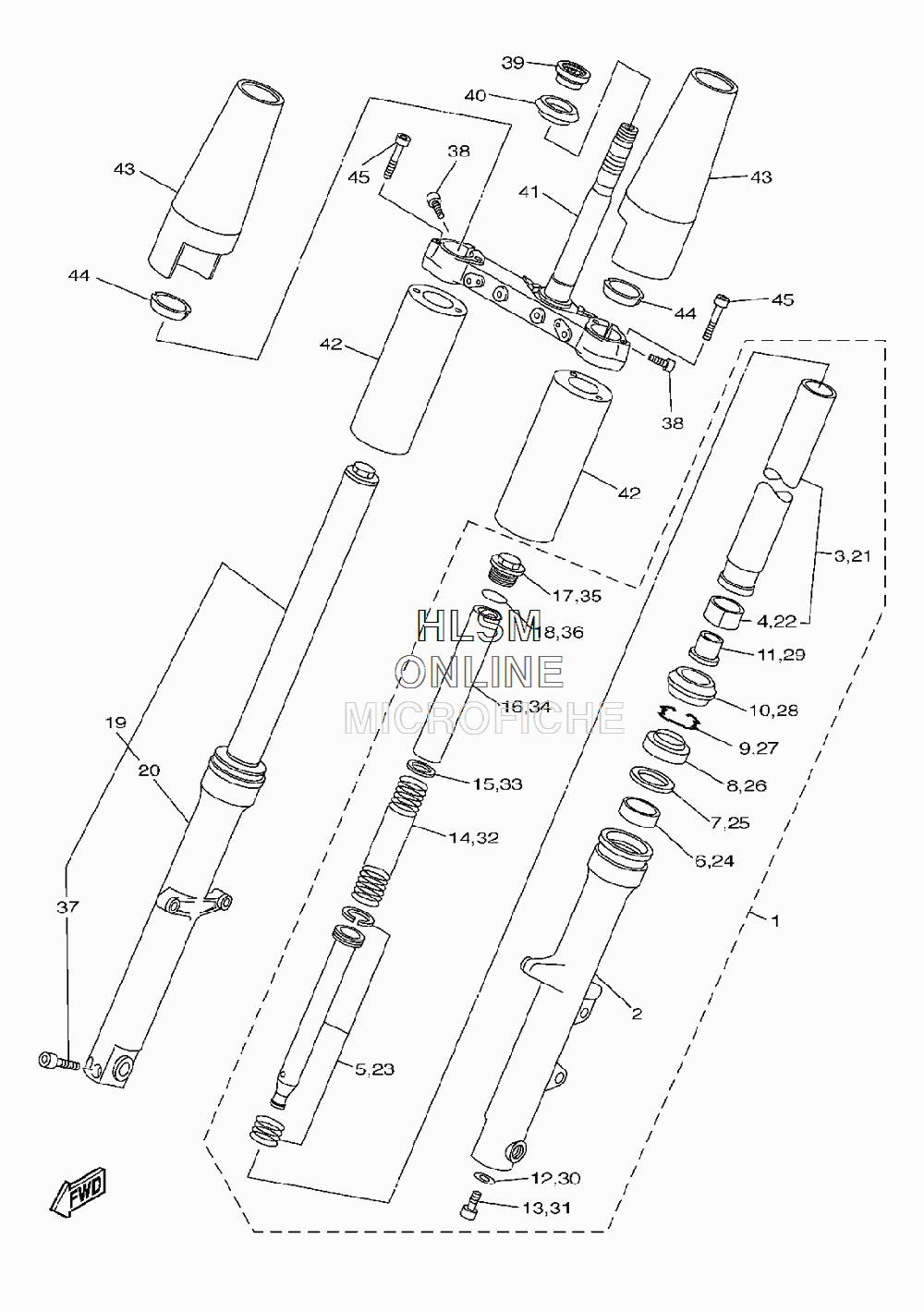

SUSPENSION - FRONT FORK для Yamaha V STAR 950 - 2009 года выпуска`
-
№АртикулНазвание
-
15S7-23102-01-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
25S7-23126-00-00 TUBE, OUTER (LEFT)TUBE, OUTER (LEFT)
-
33D8-23110-00-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
45BN-23171-00-00 PISTON, FRONT FORKPISTON, FRONT FORK
-
55S7-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
64FM-23125-40-00 METAL, SLIDE 1METAL, SLIDE 1
-
736Y-23146-10-00 WASHER, OIL SEALWASHER, OIL SEAL
-
84EB-23145-01-00 OIL SEALOIL SEAL
-
926H-23156-00-00 RING, SNAPRING, SNAP
-
104EB-23144-00-00 SEAL, DUSTSEAL, DUST
-
114YR-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
12509-23158-L0-00 GASKETGASKET
-
13278-23181-50-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
145S7-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
154DW-23149-40-00 WASHER, SPRING UPPERWASHER, SPRING UPPER
-
165EL-23118-00-00 SPACERSPACER
-
171D0-23111-00-00 BOLT, CAPBOLT, CAP
-
1843F-23188-10-00 O-RINGO-RING
-
195S7-23103-01-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
205S7-23136-00-00 TUBE, OUTER (RIGHT)TUBE, OUTER (RIGHT)
-
213D8-23110-00-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
225BN-23171-00-00 PISTON, FRONT FORKPISTON, FRONT FORK
-
235S7-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
244FM-23125-40-00 METAL, SLIDE 1METAL, SLIDE 1
-
2536Y-23146-10-00 WASHER, OIL SEALWASHER, OIL SEAL
-
264EB-23145-01-00 OIL SEALOIL SEAL
-
2726H-23156-00-00 RING, SNAPRING, SNAP
-
284EB-23144-00-00 SEAL, DUSTSEAL, DUST
-
294YR-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
30509-23158-L0-00 GASKETGASKET
-
31278-23181-50-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
325S7-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
334DW-23149-40-00 WASHER, SPRING UPPERWASHER, SPRING UPPER
-
345EL-23118-00-00 SPACERSPACER
-
351D0-23111-00-00 BOLT, CAPBOLT, CAP
-
3643F-23188-10-00 O-RINGO-RING
-
3791314-08035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3891314-10020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3993399-99932-00 BEARINGBEARING
-
403FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
415S7-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
423D8-23123-00-00 COVER, UNDER 1COVER, UNDER 1
-
433D8-23121-00-00 COVER, UPPER 1COVER, UPPER 1
-
443D8-23163-00-00 GASKETGASKET
-
453D8-23394-20-00 BOLT, SPECIALBOLT, SPECIAL
