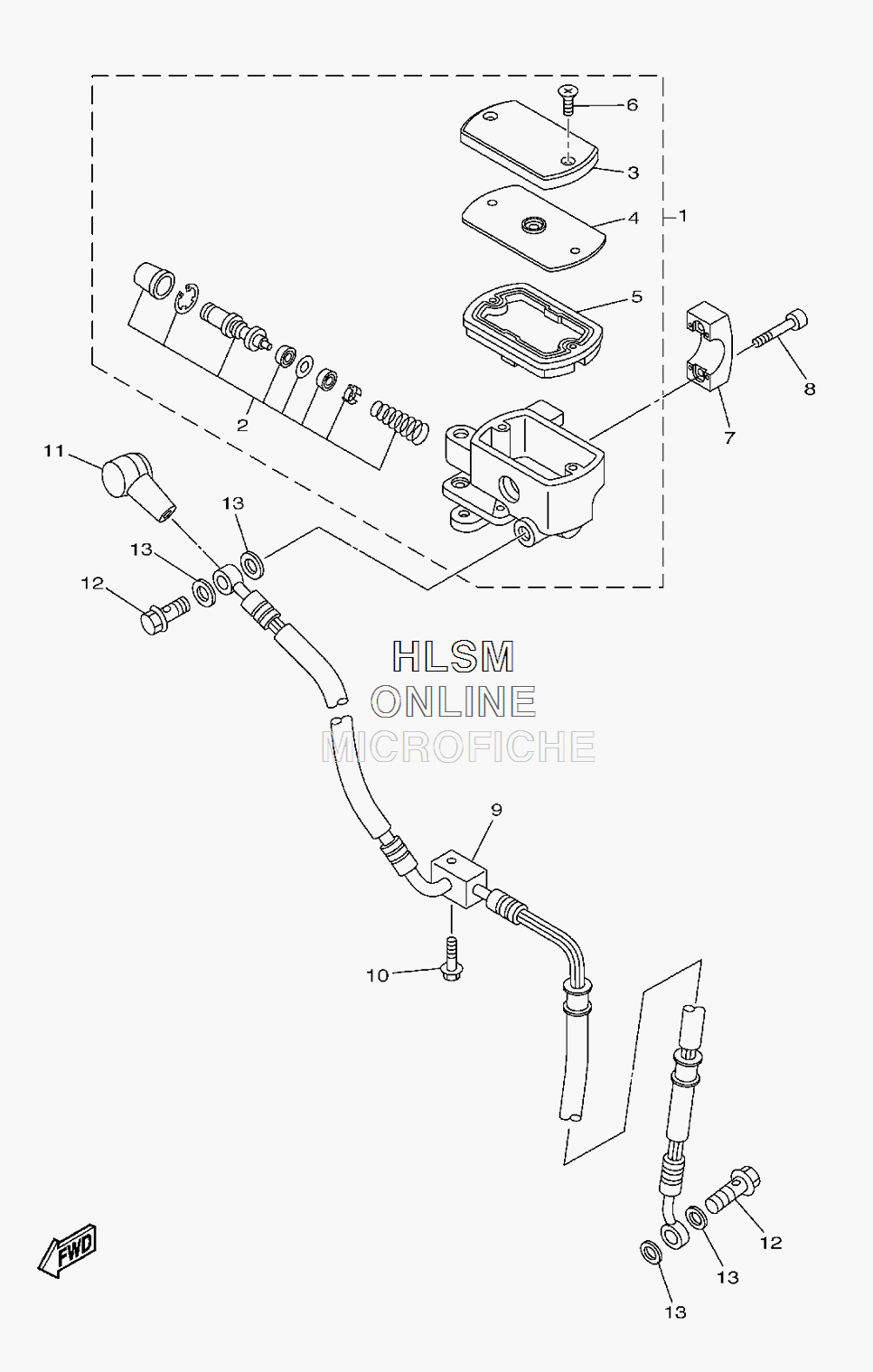

BRAKE - FRONT MASTER CYLINDER для Yamaha V STAR 950 - 2009 года выпуска`
-
№АртикулНазвание
-
15S7-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
21JL-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
33D8-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
43D8-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
53D8-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
63D8-2589H-00-00 SCREWSCREW
-
74TR-25867-10-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
891314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
95S7-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1090105-06096-00 BOLT, WASHER (4EB)BOLT, WASHER (4EB)
-
114L0-25862-01-00 BOOT, MASTER CYLINDERBOOT, MASTER CYLINDER
-
1290401-10020-00 BOLT, UNIONBOLT, UNION
-
1390430-10005-00 GASKETGASKET
