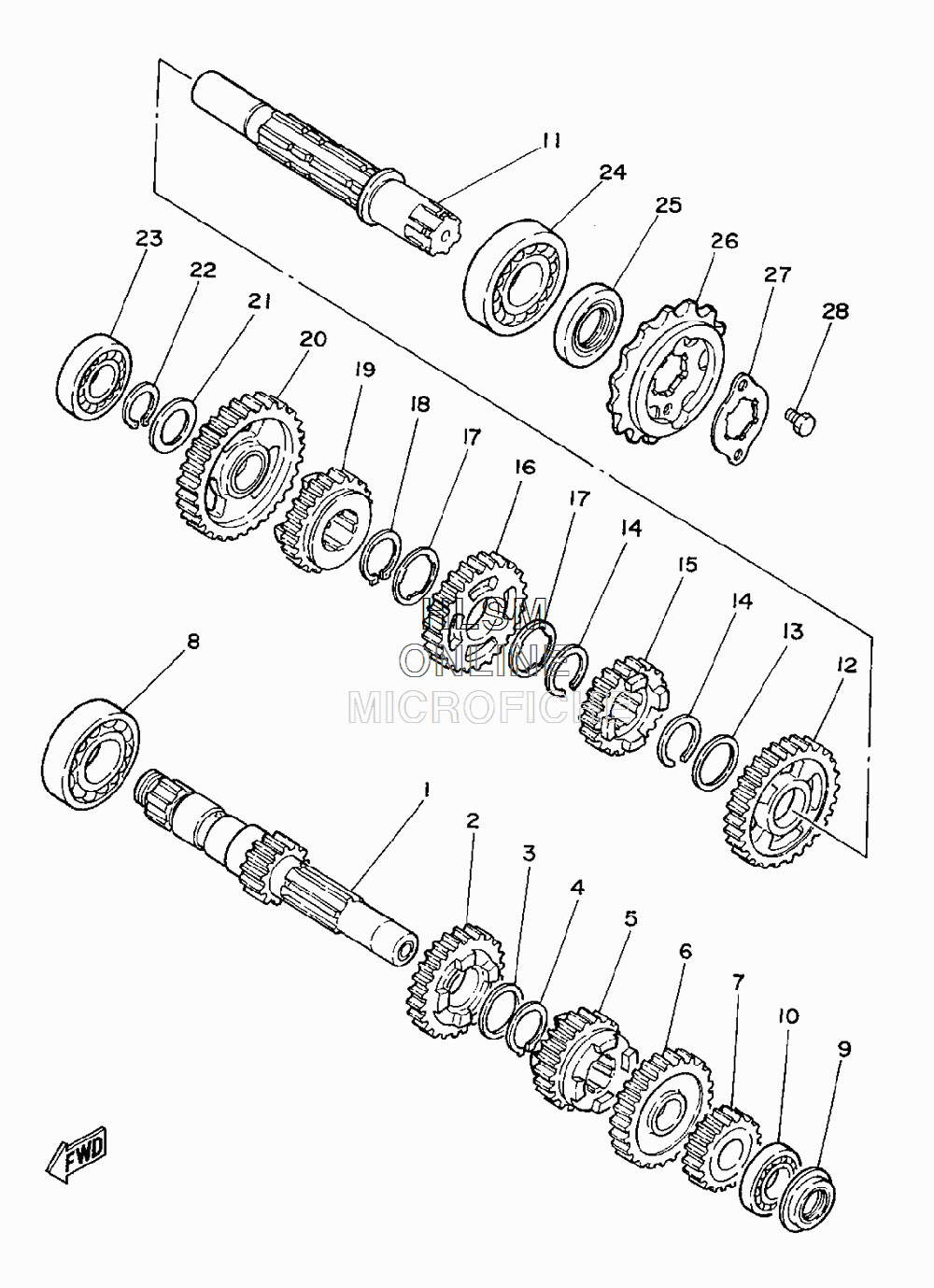

TRANSMISSION для Yamaha V STAR 250 - 2009 года выпуска`
-
№АртикулНазвание
-
14DN-17411-00-00 AXLE, MAIN (14T)AXLE, MAIN (14T)
-
23Y1-17141-01-00 GEAR, 4TH PINION (26T)GEAR, 4TH PINION (26T)
-
390201-22793-00 WASHER, PLATEWASHER, PLATE
-
493410-22039-00 CIRCLIPCIRCLIP
-
53Y1-17131-01-00 GEAR, 3RD PINION (23T)GEAR, 3RD PINION (23T)
-
63Y1-17151-01-00 GEAR, 5TH PINION (28T)GEAR, 5TH PINION (28T)
-
73Y1-17121-01-00 GEAR, 2ND PINION (19T)GEAR, 2ND PINION (19T)
-
893306-20501-00 BEARINGBEARING
-
993101-17093-00 OIL SEALOIL SEAL
-
1093306-00308-00 BEARINGBEARING
-
113Y1-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
123Y1-17221-02-00 GEAR, 2ND WHEEL (32T)GEAR, 2ND WHEEL (32T)
-
1390201-253K0-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
1493440-25084-00 CIRCLIPCIRCLIP
-
153Y1-17251-01-00 GEAR, 5TH WHEELGEAR, 5TH WHEEL
-
163Y1-17231-02-00 GEAR, 3RD WHEEL (29T)GEAR, 3RD WHEEL (29T)
-
1790209-22191-00 WASHERWASHER
-
1899009-25400-00 CIRCLIPCIRCLIP
-
193Y1-17241-00-00 GEAR, 4TH WHEELGEAR, 4TH WHEEL
-
203Y1-17211-00-00 GEAR, 1ST WHEEL (37T)GEAR, 1ST WHEEL (37T)
-
2190201-20276-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
2299009-20400-00 CIRCLIPCIRCLIP
-
2393306-00401-00 BEARINGBEARING
-
2493306-30525-00 BEARINGBEARING
-
2593102-25208-00 OIL SEALOIL SEAL
-
2693834-16100-00 SPROCKET, DRIVE 16TSPROCKET, DRIVE 16T
-
273Y1-17456-00-00 HOLDER, SPROCKETHOLDER, SPROCKET
-
2897027-06010-00 BOLT(3JP)BOLT(3JP)
