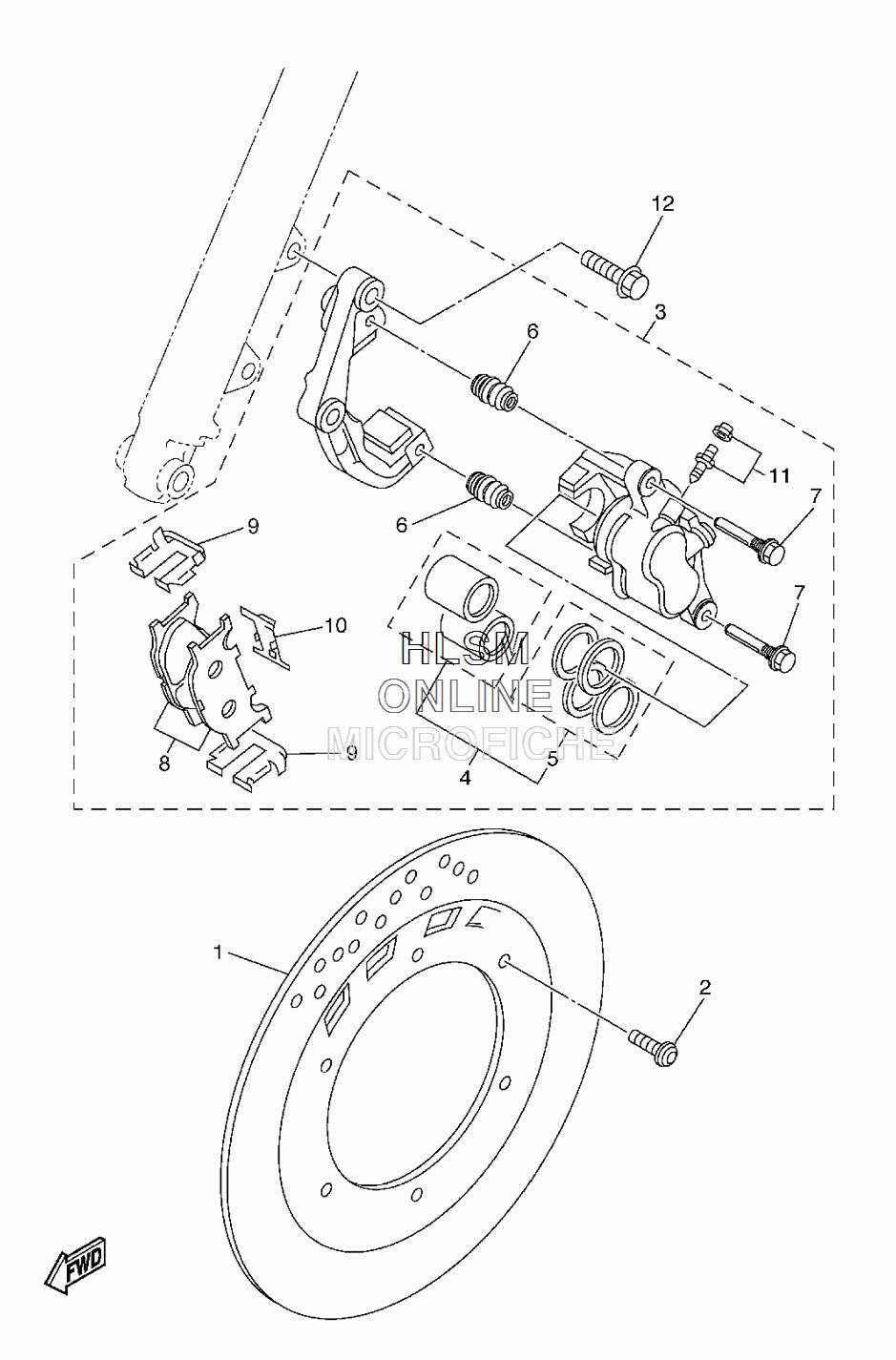

BRAKE - FRONT CALIPER для Yamaha V STAR 250 - 2009 года выпуска`
-
№АртикулНазвание
-
13LP-2582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-081F0-00 BOLTBOLT
-
33BG-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
45KS-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
54FU-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
64TT-25937-00-00 BOOT 2BOOT 2
-
75JW-25914-10-00 PIN, SLIDEPIN, SLIDE
-
84HM-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
94BP-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
103YX-25929-00-00 SPRING, ANTI RATTLESPRING, ANTI RATTLE
-
1151L-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
1290105-10638-00 BOLT, FLANGEBOLT, FLANGE
