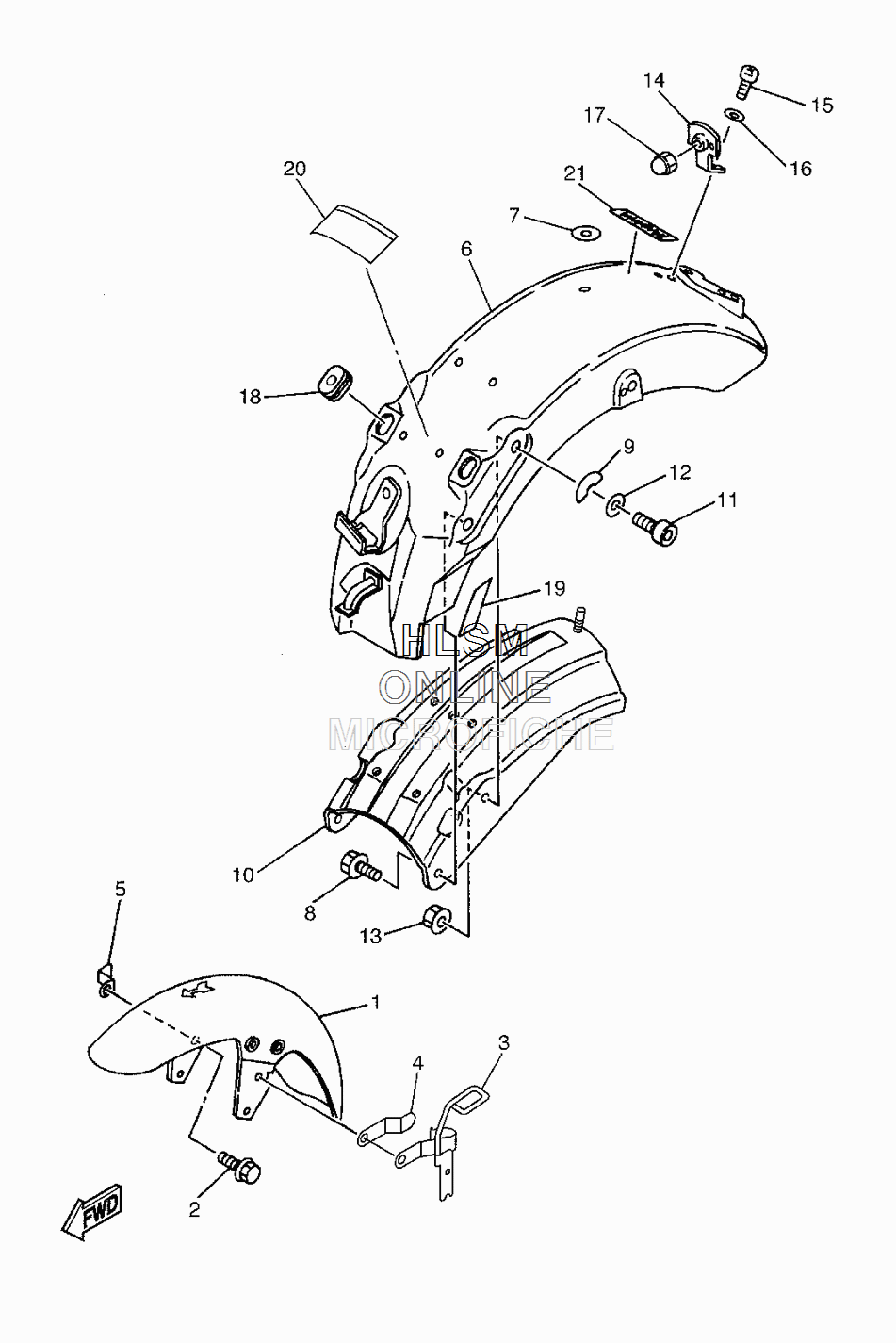

FENDER - FRONT / REAR для Yamaha V STAR 250 - 2009 года выпуска`
-
№АртикулНазвание
-
12UJ-21510-00-P7 FRONT FENDER COMP. (USE FOR COLOR VDRM2 / 0957)FRONT FENDER COMP. (USE FOR COLOR VDRM2 / 0957)
-
295024-08012-00 BOLT, FLANGEBOLT, FLANGE
-
33DN-21597-00-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
42UJ-26116-00-00 STOPPER 2STOPPER 2
-
53DN-21586-00-00 BRACKETBRACKET
-
62UJ-21610-00-PD REAR FENDER COMP. (USE FOR COLOR VDRM2 / 0957)REAR FENDER COMP. (USE FOR COLOR VDRM2 / 0957)
-
72UJ-21735-00-00 SEAL 2SEAL 2
-
895817-10020-00 BOLT, FLANGEBOLT, FLANGE
-
93DM-2173N-00-00 SEAL 4SEAL 4
-
102UJ-21670-20-00 REINF. COMP.REINF. COMP.
-
1191317-10035-00 BOLTBOLT
-
1292907-10600-00 WASHER, PLATEWASHER, PLATE
-
1395707-10500-00 NUT, FLANGENUT, FLANGE
-
142UJ-21641-00-00 BRACKET, REFLECTORBRACKET, REFLECTOR
-
1598507-05010-00 SCREW,PAN HEAD(3SX)SCREW,PAN HEAD(3SX)
-
1692907-05600-00 WASHER, PLATEWASHER, PLATE
-
1795307-05800-00 NUTNUT
-
1890480-01502-00 GROMMETGROMMET
-
192UJ-2173M-01-00 SEAL 3SEAL 3
-
2010D-2815N-00-00 LABEL, NOTICE BATTERYLABEL, NOTICE BATTERY
-
2199246-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
