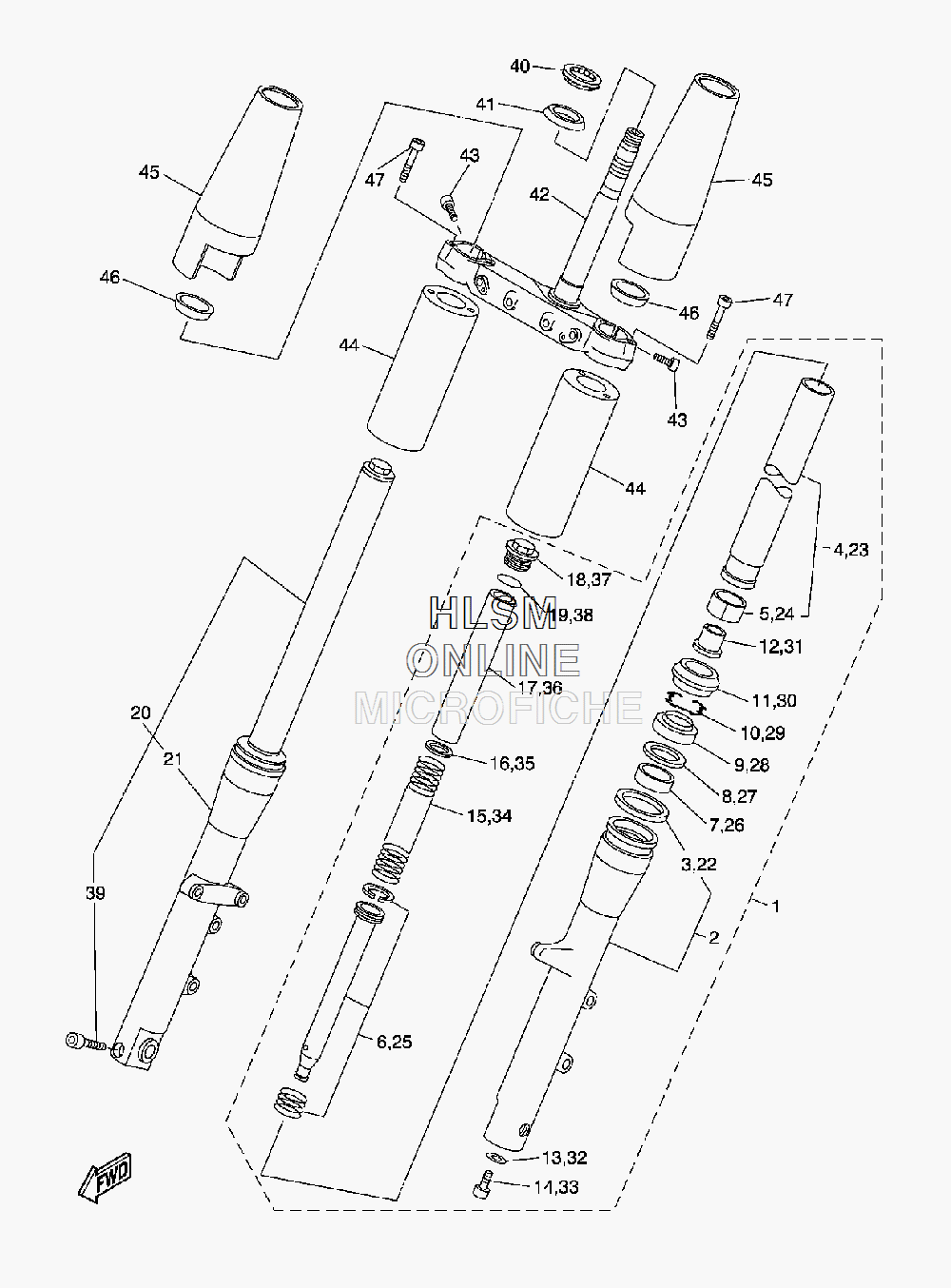

SUSPENSION - FRONT FORK для Yamaha V STAR 1300 - 2009 года выпуска`
-
№АртикулНазвание
-
13D8-23102-00-00 FRONT FORK ASSY (LEFT HAND)FRONT FORK ASSY (LEFT HAND)
-
25KS-23126-10-00 TUBE, OUTER (LEFT)TUBE, OUTER (LEFT)
-
35BN-23193-00-00 GUIDE, BOOTGUIDE, BOOT
-
43D8-23110-00-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
55BN-23171-00-00 PISTON, FRONT FORKPISTON, FRONT FORK
-
63D8-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
74FM-23125-40-00 METAL, SLIDE 1METAL, SLIDE 1
-
836Y-23146-10-00 WASHER, OIL SEALWASHER, OIL SEAL
-
94EB-23145-01-00 OIL SEALOIL SEAL
-
1026H-23156-00-00 RING, SNAPRING, SNAP
-
114EB-23144-00-00 SEAL, DUSTSEAL, DUST
-
124YR-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
13509-23158-L0-00 GASKETGASKET
-
143D8-23181-00-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
153D8-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
164DW-23149-40-00 WASHER, SPRING UPPERWASHER, SPRING UPPER
-
175EL-23118-00-00 SPACERSPACER
-
181D0-23111-00-00 BOLT, CAPBOLT, CAP
-
1943F-23188-10-00 O-RINGO-RING
-
203D8-23103-00-00 FRONT FORK ASSY (RIGHT HAND)FRONT FORK ASSY (RIGHT HAND)
-
215KS-23136-10-00 TUBE, OUTER (RIGHT)TUBE, OUTER (RIGHT)
-
225BN-23193-00-00 GUIDE, BOOTGUIDE, BOOT
-
233D8-23110-00-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
245BN-23171-00-00 PISTON, FRONT FORKPISTON, FRONT FORK
-
253D8-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
264FM-23125-40-00 METAL, SLIDE 1METAL, SLIDE 1
-
2736Y-23146-10-00 WASHER, OIL SEALWASHER, OIL SEAL
-
284EB-23145-01-00 OIL SEALOIL SEAL
-
2926H-23156-00-00 RING, SNAPRING, SNAP
-
304EB-23144-00-00 SEAL, DUSTSEAL, DUST
-
314YR-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
32509-23158-L0-00 GASKETGASKET
-
333D8-23181-00-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
343D8-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
354DW-23149-40-00 WASHER, SPRING UPPERWASHER, SPRING UPPER
-
365EL-23118-00-00 SPACERSPACER
-
371D0-23111-00-00 BOLT, CAPBOLT, CAP
-
3843F-23188-10-00 O-RINGO-RING
-
3991314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4093399-99932-00 BEARINGBEARING
-
413FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
423D8-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4391314-08020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
443D8-23123-00-00 COVER, UNDER 1COVER, UNDER 1
-
453D8-23121-00-00 COVER, UPPER 1COVER, UPPER 1
-
463D8-23163-00-00 GASKETGASKET
-
473D8-23394-20-00 BOLT, SPECIALBOLT, SPECIAL
