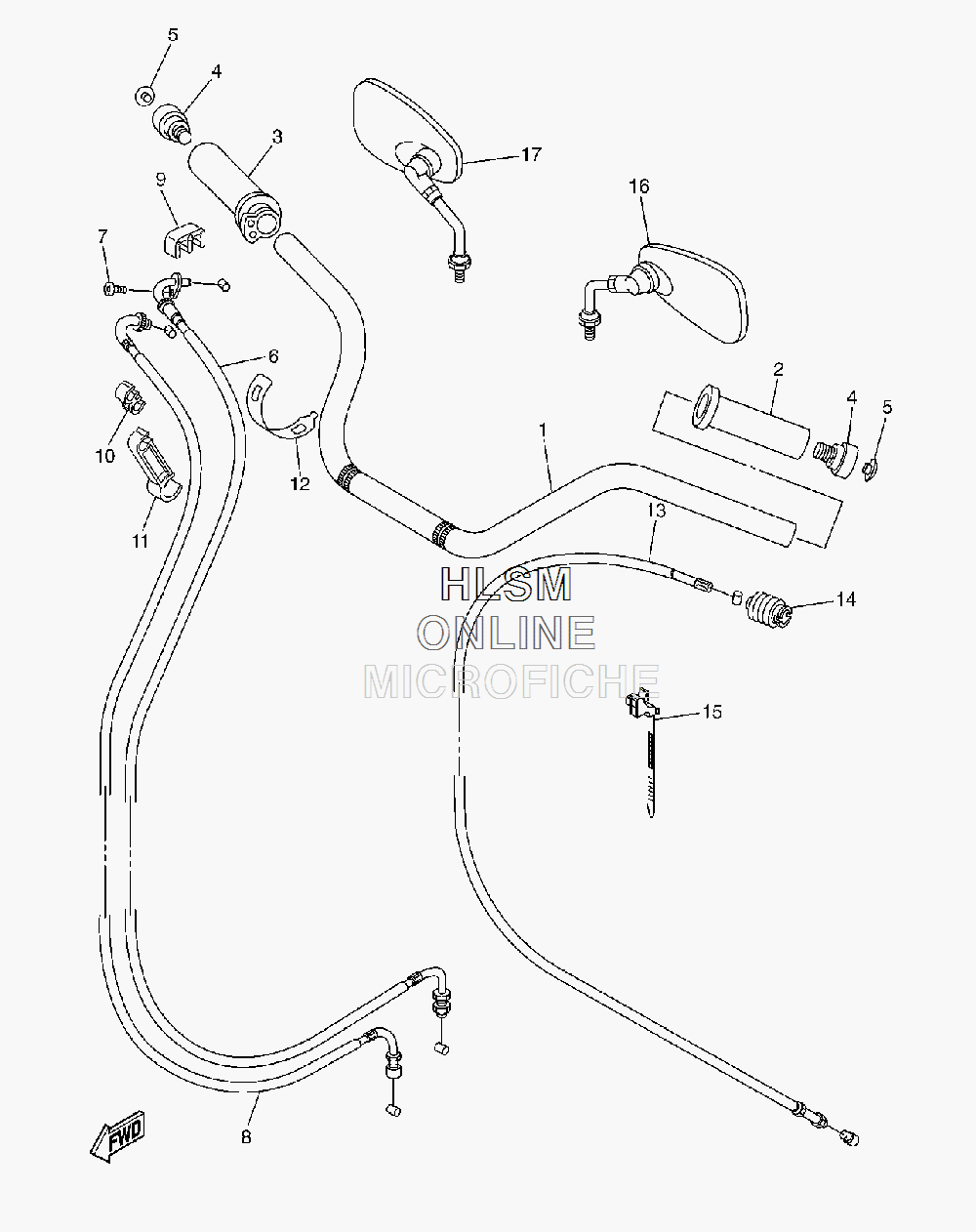

HANDLEBAR W/ CABLES для Yamaha V STAR 1300 - 2009 года выпуска`
-
№АртикулНазвание
-
13D8-26111-01-00 HANDLEBARHANDLEBAR
-
24NK-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
34XY-26240-00-00 GRIP ASSYGRIP ASSY
-
45EL-26246-00-00 END, GRIPEND, GRIP
-
590338-10164-00 PLUGPLUG
-
63D8-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
798507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
83D8-26312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
990464-07006-00 CLAMPCLAMP
-
1090464-06214-00 CLAMPCLAMP
-
1190464-13009-00 CLAMPCLAMP
-
123D8-25715-00-00 COVER 1COVER 1
-
133D8-26335-11-00 CABLE, CLUTCHCABLE, CLUTCH
-
141E6-26342-00-00 BOOT, CABLEBOOT, CABLE
-
1590464-15200-00 CLAMPCLAMP
-
164NK-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
174NK-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
