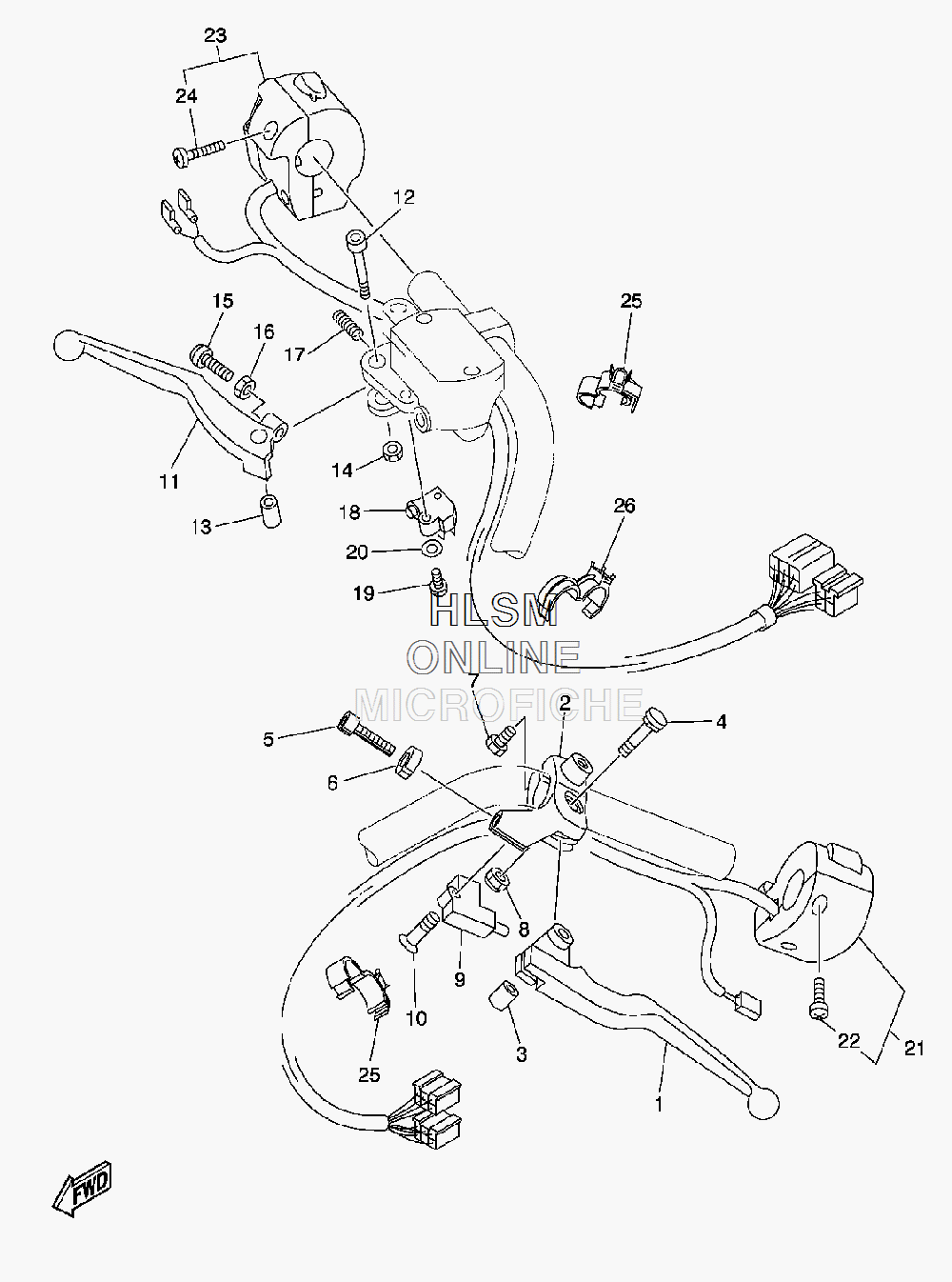

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha V STAR 1300 - 2009 года выпуска`
-
№АртикулНазвание
-
15BN-83912-00-00 LEVER 1LEVER 1
-
25BN-82911-20-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
34TR-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
44TR-83945-10-00 BOLT, LEVERBOLT, LEVER
-
590123-08083-00 BOLTBOLT
-
690179-08316-00 NUTNUT
-
797007-06020-00 BOLTBOLT
-
895607-06100-00 NUT, UNUT, U
-
93YX-82917-01-00 SWITCHSWITCH
-
1098707-03020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
115BN-83922-00-00 LEVER 2LEVER 2
-
1290110-06265-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1336Y-83913-01-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
1495602-06100-00 NUT, UNUT, U
-
1590154-06028-00 SCREW, BINDINGSCREW, BINDING
-
1690170-06020-00 NUTNUT
-
1790501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1836Y-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1998502-04016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2092902-04600-00 WASHER, PLATEWASHER, PLATE
-
213D8-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
2298504-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
233D8-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
2498504-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2590464-15192-00 CLAMPCLAMP
-
2690464-20191-00 CLAMPCLAMP
