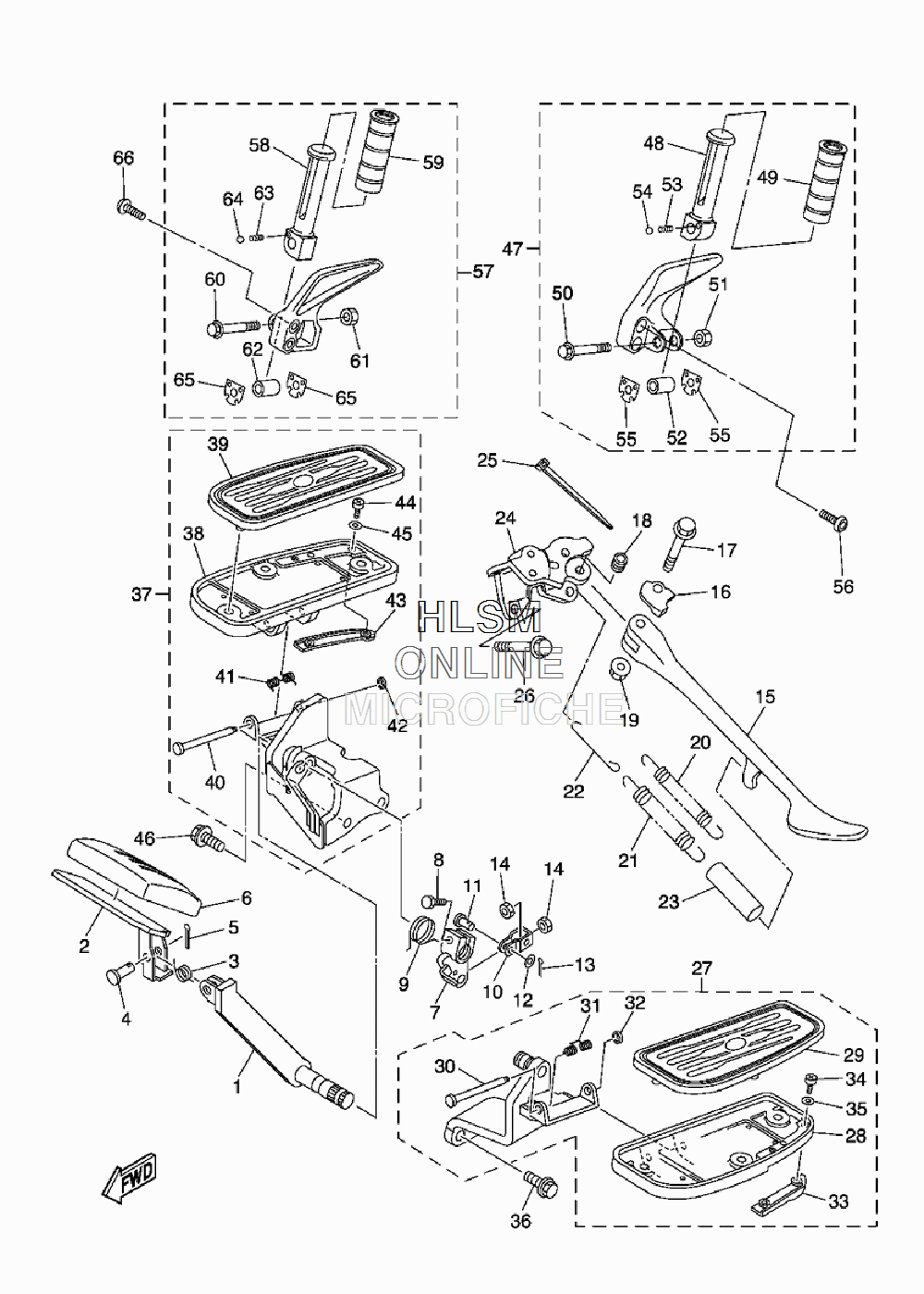

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha V STAR 1300 TOURER - 2009 года выпуска`
-
№АртикулНазвание
-
15KS-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
24NK-27242-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
390508-18023-00 SPRING, TORSIONSPRING, TORSION
-
491701-06022-00 PIN, CLEVISPIN, CLEVIS
-
591490-20015-00 PIN, COTTERPIN, COTTER
-
61D7-27285-00-00 CAPCAP
-
75EL-27262-00-00 LEVERLEVER
-
897024-06020-00 BOLTBOLT
-
93D8-27216-00-00 SPRING, RETURNSPRING, RETURN
-
104BP-27222-02-00 JOINTJOINT
-
1190240-08124-00 PIN, CLEVISPIN, CLEVIS
-
1290201-08083-00 WASHER, PLATEWASHER, PLATE
-
1391490-20015-00 PIN, COTTERPIN, COTTER
-
1495317-08700-00 NUTNUT
-
154KU-27311-13-00 STAND, SIDESTAND, SIDE
-
163D8-27322-00-00 WASHERWASHER
-
1790105-10012-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1890387-1003G-00 COLLARCOLLAR
-
1995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
2090506-23015-00 SPRING, TENSIONSPRING, TENSION
-
2190506-29006-00 SPRING, TENSIONSPRING, TENSION
-
223D8-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
2390445-16641-00 HOSE (L60)HOSE (L60)
-
243D8-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
251UA-82591-00-00 BANDBAND
-
2690105-10158-00 BOLT, FLANGEBOLT, FLANGE
-
273D8-27410-00-00 FRONT FOOTREST ASSY (LEFT) (EXCEPT CALIF.)FRONT FOOTREST ASSY (LEFT) (EXCEPT CALIF.)
-
273D8-27410-10-00 FRONT FOOTREST ASSY (LEFT) (CALIF. ONLY)FRONT FOOTREST ASSY (LEFT) (CALIF. ONLY)
-
284NK-27451-10-00 FOOTRESTFOOTREST
-
294XY-27413-01-00 COVER, FOOTRESTCOVER, FOOTREST
-
303D8-27427-00-00 SHAFTSHAFT
-
311D7-27426-00-00 SPRING, RETURNSPRING, RETURN
-
3299002-06600-00 CLIPCLIP
-
334WM-27496-00-00 MOLE 1MOLE 1
-
3490157-05026-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3592990-05200-00 WASHERWASHER
-
3690105-10236-00 BOLT, FLANGEBOLT, FLANGE
-
373D8-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
384NK-27461-10-00 FOOTRESTFOOTREST
-
394XY-27423-01-00 COVER, FOOTRESTCOVER, FOOTREST
-
403D8-27427-00-00 SHAFTSHAFT
-
411D7-27426-00-00 SPRING, RETURNSPRING, RETURN
-
4299002-06600-00 CLIPCLIP
-
434WM-27497-00-00 MOLE 2MOLE 2
-
4490157-05026-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4592990-05200-00 WASHERWASHER
-
4690105-10236-00 BOLT, FLANGEBOLT, FLANGE
-
473D8-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
481D7-27431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
494WM-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
5090109-06016-00 BOLTBOLT
-
5195604-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
52364-83913-01-00 COLLARCOLLAR
-
5390501-15001-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5493501-04011-00 BALL 1/4BALL 1/4
-
551D7-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
5690111-08044-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
573D8-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
581D7-27441-00-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
594WM-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
6090109-06016-00 BOLTBOLT
-
6195604-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
62364-83913-01-00 COLLARCOLLAR
-
6390501-15001-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
6493501-04011-00 BALL 1/4BALL 1/4
-
651D7-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
6690111-08044-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
