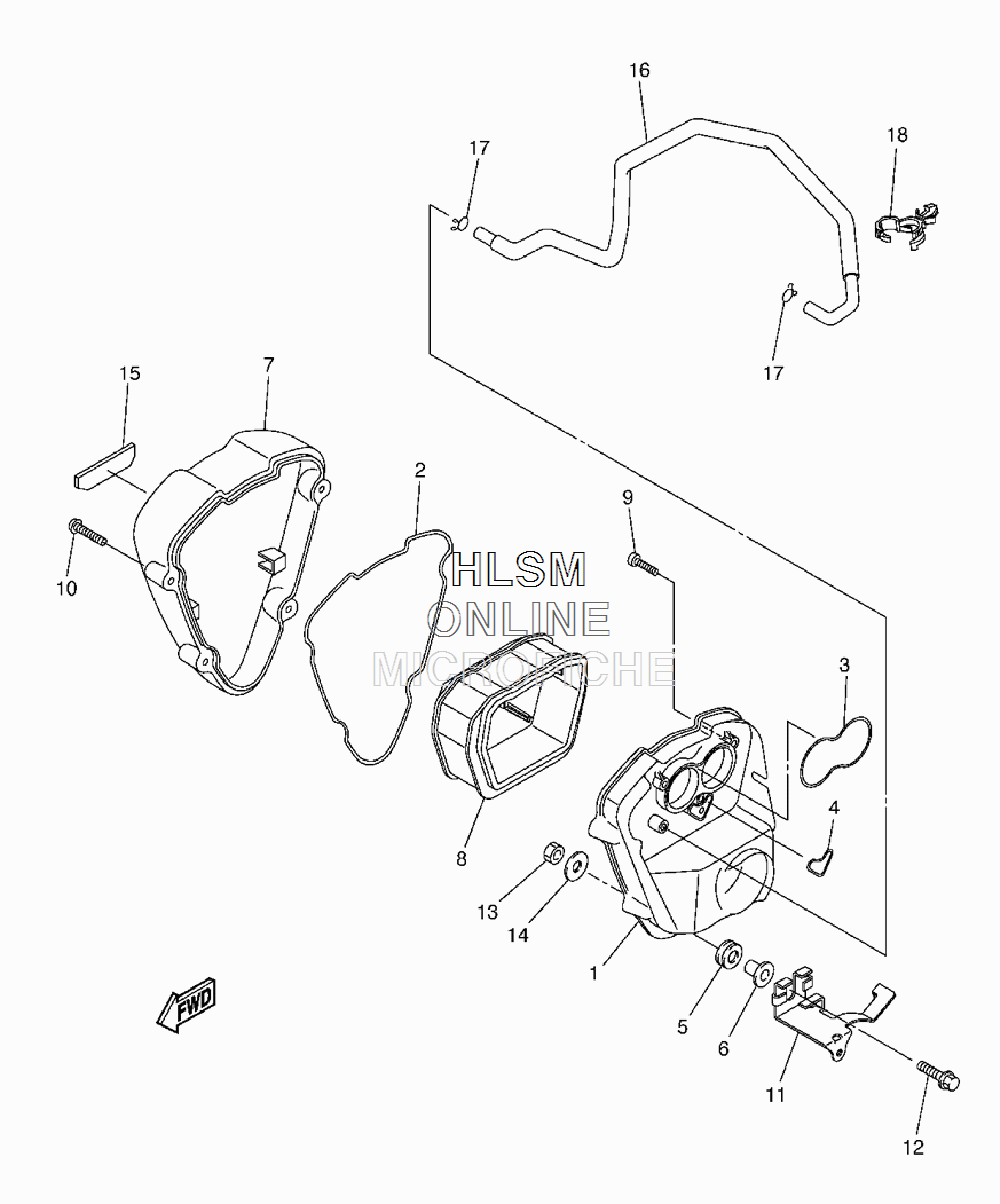

AIR CLEANER W/ INTAKE для Yamaha V STAR 1300 TOURER - 2009 года выпуска`
-
№АртикулНазвание
-
13D8-14411-02-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
25Y1-14462-00-00 SEALSEAL
-
33D8-14457-00-00 SEALSEAL
-
43D8-14462-00-00 SEALSEAL
-
590480-11006-00 GROMMETGROMMET
-
690387-087L0-00 COLLARCOLLAR
-
73D8-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
83D8-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
991312-05025-00 BOLTBOLT
-
1090111-05024-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
113D8-14498-01-00 STAY 1STAY 1
-
1297017-06020-00 BOLTBOLT
-
1395780-06500-00 NUT, FLANGENUT, FLANGE
-
1490201-06088-00 WASHER, PLATEWASHER, PLATE
-
153D8-1442K-00-00 EMBLEM 2EMBLEM 2
-
163D8-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1790467-15M14-00 CLIPCLIP
-
1890464-20009-00 CLAMPCLAMP
