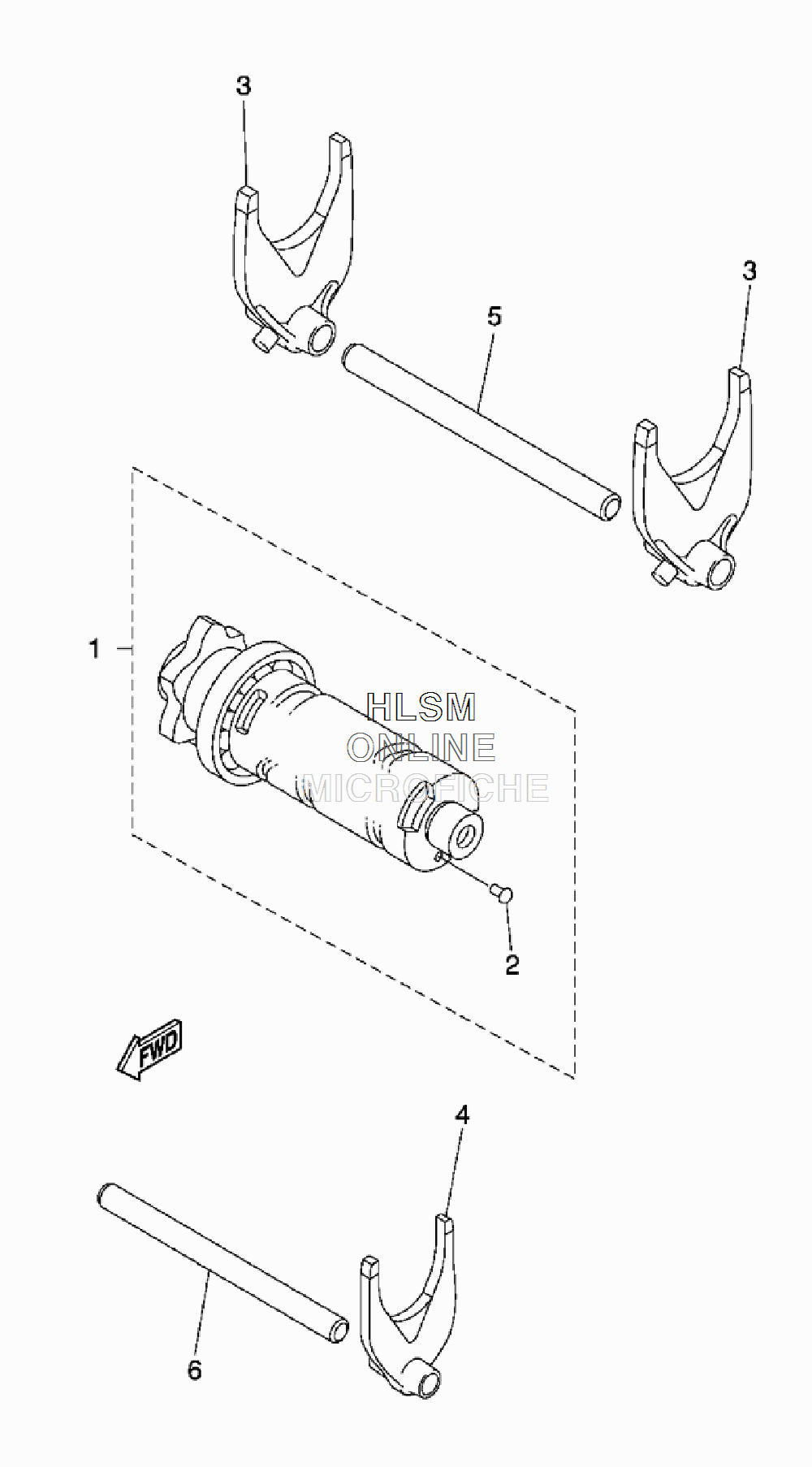

SHIFT CAM W/ FORK для Yamaha V STAR 1300 TOURER - 2009 года выпуска`
-
№АртикулНазвание
-
13D8-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
2136-18542-00-00 POINT, NEUTRALPOINT, NEUTRAL
-
33D8-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
43D8-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
53D8-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
63D8-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
