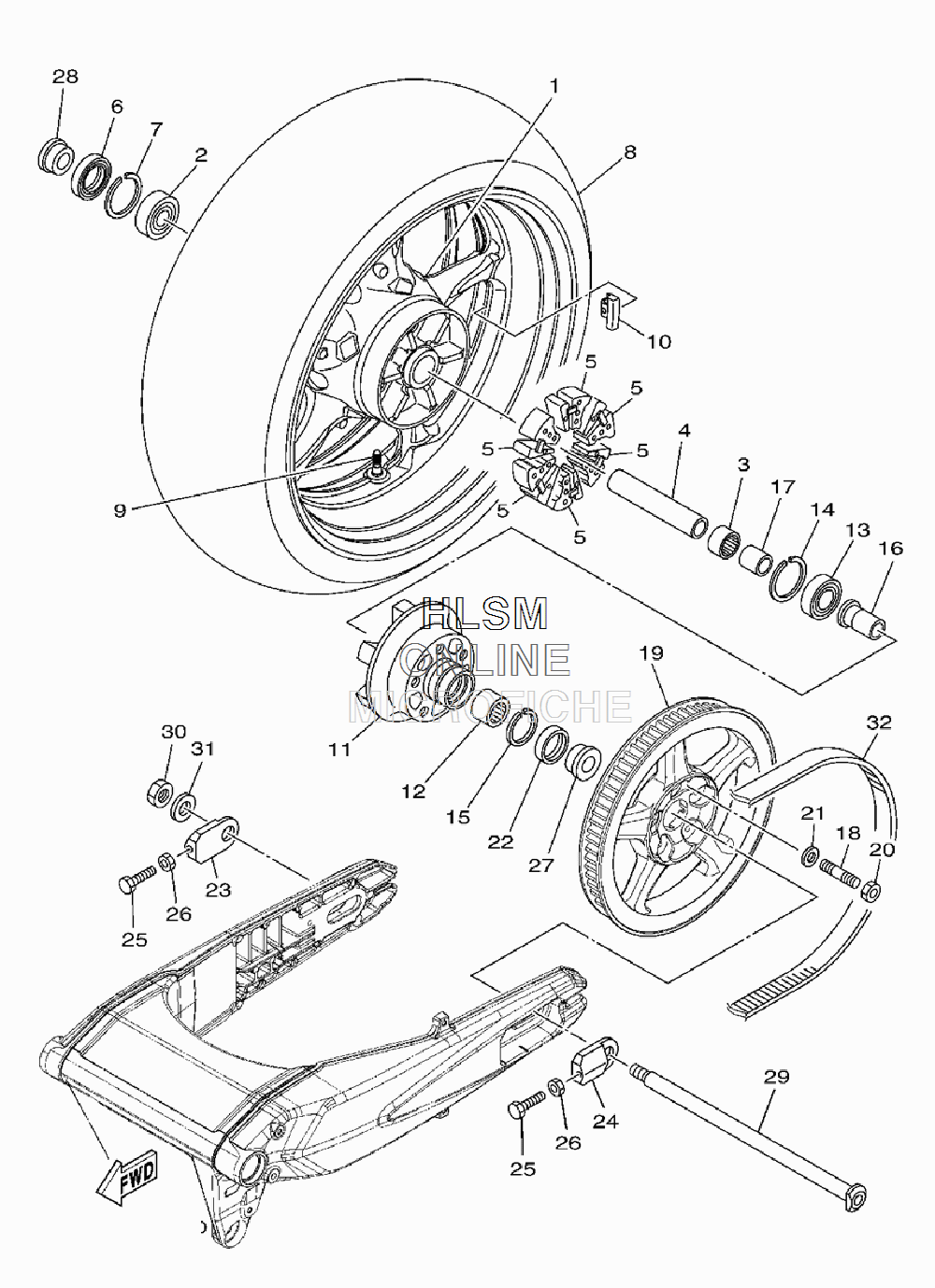

WHEEL - REAR для Yamaha RAIDER S - 2009 года выпуска`
-
№АртикулНазвание
-
15C7-25338-00-P0 CAST WHEEL, REAR (SILVER 8)CAST WHEEL, REAR (SILVER 8)
-
293306-30437-00 BEARING (3BC)BEARING (3BC)
-
393320-32811-00 BEARINGBEARING
-
41D7-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
51D7-25364-00-00 DAMPERDAMPER
-
693106-28001-00 OIL SEALOIL SEAL
-
799009-52500-00 CIRCLIPCIRCLIP
-
894121-18012-00 REAR TIRE METZELER 210/40R 18 M/C 73HREAR TIRE METZELER 210/40R 18 M/C 73H
-
993900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
105MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
105MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
105MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
114WM-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1293320-32612-00 BEARINGBEARING
-
1393306-30437-00 BEARING (3BC)BEARING (3BC)
-
1499009-52500-00 CIRCLIPCIRCLIP
-
1593450-35163-00 CIRCLIPCIRCLIP
-
164WM-25376-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
171D7-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1895617-12630-00 BOLT, STUDBOLT, STUD
-
195C7-25466-00-00 SPROCKET, DRIVEN (66T)SPROCKET, DRIVEN (66T)
-
2095614-12100-00 NUT, UNUT, U
-
2190201-126A7-00 WASHER, PLATEWASHER, PLATE
-
2293106-30004-00 OIL SEAL, DD-TYPEOIL SEAL, DD-TYPE
-
231D7-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
241D7-25389-00-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
2590101-08012-00 BOLTBOLT
-
2695302-08600-00 NUTNUT
-
2790387-202X9-00 COLLARCOLLAR
-
2890387-20012-00 COLLARCOLLAR
-
291D7-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
3090185-18167-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3190201-185R7-00 WASHER, PLATEWASHER, PLATE
-
325C7-46241-00-00 V-BELTV-BELT
