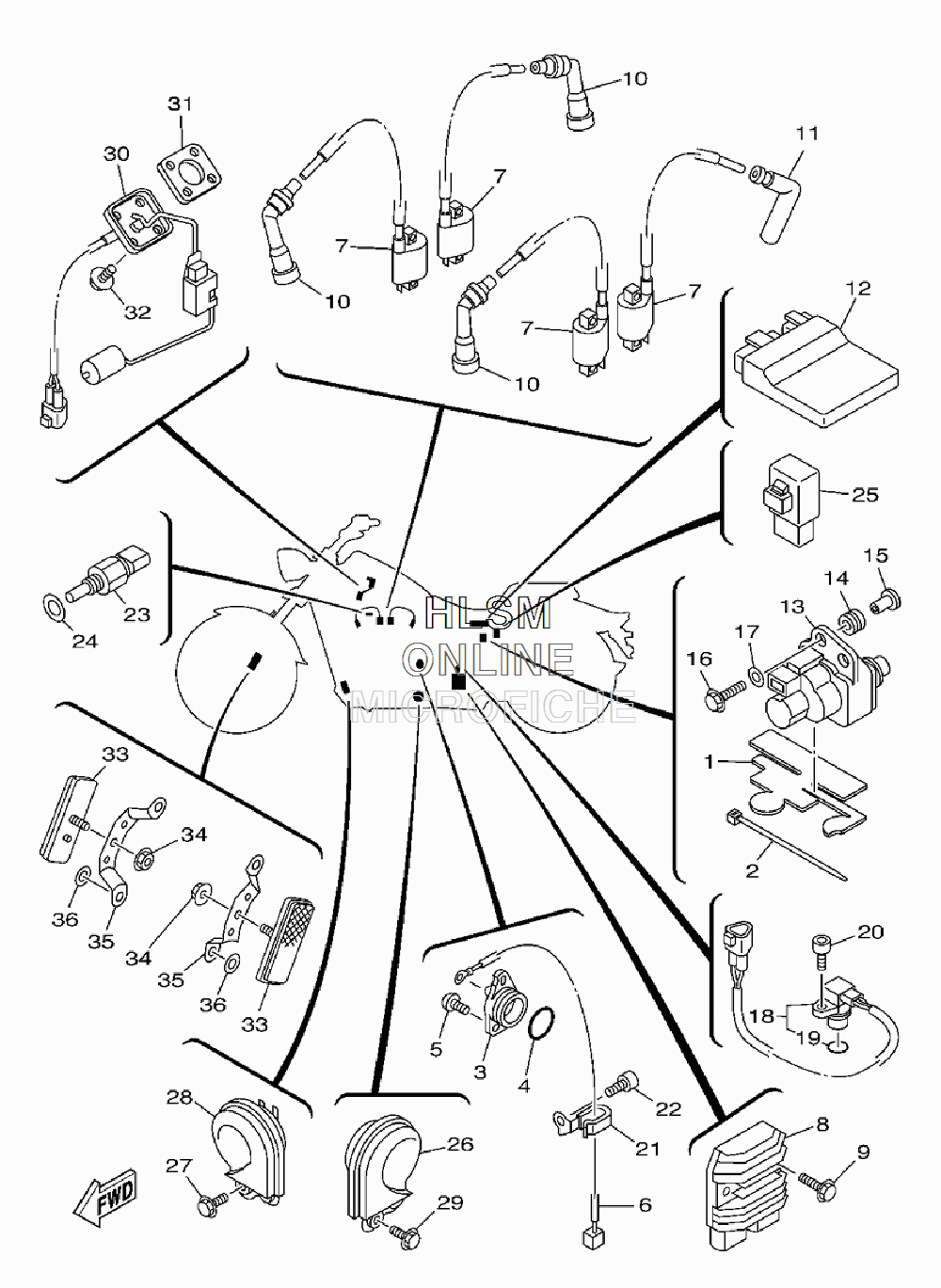

ELECTRICAL для Yamaha RAIDER S - 2009 года выпуска`
-
№АртикулНазвание
-
15C7-2177M-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
290464-16061-00 CLAMPCLAMP
-
31AE-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
493210-29196-00 O-RINGO-RING
-
590149-06069-00 SCREWSCREW
-
65C7-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
71D7-82310-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
81D7-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
995022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
101D7-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
115VK-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
125C7-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
132D1-85820-00-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
1490480-14005-00 GROMMETGROMMET
-
1590387-063E6-00 COLLARCOLLAR
-
1695022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1790201-06M31-00 WASHER, PLATEWASHER, PLATE
-
181D7-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
194D9-81168-00-00 O-RINGO-RING
-
2090110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2190465-08127-00 CLAMPCLAMP
-
2290110-06227-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
235PX-83591-00-00 THERMO UNITTHERMO UNIT
-
2490201-12172-00 WASHER, PLATEWASHER, PLATE
-
251D7-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
261D7-83371-00-00 HORNHORN
-
2790119-06001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
281D7-83371-10-00 HORNHORN
-
2990119-06229-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
305C7-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
315G3-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
3290119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3311H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
3495607-05200-00 NUT, U FLANGENUT, U FLANGE
-
351D7-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
3690201-112U6-00 WASHER, PLATEWASHER, PLATE
