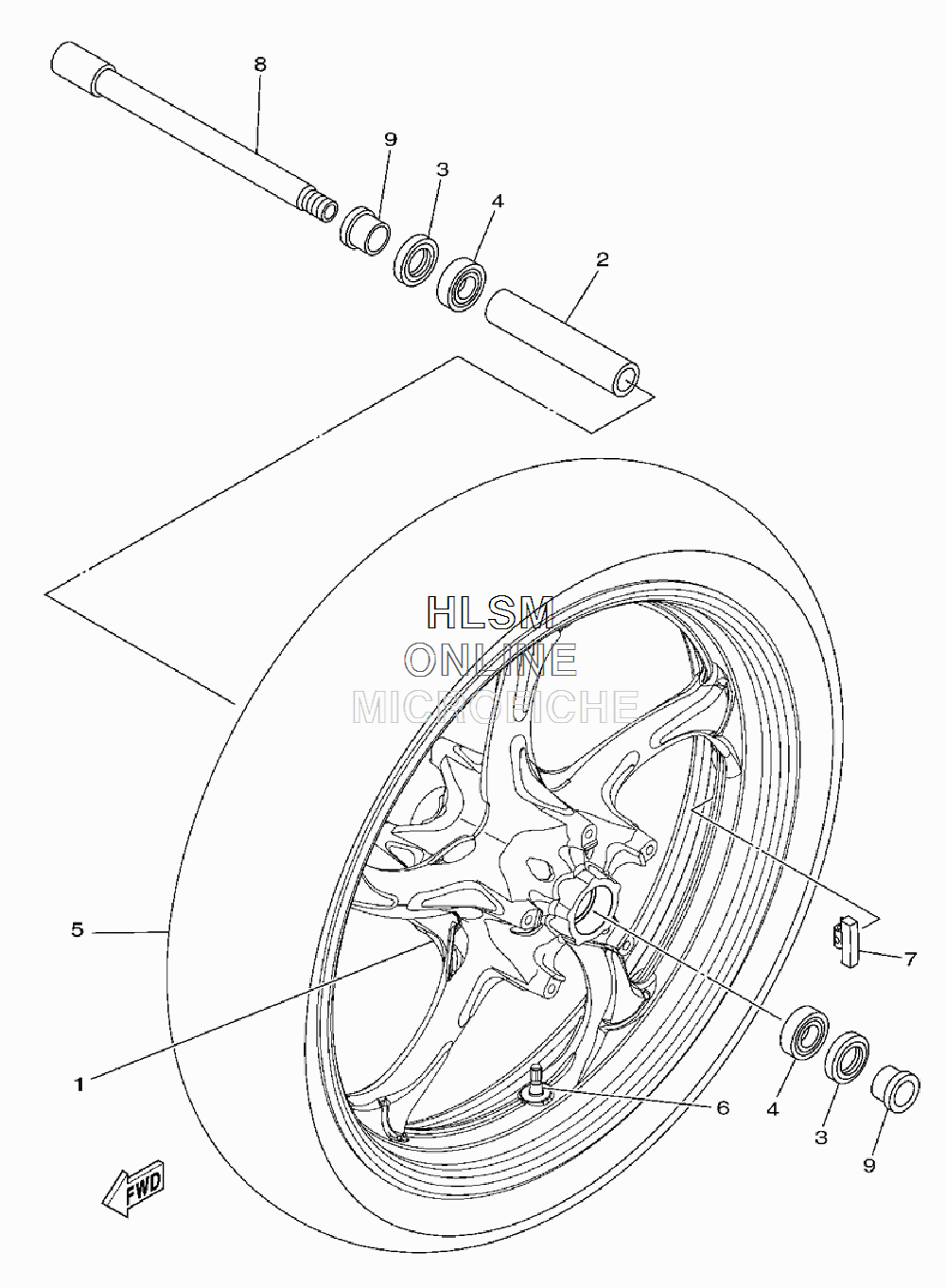

WHEEL - FRONT для Yamaha RAIDER S - 2009 года выпуска`
-
№АртикулНазвание
-
15C7-25168-00-P0 CAST WHEEL, FRONT (SILVER 8)CAST WHEEL, FRONT (SILVER 8)
-
290387-2208J-00 COLLARCOLLAR
-
393106-28043-00 OIL SEALOIL SEAL
-
493306-00420-00 BEARINGBEARING
-
594112-21008-00 FRONT TIRE METZELER 120/70-21 ME880FFRONT TIRE METZELER 120/70-21 ME880F
-
693900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
75MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
75MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
75MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
81D7-25181-00-00 AXLE, WHEELAXLE, WHEEL
-
990387-2200T-00 COLLARCOLLAR
