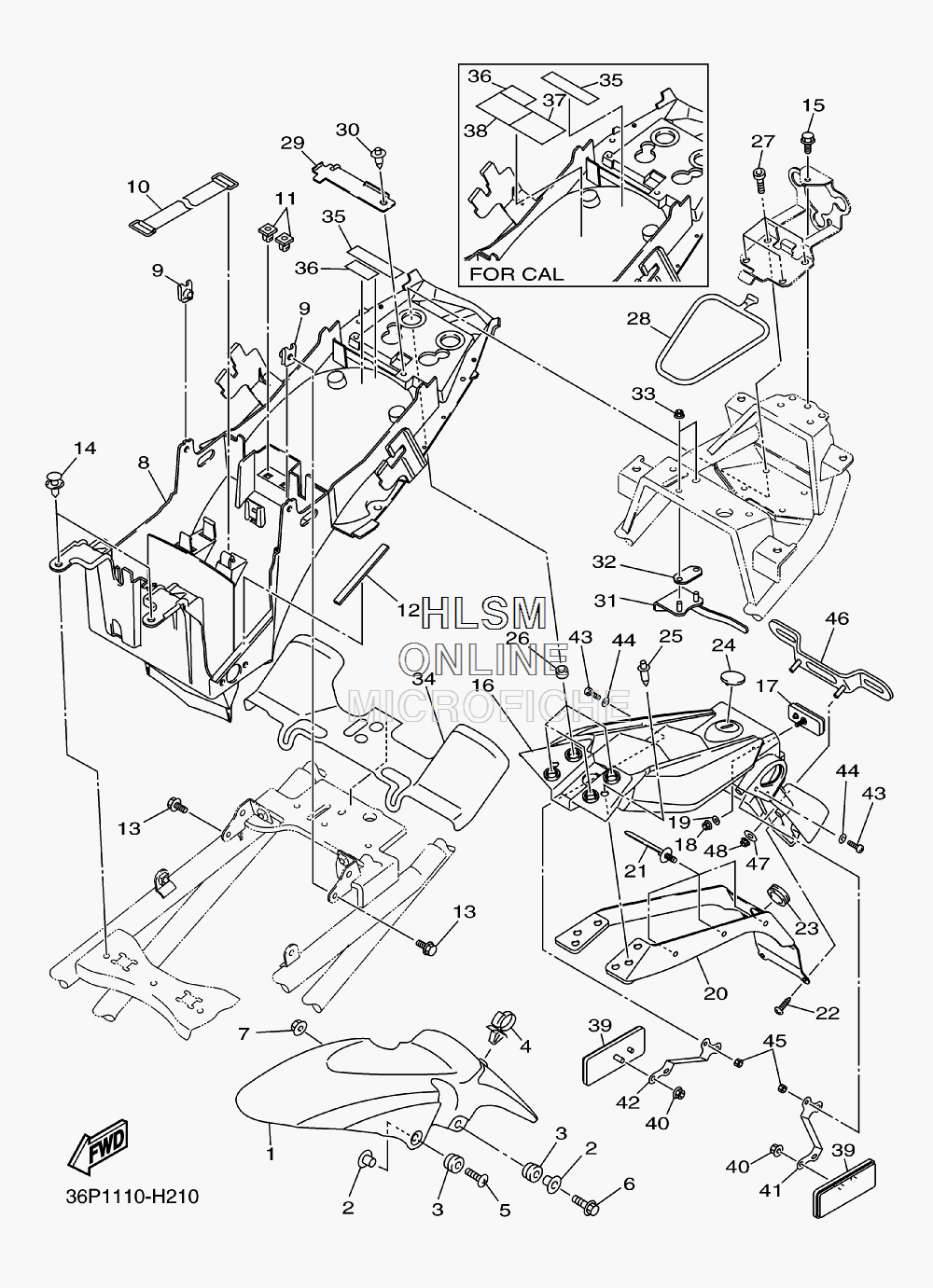

FENDER - FRONT / REAR для Yamaha FZ6R (BLUISH WHITE AND REDDISH YELLOW) - 2009 года выпуска`
-
№АртикулНазвание
-
15VX-21511-A0-P1 FENDER, FRONT (RYC1 - REDDISH YELLOW)FENDER, FRONT (RYC1 - REDDISH YELLOW)
-
15VX-21511-A0-P4 FENDER, FRONT (BWC1 - BLUISH WHITE )FENDER, FRONT (BWC1 - BLUISH WHITE )
-
290387-065J6-00 COLLARCOLLAR
-
390480-12072-00 GROMMETGROMMET
-
490464-18002-00 CLAMPCLAMP
-
590154-06061-00 SCREW, BINDINGSCREW, BINDING
-
695024-06030-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
795702-06500-00 NUT, FLANGENUT, FLANGE
-
820S-21611-00-00 FENDER, REARFENDER, REAR
-
990183-06053-00 NUT, SPRINGNUT, SPRING
-
10120-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1190480-07003-00 GROMMETGROMMET
-
125JW-2174X-00-00 DAMPERDAMPER
-
1395802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1490269-07010-00 RIVETRIVET
-
1595822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1620S-21629-10-00 GUARD, MUDGUARD, MUD
-
173Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1895602-05100-00 NUT, UNUT, U
-
1990201-05043-00 WASHER, PLATEWASHER, PLATE
-
2020S-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
2190464-31001-00 CLAMPCLAMP
-
2290160-05012-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
2390480-23345-00 GROMMETGROMMET
-
248GC-2836B-01-00 TUNING FORK MARKTUNING FORK MARK
-
2590269-07001-00 RIVETRIVET
-
2690387-06232-00 COLLARCOLLAR
-
2791312-08025-00 BOLTBOLT
-
283YX-21376-00-00 BAND, TOOLBAND, TOOL
-
2920S-21677-00-00 PLATE, FITTING 3PLATE, FITTING 3
-
3090269-06008-00 RIVETRIVET
-
3136P-2115J-00-00 BRACKET, HELMET HANGERBRACKET, HELMET HANGER
-
3220S-24792-00-00 PLATEPLATE
-
3395702-06500-00 NUT, FLANGENUT, FLANGE
-
3436P-21639-00-00 DAMPER 2DAMPER 2
-
353JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
363TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
375VX-21684-00-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
-
385VX-2178A-00-00 LABEL (CALIF ONLY)LABEL (CALIF ONLY)
-
393Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4095602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4136P-2164F-00-00 STAY 1STAY 1
-
4236P-2164G-00-00 STAY 2STAY 2
-
4398502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4492902-04600-00 WASHER, PLATEWASHER, PLATE
-
4595602-04100-00 NUT, UNUT, U
-
465MT-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
4790201-06088-00 WASHER, PLATEWASHER, PLATE
-
4895602-06100-00 NUT, UNUT, U
