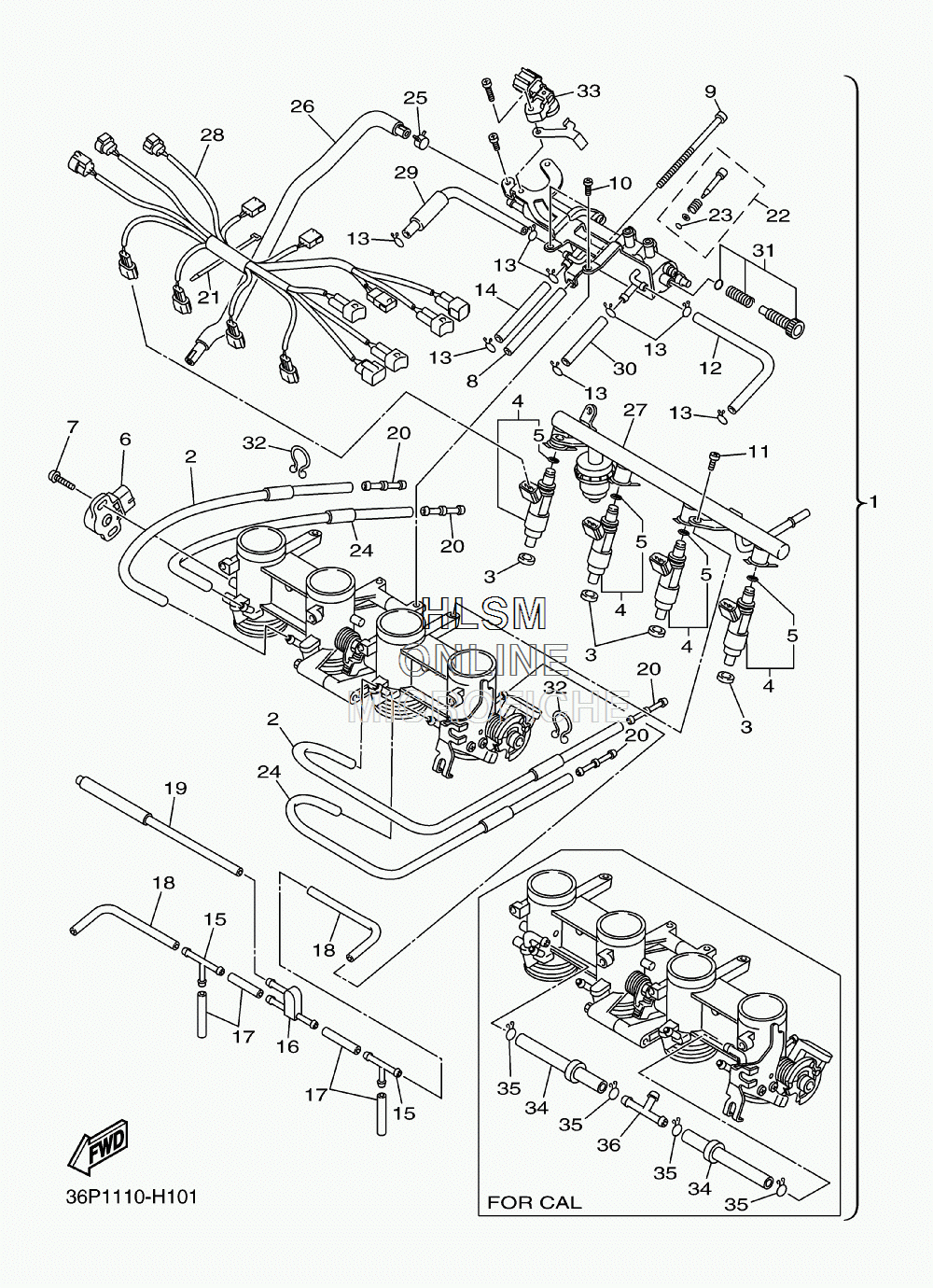

AIR CLEANER W/ INTAKE для Yamaha FZ6R (BLUISH WHITE AND REDDISH YELLOW) - 2009 года выпуска`
-
№АртикулНазвание
-
120S-13750-00-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
136P-13750-00-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
25VX-14348-00-00 ...PIPE 1...PIPE 1
-
38FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
45VX-13761-00-00 ...INJECTOR...INJECTOR
-
55PS-14147-00-00 .........O-RING.........O-RING
-
62D1-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
74KM-24453-00-00 ...SCREW...SCREW
-
85VX-14149-00-00 ...PIPE...PIPE
-
95VX-14565-00-00 ...SCREW...SCREW
-
1098507-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1198507-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
125VX-14396-00-00 ...PIPE...PIPE
-
133UH-14937-00-00 ...CLIP...CLIP
-
145VX-14987-00-00 ...HOSE...HOSE
-
1568V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
163XV-14251-00-00 ...NIPPLE...NIPPLE
-
175FL-14348-10-00 ...PIPE 1...PIPE 1
-
1868V-13533-00-00 ...HOSE, VACUUM SENSING 4...HOSE, VACUUM SENSING 4
-
195VX-1410E-00-00 ...HOSE...HOSE
-
205PW-14251-00-00 ...NIPPLE...NIPPLE
-
214KM-14137-00-00 ......CLIP......CLIP
-
225JW-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
233H1-14147-00-00 ......O-RING......O-RING
-
245VX-14349-00-00 ...PIPE...PIPE
-
2590467-11090-00 ...CLIP...CLIP
-
2620S-1243E-00-00 ...HOSE 2...HOSE 2
-
275VX-13160-00-00 ...DELIVERY PIPE ASSY 1...DELIVERY PIPE ASSY 1
-
2820S-82386-00-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
295VX-13533-00-00 ...HOSE, VACUUM SENSING 4...HOSE, VACUUM SENSING 4
-
305VX-14807-00-00 ...HOSE...HOSE
-
315VX-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
3290464-23041-00 ...CLAMP...CLAMP
-
335S7-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
345VX-14465-01-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
3590467-10008-00 ...CLIP (CALIF ONLY)...CLIP (CALIF ONLY)
-
3690413-08012-00 ...WAY 3 (CALIF ONLY)...WAY 3 (CALIF ONLY)
