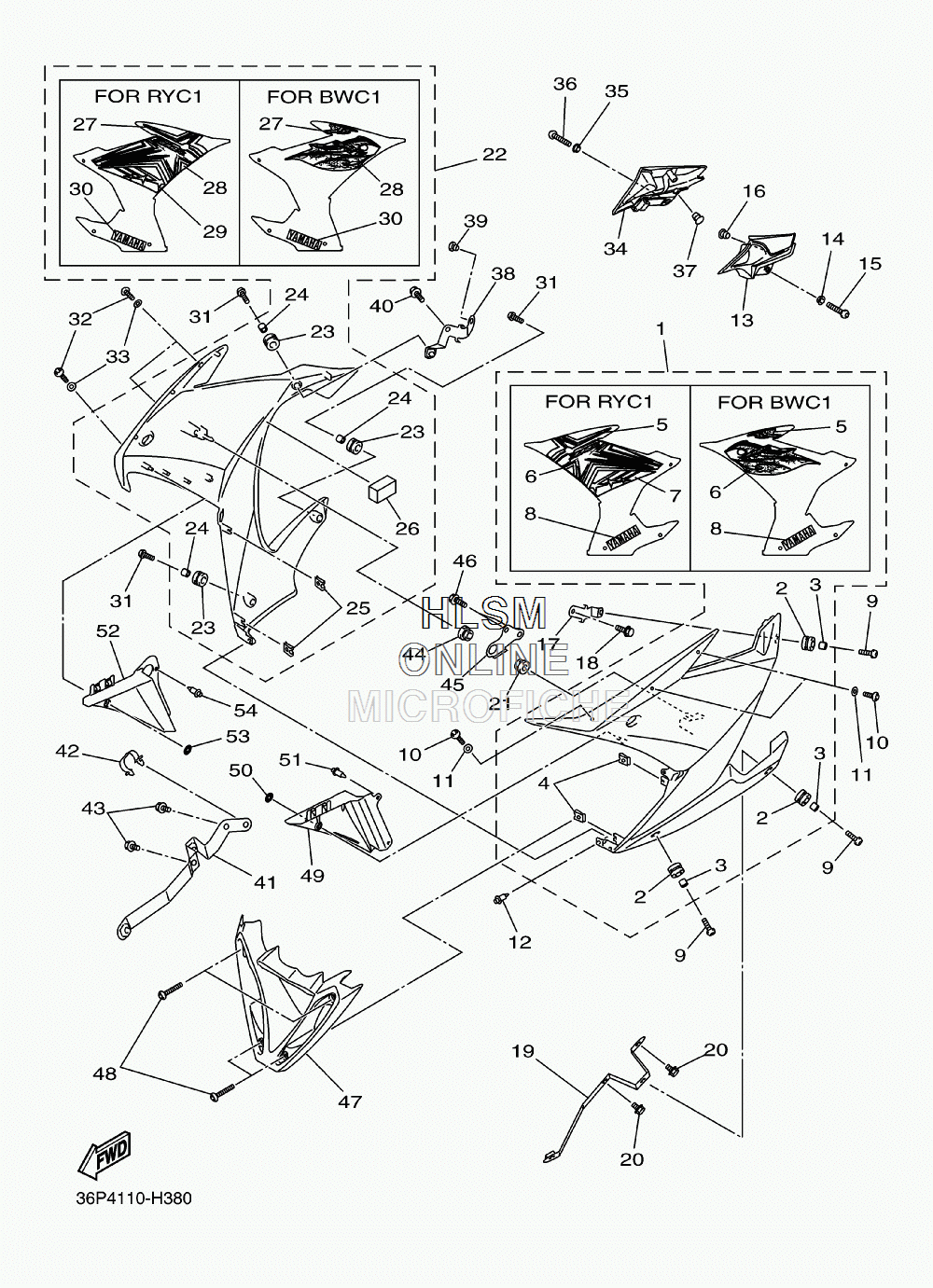

COWLING 2 для Yamaha FZ6R (BLUISH WHITE AND REDDISH YELLOW) - 2009 года выпуска
-
№АртикулНазвание
-
136P-Y283U-30-P3 PANEL ASSEMBLY 1 (BWC1 - BLUISH WHITE)PANEL ASSEMBLY 1 (BWC1 - BLUISH WHITE)
-
136P-Y283U-20-P2 PANEL ASSEMBLY 1 (RYC1 - REDDISH YELLOW)PANEL ASSEMBLY 1 (RYC1 - REDDISH YELLOW)
-
290480-14003-00 ...GROMMET...GROMMET
-
390387-06057-00 ...COLLAR...COLLAR
-
490183-05076-00 ...NUT, SPRING...NUT, SPRING
-
536P-2831Y-00-00 ...GRAPHIC 14 (BWC1 - BLUISH WHITE)...GRAPHIC 14 (BWC1 - BLUISH WHITE)
-
536P-2839G-00-00 ...GRAPHIC, 10 (RYC1 - REDDISH YELLOW)...GRAPHIC, 10 (RYC1 - REDDISH YELLOW)
-
636P-2832C-00-00 ...GRAPHIC 16 (BWC1 - BLUISH WHITE)...GRAPHIC 16 (BWC1 - BLUISH WHITE)
-
636P-2832K-00-00 ...GRAPHIC, 12 (RYC1 - REDDISH YELLOW)...GRAPHIC, 12 (RYC1 - REDDISH YELLOW)
-
736P-2832P-00-00 ...GRAPHIC 18 (RYC1 - REDDISH YELLOW)...GRAPHIC 18 (RYC1 - REDDISH YELLOW)
-
836P-2153E-20-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
990149-06302-00 SCREWSCREW
-
1090111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1190202-05180-00 WASHER, PLATEWASHER, PLATE
-
1290269-06008-00 RIVETRIVET
-
1336P-2171N-00-00 MOLE, SIDE COVER 3MOLE, SIDE COVER 3
-
1490387-06130-00 COLLARCOLLAR
-
1590149-06302-00 SCREWSCREW
-
1690338-07043-00 PLUGPLUG
-
1736P-2833A-00-00 BRACKET 7BRACKET 7
-
1895802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1936P-2836A-00-00 BRACKET 1BRACKET 1
-
2090109-060E9-00 BOLTBOLT
-
2190480-01558-00 GROMMETGROMMET
-
2236P-Y283V-30-P3 PANEL ASSEMBLY 2 (BWC1 - BLUISH WHITE)PANEL ASSEMBLY 2 (BWC1 - BLUISH WHITE)
-
2236P-Y283V-20-P2 PANEL ASSEMBLY 2 (RYC1 - REDDISH YELLOW)PANEL ASSEMBLY 2 (RYC1 - REDDISH YELLOW)
-
2390480-14003-00 ...GROMMET...GROMMET
-
2490387-06057-00 ...COLLAR...COLLAR
-
2590183-05076-00 ...NUT, SPRING...NUT, SPRING
-
262C0-2162G-00-00 ...PLATE 1...PLATE 1
-
2736P-2832B-00-00 ...GRAPHIC 15 (BWC1 - BLUISH WHITE)...GRAPHIC 15 (BWC1 - BLUISH WHITE)
-
2736P-2839J-00-00 ...GRAPHIC, 11 (RYC1 - REDDISH YELLOW)...GRAPHIC, 11 (RYC1 - REDDISH YELLOW)
-
2836P-2832D-00-00 ...GRAPHIC 17 (BWC1 - BLUISH WHITE)...GRAPHIC 17 (BWC1 - BLUISH WHITE)
-
2836P-2832L-00-00 ...GRAPHIC, 13 (RYC1 - REDDISH YELLOW)...GRAPHIC, 13 (RYC1 - REDDISH YELLOW)
-
2936P-283B3-00-00 ...GRAPHIC, 19 (RYC1 - REDDISH YELLOW)...GRAPHIC, 19 (RYC1 - REDDISH YELLOW)
-
3036P-2153E-20-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
3190149-06302-00 SCREWSCREW
-
3290111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3390202-05180-00 WASHER, PLATEWASHER, PLATE
-
3436P-2171R-00-00 MOLE, SIDE COVER 4MOLE, SIDE COVER 4
-
3590387-06130-00 COLLARCOLLAR
-
3690149-06302-00 SCREWSCREW
-
3790338-07043-00 PLUGPLUG
-
3836P-2833E-00-00 BRACKET 8BRACKET 8
-
3990338-07157-00 PLUGPLUG
-
4095802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4136P-2836E-00-00 BRACKET 2BRACKET 2
-
4290464-24230-00 CLAMPCLAMP
-
4390109-060E9-00 BOLTBOLT
-
4490480-01558-00 GROMMETGROMMET
-
4520S-21843-00-00 STAY, 4STAY, 4
-
4695822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4736P-22863-00-00 COVER, UNDERCOVER, UNDER
-
4890111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4936P-2836N-00-00 PANEL, INNER 4PANEL, INNER 4
-
5090183-05M02-00 NUT, SPRINGNUT, SPRING
-
5190269-06008-00 RIVETRIVET
-
5236P-2836R-00-00 PANEL, INNER 5PANEL, INNER 5
-
5390183-05M02-00 NUT, SPRINGNUT, SPRING
-
5490269-06008-00 RIVETRIVET
