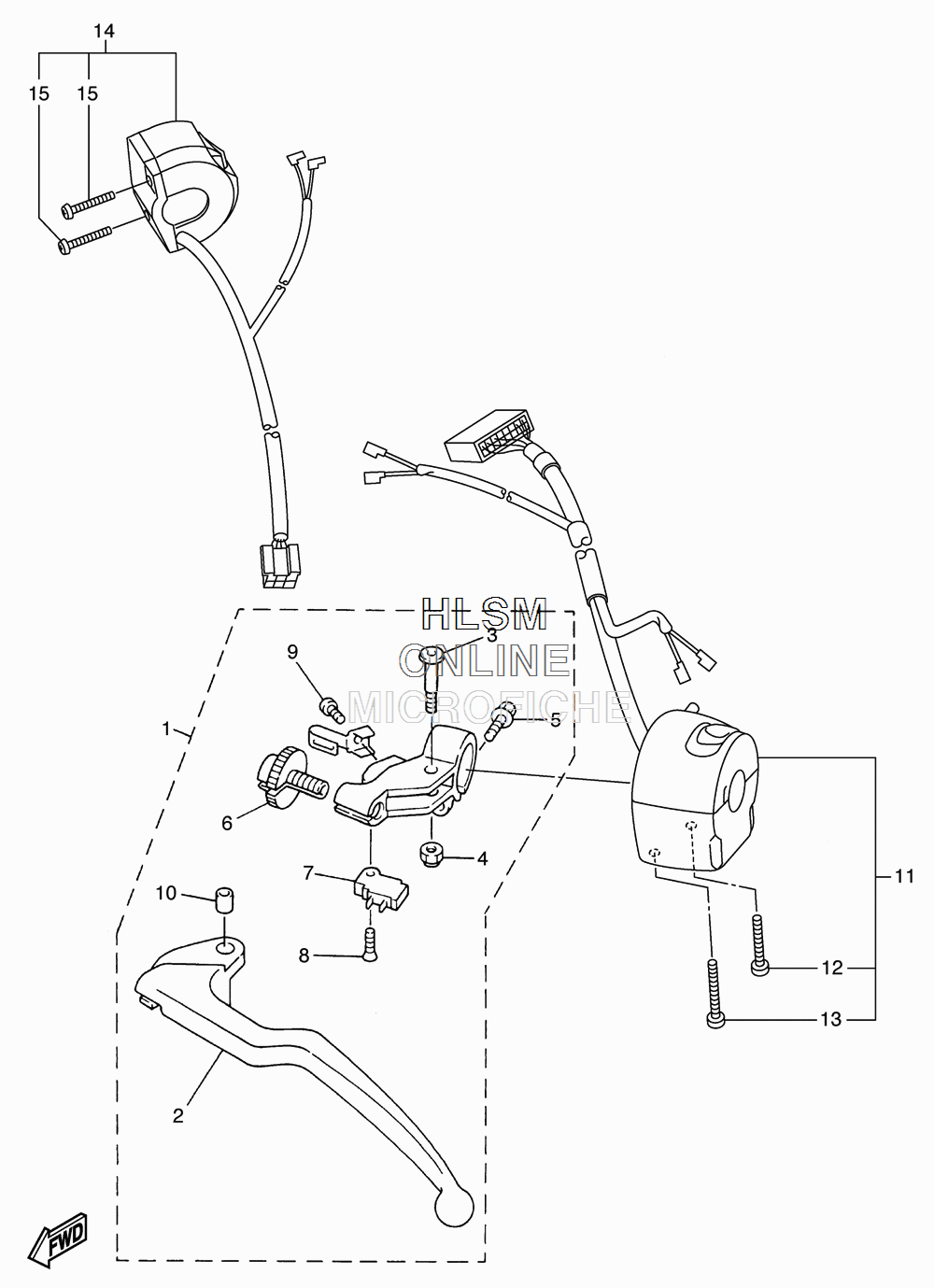

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha FZ1 - 2009 года выпуска`
-
№АртикулНазвание
-
14XV-82910-15-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
24XV-83912-11-00 LEVER 1LEVER 1
-
32C0-83945-00-00 BOLT, LEVERBOLT, LEVER
-
495607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
595027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
65LV-83951-00-00 BOLT, CABLE ADJUSTINGBOLT, CABLE ADJUSTING
-
74XV-82917-01-00 SWITCHSWITCH
-
898707-03016-00 SCREW, OVAL HEADSCREW, OVAL HEAD
-
998507-04010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
105JJ-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
113C3-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
1298507-05030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1398507-05045-00 SCREW, PAN HEADSCREW, PAN HEAD
-
142D1-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
1598507-05022-00 SCREW, PAN HEADSCREW, PAN HEAD
