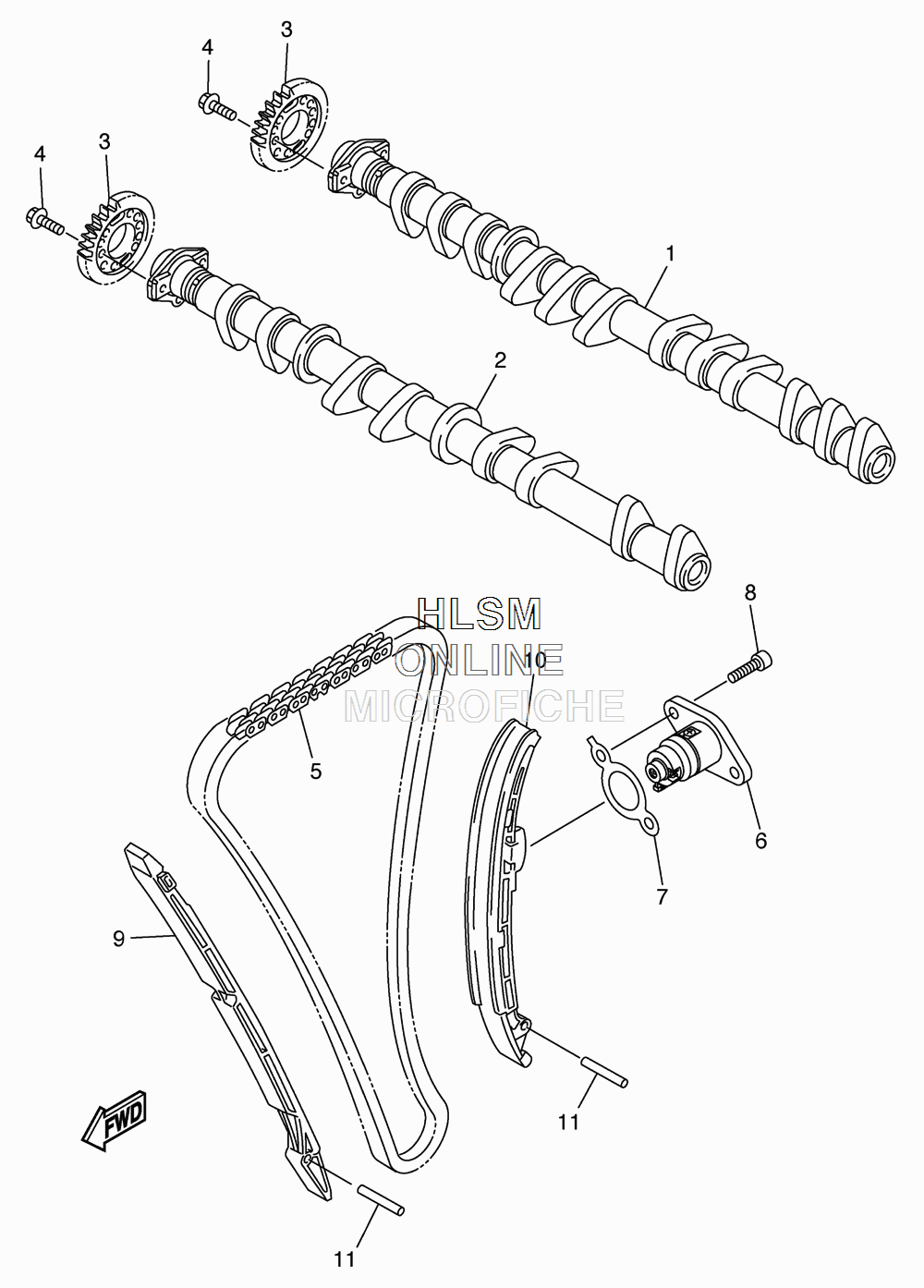

CAMSHAFT W/ CHAIN для Yamaha FZ1 - 2009 года выпуска`
-
№АртикулНазвание
-
12D1-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
22D1-12180-10-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
34C8-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07006-00 BOLT, FLANGEBOLT, FLANGE
-
594591-60122-00 CHAINCHAIN
-
65VY-12210-20-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
72D1-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
891314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
95VY-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
105VY-12252-01-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1193607-44002-00 PIN, DOWELPIN, DOWEL
