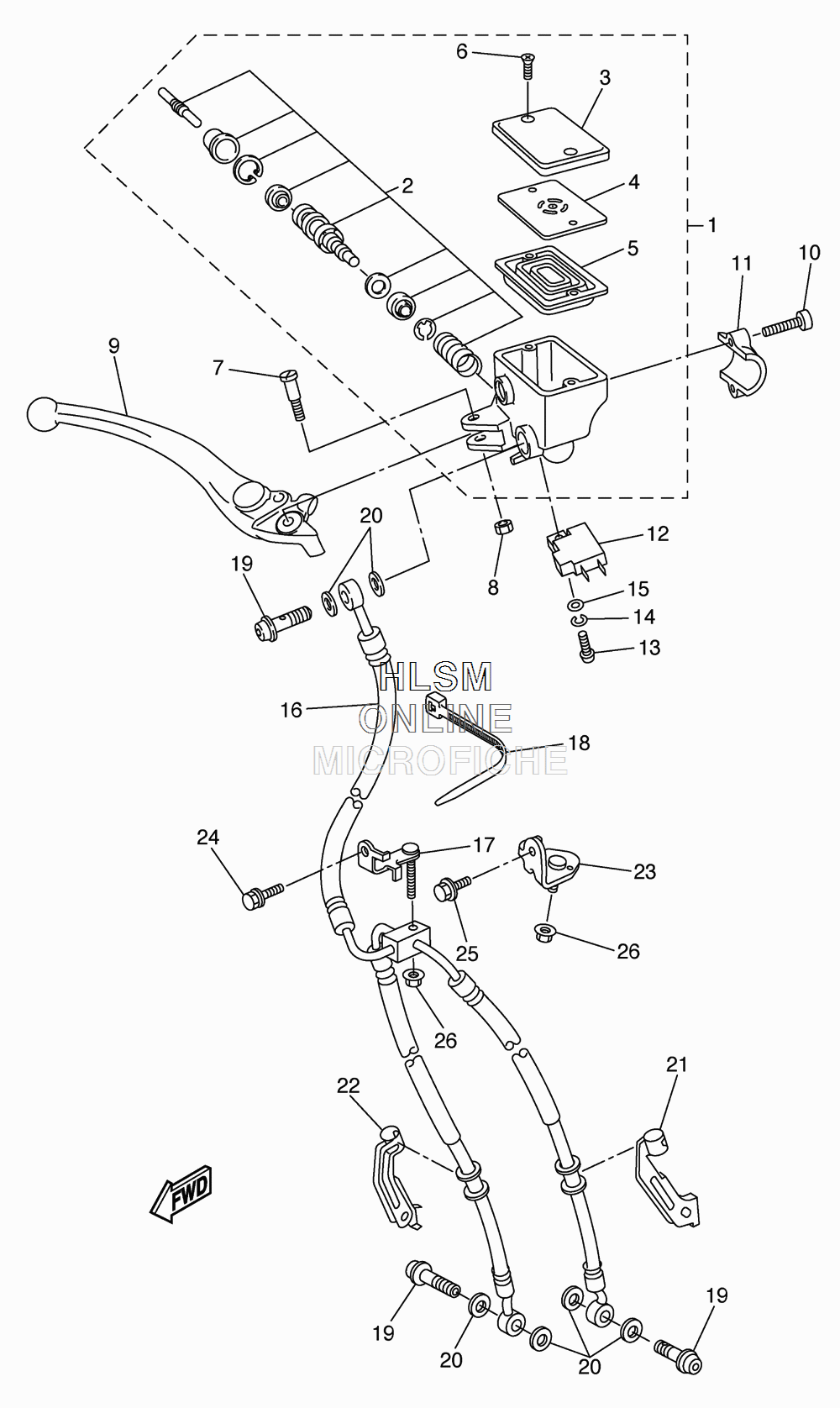

BRAKE - FRONT MASTER CYLINDER для Yamaha FZ1 - 2009 года выпуска`
-
№АртикулНазвание
-
13C3-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
22D1-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
35VS-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
45VS-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
55VS-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
65VS-2589H-00-00 SCREWSCREW
-
75VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
895617-06100-00 NUT, UNUT, U
-
95VS-83922-00-00 LEVER 2LEVER 2
-
105VS-26332-00-00 BOLTBOLT
-
115VS-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
124HM-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1398502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492902-04100-00 WASHER, SPRINGWASHER, SPRING
-
1592902-04600-00 WASHER, PLATEWASHER, PLATE
-
163C3-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
172D1-23857-00-00 HOLDERHOLDER
-
183MA-82591-00-00 BANDBAND
-
1990401-10172-00 BOLT, UNIONBOLT, UNION
-
2090430-10005-00 GASKETGASKET
-
212D1-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
222D1-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
233C3-23378-00-00 BRACKET, HORNBRACKET, HORN
-
2495812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2590105-06085-00 BOLT, FLANGEBOLT, FLANGE
-
2695702-06500-00 NUT, FLANGENUT, FLANGE
