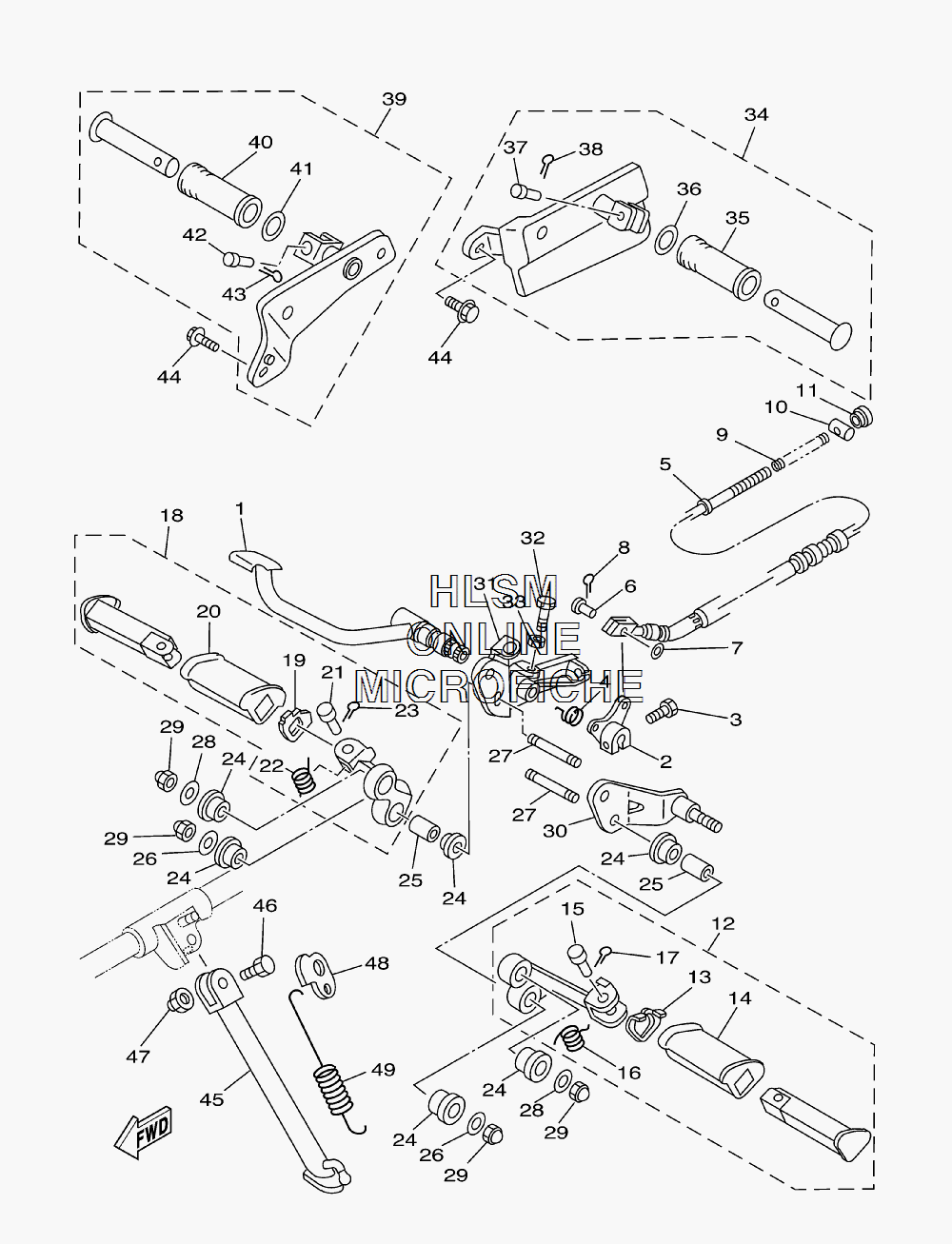

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha V STAR 250 - 2008 года выпуска`
-
№АртикулНазвание
-
12UJ-27211-01-00 PEDAL, BRAKEPEDAL, BRAKE
-
22UJ-27262-02-00 LEVERLEVER
-
397024-06020-00 BOLT (3DM)BOLT (3DM)
-
42UJ-27216-00-00 SPRING, RETURNSPRING, RETURN
-
52UJ-26351-00-00 CABLE, BRAKECABLE, BRAKE
-
691701-06018-00 PIN, CLEVISPIN, CLEVIS
-
792907-06200-00 WASHER (6TA)WASHER (6TA)
-
891401-20012-00 PIN, COTTERPIN, COTTER
-
990501-10245-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1090249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
1190179-06411-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
122UJ-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
134X7-27417-00-00 ...WASHER, FOOTREST...WASHER, FOOTREST
-
144X7-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
1590240-08084-00 ...PIN, CLEVIS...PIN, CLEVIS
-
1690508-20023-00 ...SPRING, TORSION...SPRING, TORSION
-
1791401-25015-00 ...PIN, COTTER...PIN, COTTER
-
182UJ-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
194X7-27417-00-00 ...WASHER, FOOTREST...WASHER, FOOTREST
-
204X7-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
2190240-08084-00 ...PIN, CLEVIS...PIN, CLEVIS
-
2290508-20023-00 ...SPRING, TORSION...SPRING, TORSION
-
2391401-25015-00 ...PIN, COTTER...PIN, COTTER
-
242UJ-27414-00-00 DAMPER, FOOTRESTDAMPER, FOOTREST
-
2590387-100V6-00 COLLAR (2UJ)COLLAR (2UJ)
-
2690201-100A1-00 WASHER, PLATEWASHER, PLATE
-
2790116-10519-00 BOLT, STUDBOLT, STUD
-
2890201-10742-00 WASHER, PLATEWASHER, PLATE
-
2995304-10800-00 NUT, CROWNNUT, CROWN
-
302UJ-2741L-00-33 BRACKET 4 (BLACK)BRACKET 4 (BLACK)
-
312UJ-2742L-00-33 BRACKET 5 (BLACK)BRACKET 5 (BLACK)
-
3290153-06008-00 SCREW, HEXAGONSCREW, HEXAGON
-
3395307-06700-00 NUT (JN5)NUT (JN5)
-
342UJ-27430-00-35 REAR FOOTREST ASSY 1 (SILVER)REAR FOOTREST ASSY 1 (SILVER)
-
35120-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
3690201-20279-00 ...WASHER, PLATE...WASHER, PLATE
-
3791701-06032-00 ...PIN, CLEVIS...PIN, CLEVIS
-
3891401-20012-00 ...PIN, COTTER...PIN, COTTER
-
392UJ-27440-00-35 REAR FOOTREST ASSY 2 (SILVER)REAR FOOTREST ASSY 2 (SILVER)
-
40120-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
4190201-20279-00 ...WASHER, PLATE...WASHER, PLATE
-
4291701-06032-00 ...PIN, CLEVIS...PIN, CLEVIS
-
4391401-20012-00 ...PIN, COTTER...PIN, COTTER
-
4495024-08020-00 BOLT, FLANGE (2UJ)BOLT, FLANGE (2UJ)
-
452UJ-27311-01-00 STAND, SIDESTAND, SIDE
-
4690109-10474-00 BOLT (2GH)BOLT (2GH)
-
4790185-10037-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
482KT-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
492UJ-27316-00-00 SPRING, SIDE STANDSPRING, SIDE STAND
