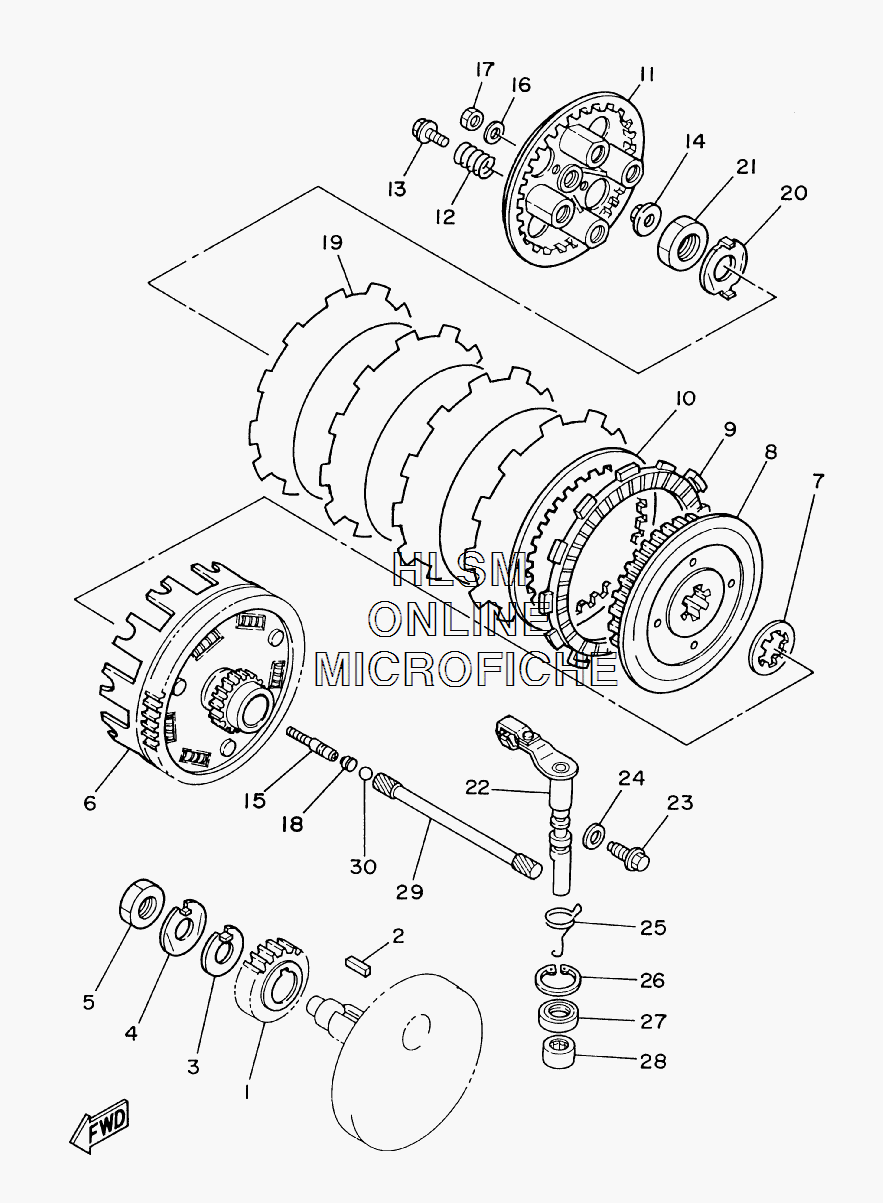

CLUTCH для Yamaha V STAR 250 - 2008 года выпуска`
-
№АртикулНазвание
-
13Y6-16111-03-00 GEAR, PRIMARY DRIVE (23T)GEAR, PRIMARY DRIVE (23T)
-
290282-07023-00 KEY, STRAIGHTKEY, STRAIGHT
-
390215-16156-00 WASHER, LOCKWASHER, LOCK
-
490215-16222-00 WASHER, LOCKWASHER, LOCK
-
590170-16256-00 NUTNUT
-
62UJ-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
730X-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
830X-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
95Y1-16331-01-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
103J2-16324-00-00 PLATE, CLUTCH 1 (T=2.0)PLATE, CLUTCH 1 (T=2.0)
-
1130X-16351-02-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1290501-26148-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1390159-06016-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
141W1-16358-01-00 PLATE, PUSHPLATE, PUSH
-
154DN-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
1692907-06200-00 WASHER (6TA)WASHER (6TA)
-
1795307-06600-00 NUTNUT
-
183YX-1635A-00-00 SEAL, ROD PUSHSEAL, ROD PUSH
-
1931A-16321-01-00 PLATE, FRICTIONPLATE, FRICTION
-
2090215-16320-00 WASHER, LOCKWASHER, LOCK
-
2190170-16326-00 NUTNUT
-
222UJ-16380-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
2390149-08067-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
2490430-08119-00 GASKETGASKET
-
2590508-14433-00 SPRING, TORSIONSPRING, TORSION
-
2693420-28055-00 CIRCLIP, R-TYPECIRCLIP, R-TYPE
-
2793102-14209-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
2893315-31428-00 BEARING, CYL.#15BEARING, CYL.#15
-
292UJ-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
3093511-32017-00 BALLBALL
