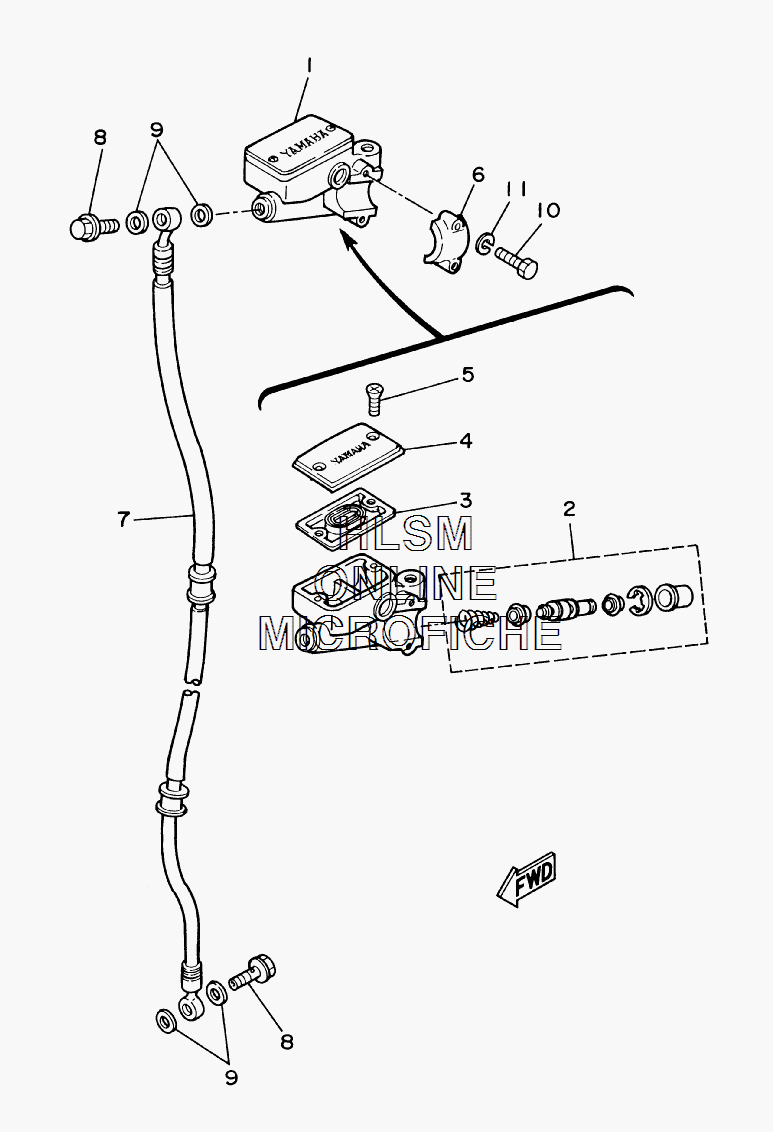

BRAKE - FRONT MASTER CYLINDER для Yamaha V STAR 250 - 2008 года выпуска`
-
№АртикулНазвание
-
12UJ-25870-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
24L0-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34L0-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
44H7-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
598706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
64L0-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
73DN-25872-01-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
890401-10020-00 BOLT, UNIONBOLT, UNION
-
990430-10005-00 GASKETGASKET
-
1097007-06025-00 BOLTBOLT
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
