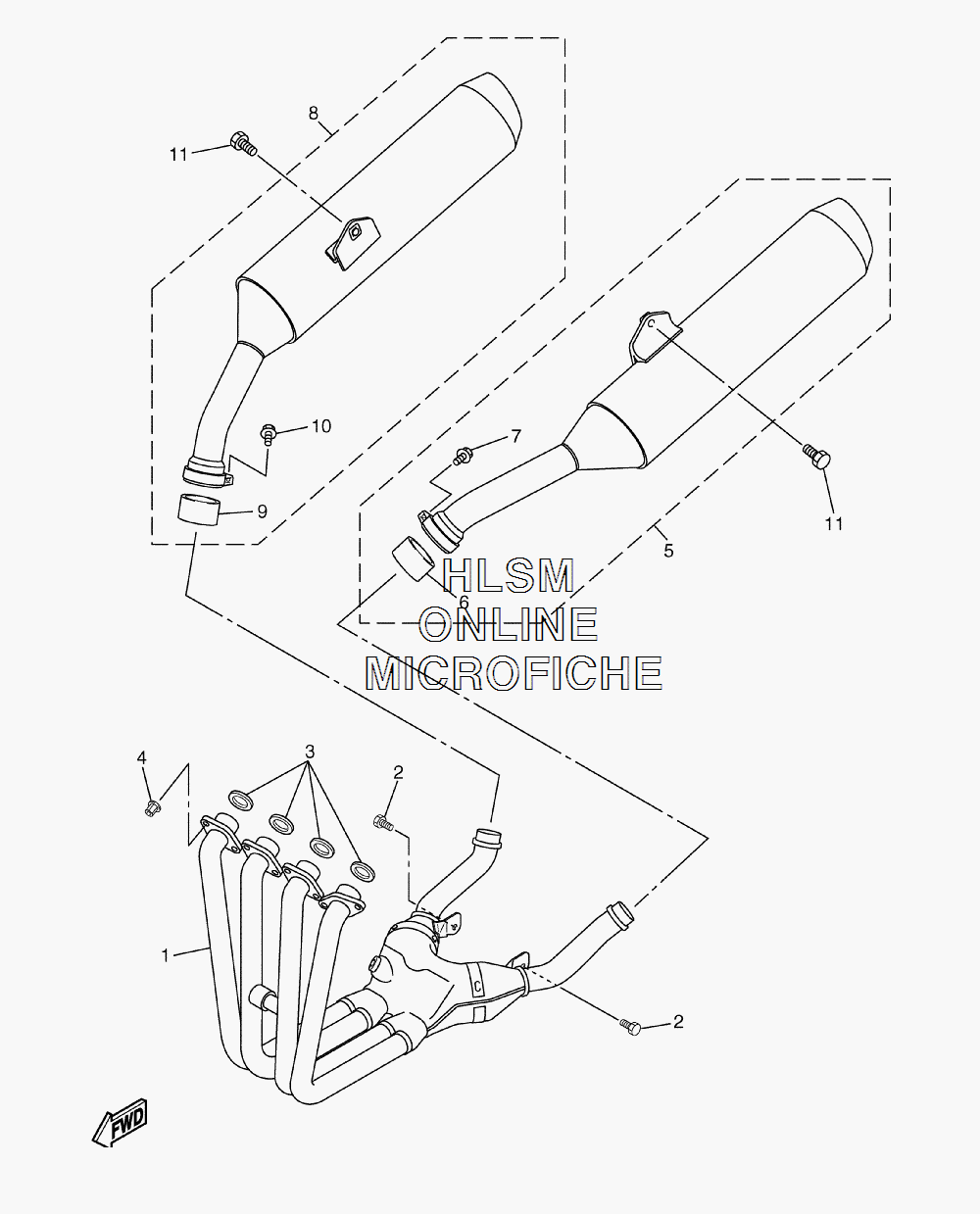

EXHAUST для Yamaha FJR1300AE - 2008 года выпуска`
-
№АртикулНазвание
-
15JW-14602-02-00 EXHAUST PIPE COMP.EXHAUST PIPE COMP.
-
290110-08068-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
34FM-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
490179-08673-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
53P6-14710-10-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
63XW-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
795814-08025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
83P6-14720-10-00 MUFFLER ASSY 2MUFFLER ASSY 2
-
93XW-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
1095814-08025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1195814-10040-00 BOLT, FLANGEBOLT, FLANGE
