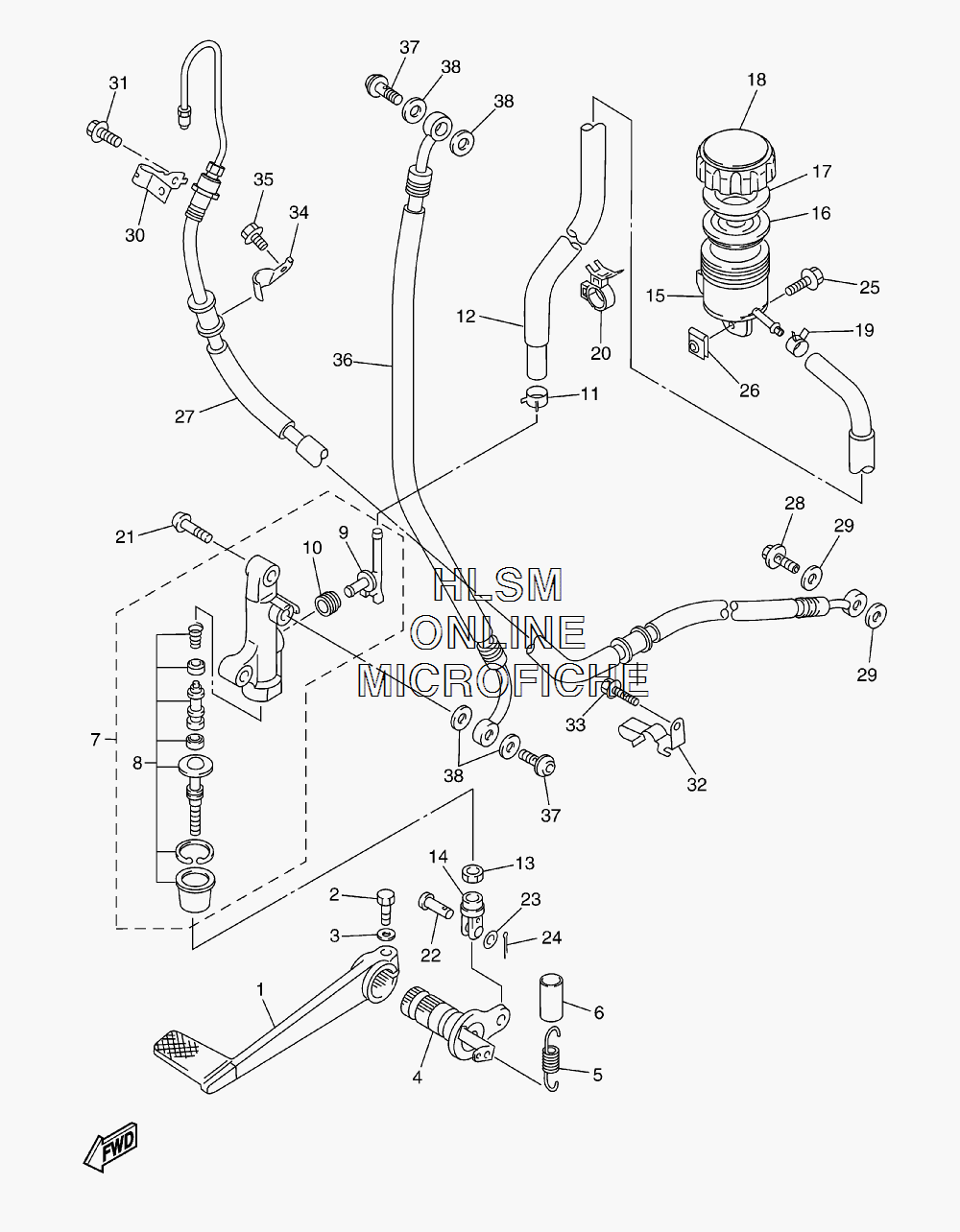

BRAKE - REAR MASTER CYLINDER для Yamaha FJR1300AE - 2008 года выпуска`
-
№АртикулНазвание
-
15JW-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
290109-06468-00 BOLTBOLT
-
392990-06600-00 WASHERWASHER
-
45JW-27212-00-00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
590506-25001-00 SPRING, TENSIONSPRING, TENSION
-
690446-17346-00 HOSE (3GM)HOSE (3GM)
-
73P6-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
83P6-W0042-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
95VS-2582A-00-00 ...JOINT...JOINT
-
104BP-2585F-01-00 ...O-RING...O-RING
-
1190467-090A0-00 CLIPCLIP
-
123P6-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1390170-08010-00 NUTNUT
-
145SL-27222-00-00 JOINTJOINT
-
153P6-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
165VY-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
175VY-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
185VY-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
1990467-090A0-00 CLIPCLIP
-
2090464-15192-00 CLAMPCLAMP
-
2192017-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2291701-06018-00 PIN, CLEVISPIN, CLEVIS
-
2392907-06200-00 WASHER (6TA)WASHER (6TA)
-
2491401-16012-00 PIN, COTTERPIN, COTTER
-
2590109-05007-00 BOLTBOLT
-
2690183-050A6-00 NUT, SPRINGNUT, SPRING
-
273P6-2581K-10-00 HOSE, BRAKE 5HOSE, BRAKE 5
-
2890401-10020-00 BOLT, UNIONBOLT, UNION
-
2990430-10005-00 GASKETGASKET
-
303P6-2588G-00-00 HOLDER, BRAKE HOSE 6HOLDER, BRAKE HOSE 6
-
3195022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
323P6-25876-10-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
3395022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
345VS-2588G-00-00 HOLDER, BRAKE HOSE 6HOLDER, BRAKE HOSE 6
-
3595022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
363P6-2581J-10-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
3790401-10020-00 BOLT, UNIONBOLT, UNION
-
3890430-10005-00 GASKETGASKET
