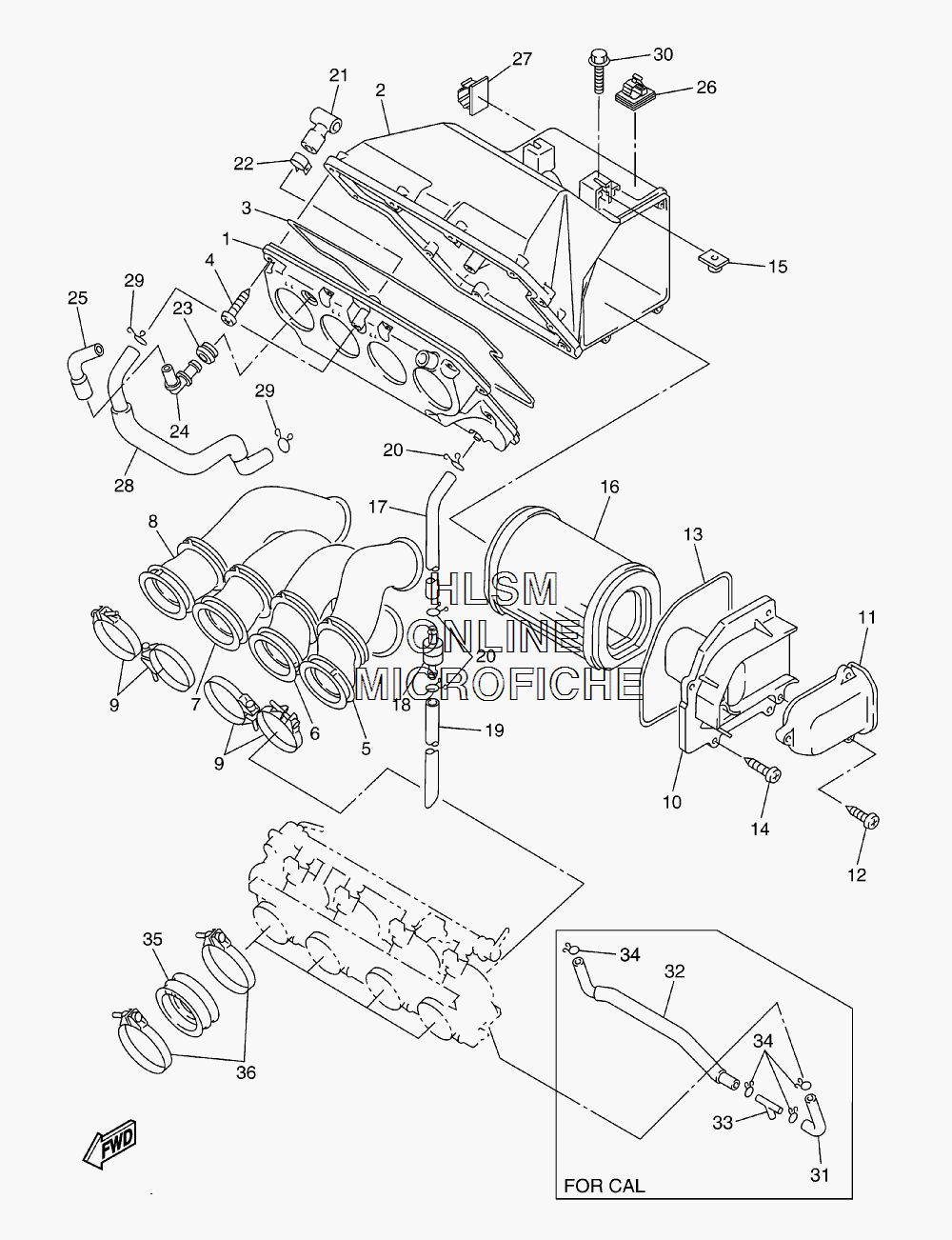

AIR CLEANER W/ INTAKE для Yamaha FJR1300AE - 2008 года выпуска`
-
№АртикулНазвание
-
15JW-14411-10-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
25JW-14421-10-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
34XV-14452-00-00 SEALSEAL
-
497702-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
55JW-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
65JW-14463-00-00 JOINT, AIR CLEANER 2JOINT, AIR CLEANER 2
-
75JW-14454-10-00 JOINTJOINT
-
85JW-14568-00-00 JOINTJOINT
-
990450-57012-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
105JW-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
115JW-14437-00-00 DUCTDUCT
-
1297702-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
135JW-14452-00-00 SEALSEAL
-
1497702-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
1531A-14477-10-00 PLATEPLATE
-
165JW-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1790445-11452-00 HOSE (L125)HOSE (L125)
-
184X7-2149Y-00-00 FILTER ASSYFILTER ASSY
-
1990445-11003-00 HOSE (L280)HOSE (L280)
-
2090467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
215JW-14419-00-00 PIPEPIPE
-
2290468-08104-00 CLIPCLIP
-
2331A-14435-00-00 GROMMETGROMMET
-
245JW-14149-00-00 PIPEPIPE
-
255JW-14485-00-00 PIPE, JOINTPIPE, JOINT
-
2690464-62085-00 CLAMPCLAMP
-
2790464-20014-00 CLAMPCLAMP
-
285JW-11166-10-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2990467-14015-00 CLIP, SCISSORCLIP, SCISSOR
-
3095822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
315JW-14465-01-00 PIPEPIPE
-
325JW-14466-01-00 PIPEPIPE
-
333H3-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
3490467-100A1-00 CLIPCLIP
-
355JW-13597-00-00 JOINT, CARBURETOR 3JOINT, CARBURETOR 3
-
3690450-63005-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
