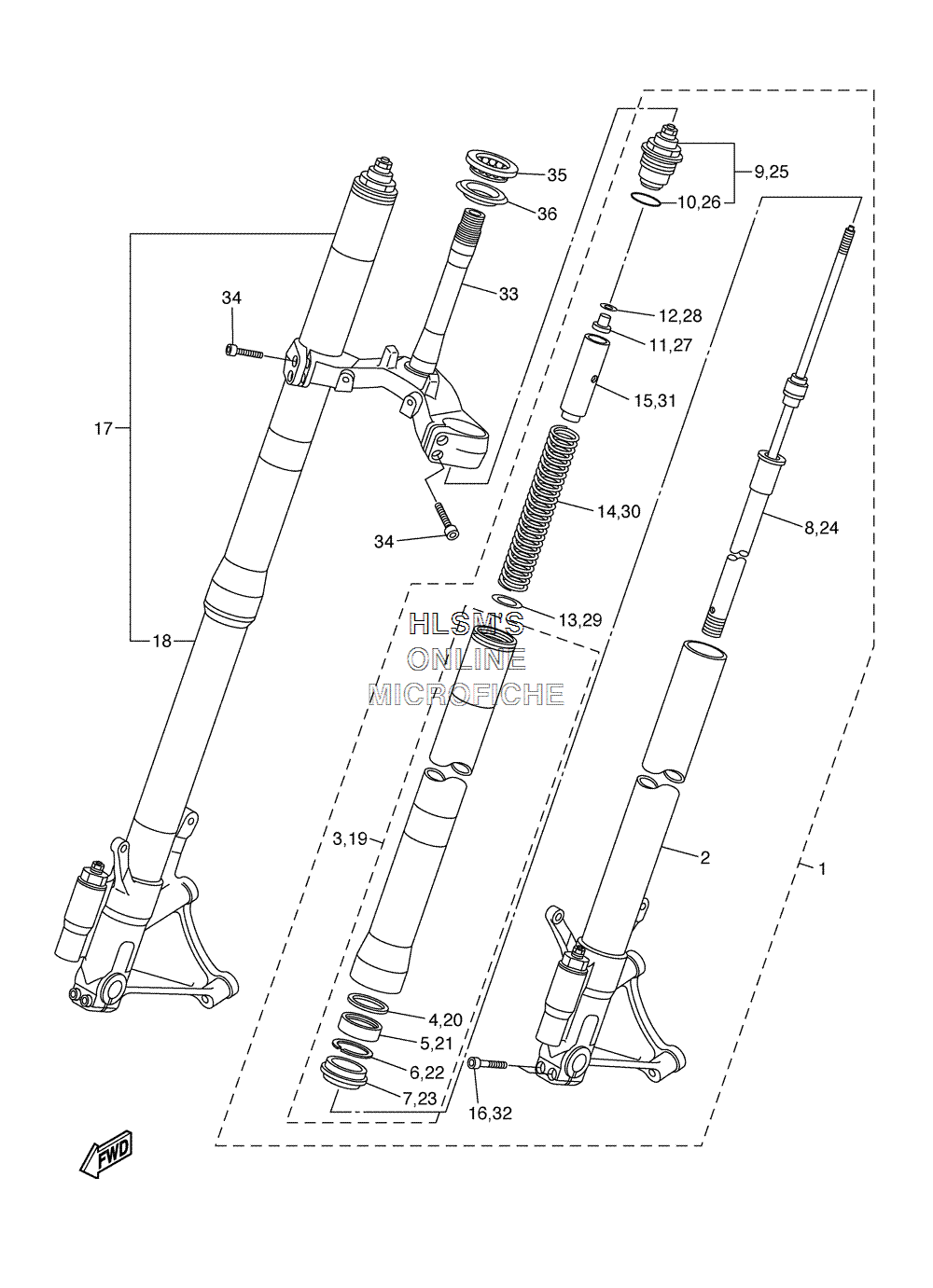

SUSPENSION - FRONT FORK для Yamaha YZF-R6 - 2006 года выпуска`
-
№АртикулНазвание
-
12C0-23102-00-00 FRONT FORK ASSY (L.H) FOR DPBMCFRONT FORK ASSY (L.H) FOR DPBMC
-
12C0-23102-10-00 FRONT FORK ASSY (L.H) FOR SMXFRONT FORK ASSY (L.H) FOR SMX
-
22C0-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
32C0-23106-00-00 ...OUTER TUBE COMP. (L.H) FOR DPBMC...OUTER TUBE COMP. (L.H) FOR DPBMC
-
32C0-23106-10-00 ...OUTER TUBE COMP. (L.H) FOR SMX...OUTER TUBE COMP. (L.H) FOR SMX
-
43VD-23115-00-00 ......GUIDE, COVER UPPER......GUIDE, COVER UPPER
-
55VU-23145-00-00 ......OIL SEAL......OIL SEAL
-
63VD-23156-00-00 ......CLIP, OIL SEAL......CLIP, OIL SEAL
-
73VD-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
82C0-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
92C0-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1093210-41N50-00 ......O-RING......O-RING
-
115YU-23393-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
125YU-2332N-00-00 ...PLATE, VALVE 2...PLATE, VALVE 2
-
132C0-23143-00-00 ...SEAT, SPRING LOWER...SEAT, SPRING LOWER
-
142C0-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
152C0-2331L-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
1691314-08040-00 ...BOLT...BOLT
-
172C0-23103-00-00 FRONT FORK ASSY (R.H) FOR DPBMCFRONT FORK ASSY (R.H) FOR DPBMC
-
172C0-23103-10-00 FRONT FORK ASSY (R.H) FOR SMXFRONT FORK ASSY (R.H) FOR SMX
-
182C0-23120-00-00 ...INNER TUBE COMP. 2...INNER TUBE COMP. 2
-
192C0-23106-00-00 ...OUTER TUBE COMP. (L.H) FOR DPBMC...OUTER TUBE COMP. (L.H) FOR DPBMC
-
192C0-23106-10-00 ...OUTER TUBE COMP. (L.H) FOR SMX...OUTER TUBE COMP. (L.H) FOR SMX
-
203VD-23115-00-00 ......GUIDE, COVER UPPER......GUIDE, COVER UPPER
-
215VU-23145-00-00 ......OIL SEAL......OIL SEAL
-
223VD-23156-00-00 ......CLIP, OIL SEAL......CLIP, OIL SEAL
-
233VD-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
242C0-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
252C0-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
2693210-41N50-00 ......O-RING......O-RING
-
275YU-23393-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
285YU-2332N-00-00 ...PLATE, VALVE 2...PLATE, VALVE 2
-
292C0-23143-00-00 ...SEAT, SPRING LOWER...SEAT, SPRING LOWER
-
302C0-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
312C0-2331L-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
3291314-08040-00 ...BOLT...BOLT
-
332C0-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3491314-08030-00 BOLTBOLT
-
3593399-99957-00 BEARINGBEARING
-
363FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
