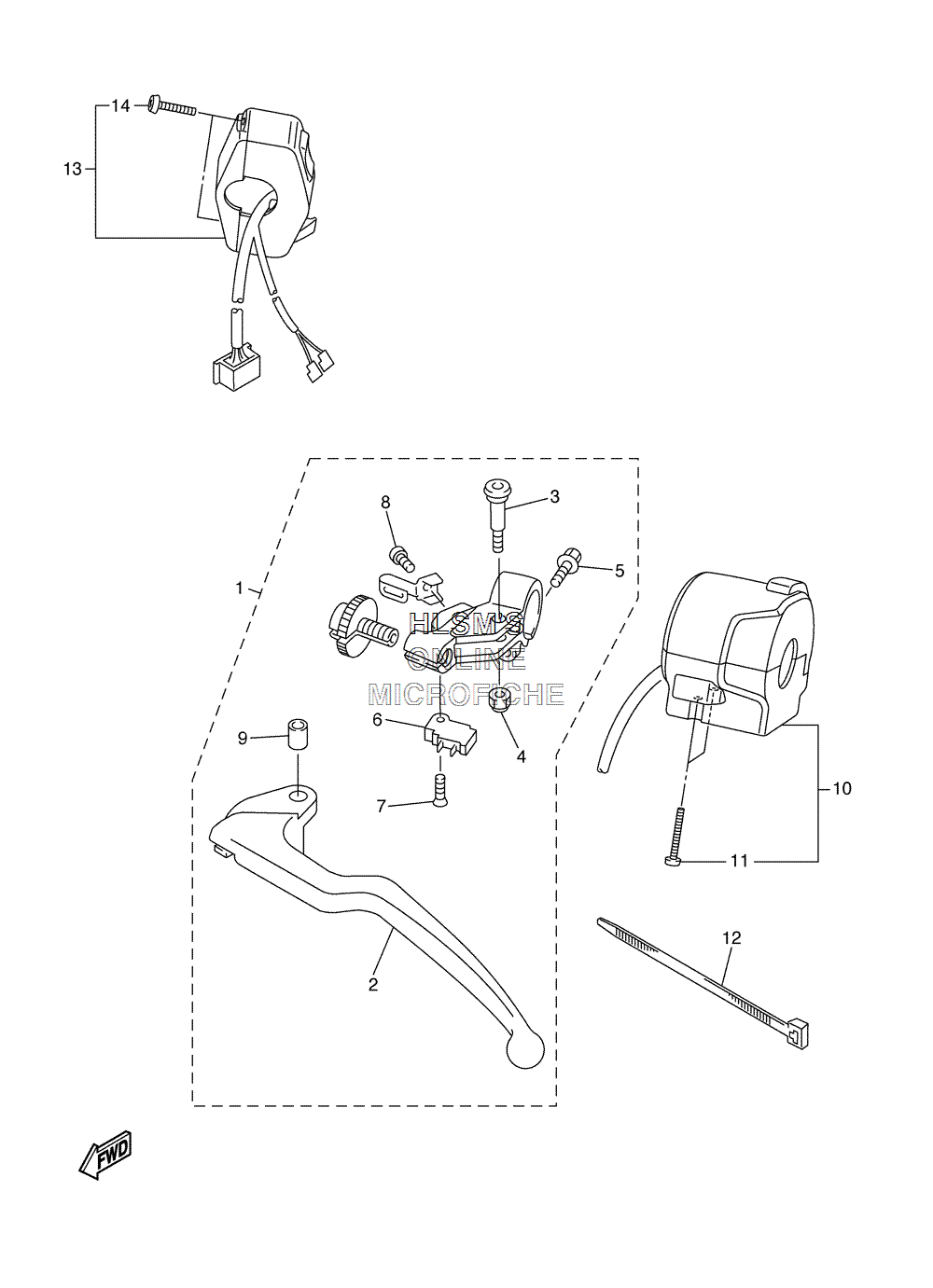

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha YZF-R6 - 2006 года выпуска`
-
№АртикулНазвание
-
12C0-82910-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
25EB-83912-02-00 ...LEVER 1...LEVER 1
-
32C0-83945-00-00 ...BOLT, LEVER...BOLT, LEVER
-
495607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
595027-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
64XV-82917-01-00 ...SWITCH...SWITCH
-
798707-03016-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
898507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
95JJ-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
-
102C0-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1198507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
123MA-82591-00-00 BANDBAND
-
132C0-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
1498507-05022-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
