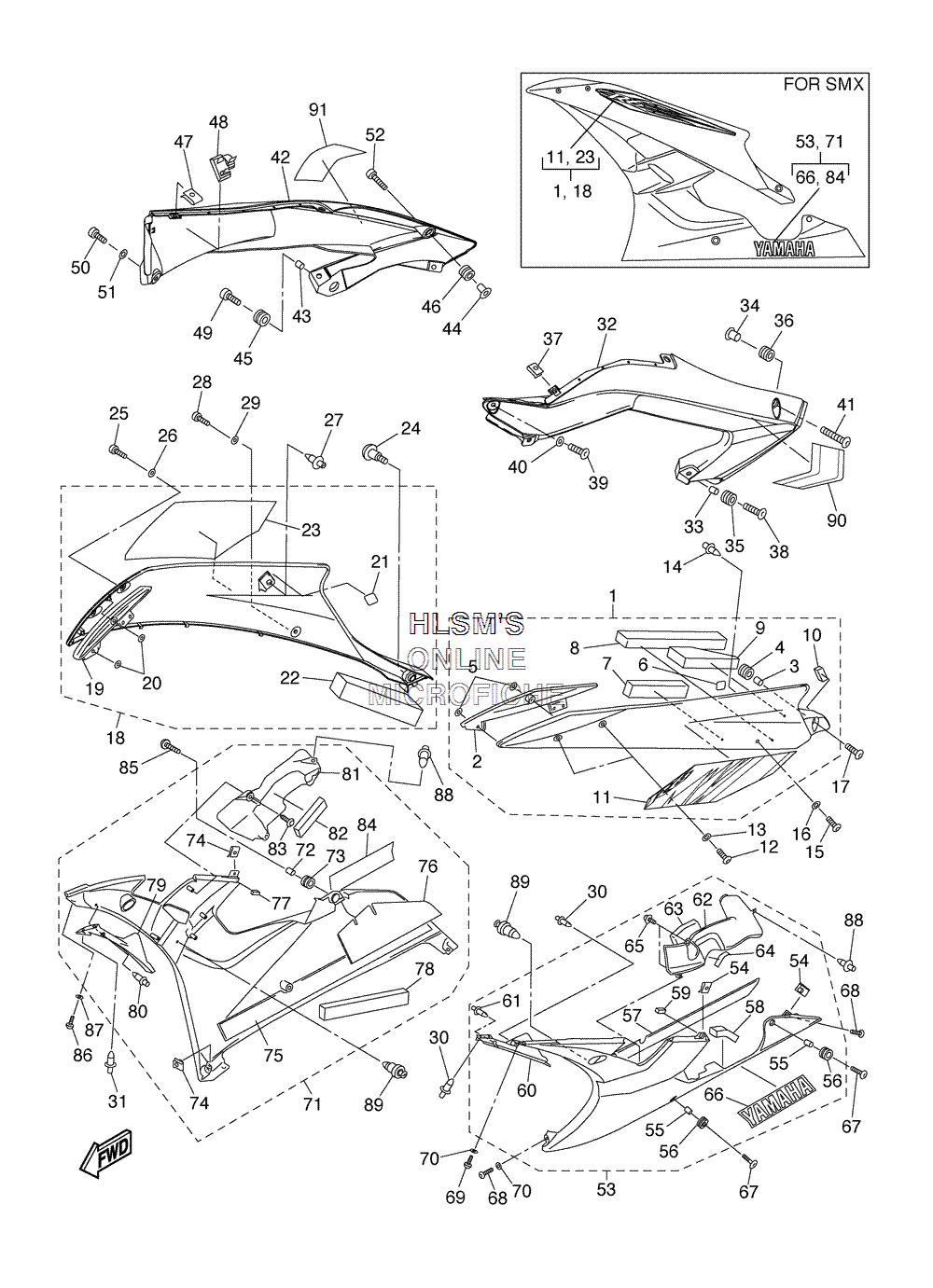

COWLING 2 для Yamaha YZF-R6 - 2006 года выпуска
-
№АртикулНазвание
-
12C0-Y283U-40-P0 PANEL ASSEMBLY 1 (DPBMC)PANEL ASSEMBLY 1 (DPBMC)
-
12C0-Y283U-20-P2 PANEL ASSEMBLY 1 (MBL2 FOR SMX)PANEL ASSEMBLY 1 (MBL2 FOR SMX)
-
22C0-28219-00-00 ...COVER 1...COVER 1
-
390387-06057-00 ...COLLAR...COLLAR
-
490480-14003-00 ...GROMMET...GROMMET
-
590183-05M02-00 ...NUT, SPRING...NUT, SPRING
-
61UF-15379-00-00 ...SEAL...SEAL
-
72C0-2836T-00-00 ...DAMPER, LOCATING 1...DAMPER, LOCATING 1
-
82C0-2837J-00-00 ...DAMPER 5...DAMPER 5
-
92C0-2847S-00-00 ...DAMPER 11...DAMPER 11
-
103XV-21717-00-00 ...DAMPER...DAMPER
-
112C0-28391-20-00 ...GRAPHIC 1 FOR DPBMC...GRAPHIC 1 FOR DPBMC
-
112C0-28391-30-00 ...GRAPHIC 1 FOR SMX...GRAPHIC 1 FOR SMX
-
1290111-05003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390202-05180-00 WASHER, PLATEWASHER, PLATE
-
1490269-07007-00 RIVETRIVET
-
1590111-05003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690202-05180-00 WASHER, PLATEWASHER, PLATE
-
1790111-06040-00 BOLT, HEXAGON SOCKET BUTTONBOLT, HEXAGON SOCKET BUTTON
-
182C0-Y283V-40-P0 PANEL ASSEMBLY 2 (DPBMC)PANEL ASSEMBLY 2 (DPBMC)
-
182C0-Y283V-20-P2 PANEL ASSEMBLY 2 (MBL2 FOR SMX)PANEL ASSEMBLY 2 (MBL2 FOR SMX)
-
192C0-28229-00-00 ...COVER 2...COVER 2
-
2090183-05M02-00 ...NUT, SPRING...NUT, SPRING
-
211UF-15379-00-00 ...SEAL...SEAL
-
222C0-2837K-00-00 ...DAMPER 6...DAMPER 6
-
232C0-28392-20-00 ...GRAPHIC 2 FOR DPBMC...GRAPHIC 2 FOR DPBMC
-
232C0-28392-30-00 ...GRAPHIC 2 FOR SMX...GRAPHIC 2 FOR SMX
-
2490109-06078-00 BOLTBOLT
-
2590111-05003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2690202-05180-00 WASHER, PLATEWASHER, PLATE
-
2790269-07007-00 RIVETRIVET
-
2890111-05003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2990202-05180-00 WASHER, PLATEWASHER, PLATE
-
3090269-06008-00 RIVETRIVET
-
3190269-06008-00 RIVETRIVET
-
322C0-2117V-00-P0 COVER 7 (DPBMC)COVER 7 (DPBMC)
-
322C0-2117V-00-P2 COVER 7 (SMX)COVER 7 (SMX)
-
3390387-06057-00 COLLARCOLLAR
-
3490387-067K8-00 COLLARCOLLAR
-
3590480-14003-00 GROMMETGROMMET
-
3690480-12613-00 GROMMETGROMMET
-
3790183-05076-00 NUT, SPRINGNUT, SPRING
-
3890111-06040-00 BOLT, HEXAGON SOCKET BUTTONBOLT, HEXAGON SOCKET BUTTON
-
3990111-05003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4090202-05180-00 WASHER, PLATEWASHER, PLATE
-
4190111-06063-00 BOLT, HEXAGON SOCKET BUTTONBOLT, HEXAGON SOCKET BUTTON
-
422C0-2117W-00-P0 COVER 8 (DPBMC)COVER 8 (DPBMC)
-
422C0-2117W-00-P2 COVER 8 (SMX)COVER 8 (SMX)
-
4390387-06057-00 COLLARCOLLAR
-
4490387-067K8-00 COLLARCOLLAR
-
4590480-14003-00 GROMMETGROMMET
-
4690480-12613-00 GROMMETGROMMET
-
4790183-05076-00 NUT, SPRINGNUT, SPRING
-
4890464-13007-00 CLAMPCLAMP
-
4990111-06040-00 BOLT, HEXAGON SOCKET BUTTONBOLT, HEXAGON SOCKET BUTTON
-
5090111-05003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5190202-05180-00 WASHER, PLATEWASHER, PLATE
-
5290111-06063-00 BOLT, HEXAGON SOCKET BUTTONBOLT, HEXAGON SOCKET BUTTON
-
532C0-Y2808-00-P3 COVER ASSY, UNDER (MBL2 FOR DPBMC)COVER ASSY, UNDER (MBL2 FOR DPBMC)
-
532C0-Y2808-10-P2 COVER ASSY, UNDER (SMX)COVER ASSY, UNDER (SMX)
-
5490183-05076-00 ...NUT, SPRING...NUT, SPRING
-
5590387-06057-00 ...COLLAR...COLLAR
-
5690480-14003-00 ...GROMMET...GROMMET
-
572C0-2838G-00-00 ...SEAT 1...SEAT 1
-
582C0-2836U-00-00 ...DAMPER, LOCATING 2...DAMPER, LOCATING 2
-
592C0-2847N-00-00 ...DAMPER 8...DAMPER 8
-
602C0-2836L-00-00 ...PANEL, INNER 2...PANEL, INNER 2
-
6190269-06008-00 ...RIVET...RIVET
-
622C0-2838U-00-00 ...DUCT 4...DUCT 4
-
632C0-2834F-00-00 ...DAMPER...DAMPER
-
641LJ-2414J-00-00 ...DAMPER, PLATE 2...DAMPER, PLATE 2
-
6590164-05014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
6699241-00240-00 ...EMBLEM, YAMAHA FOR DPBMC...EMBLEM, YAMAHA FOR DPBMC
-
6699247-00240-00 ...EMBLEM, YAMAHA FOR SMX...EMBLEM, YAMAHA FOR SMX
-
6790111-06040-00 BOLT, HEXAGON SOCKET BUTTONBOLT, HEXAGON SOCKET BUTTON
-
6890111-05003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6990111-05003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7090202-05180-00 WASHER, PLATEWASHER, PLATE
-
712C0-Y2809-00-P3 COVER ASSY 2, UNDER (MBL2 FOR DPBMC)COVER ASSY 2, UNDER (MBL2 FOR DPBMC)
-
712C0-Y2809-10-P2 COVER ASSY 2, UNDER (SMX)COVER ASSY 2, UNDER (SMX)
-
7290387-06057-00 ...COLLAR...COLLAR
-
7390480-14003-00 ...GROMMET...GROMMET
-
7490183-05076-00 ...NUT, SPRING...NUT, SPRING
-
752C0-2848K-00-00 ...SEAT 2...SEAT 2
-
762C0-2848H-00-00 ...SEAT...SEAT
-
772C0-2847P-00-00 ...DAMPER 9...DAMPER 9
-
782C0-2847R-00-00 ...DAMPER 10...DAMPER 10
-
792C0-2836M-00-00 ...PANEL, INNER 3...PANEL, INNER 3
-
8090269-06008-00 ...RIVET...RIVET
-
812C0-2838J-00-00 ...DUCT 5...DUCT 5
-
822C0-2834E-00-00 ...DAMPER 1...DAMPER 1
-
8390164-05014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
8499241-00240-00 ...EMBLEM, YAMAHA FOR DPBMC...EMBLEM, YAMAHA FOR DPBMC
-
8499247-00240-00 ...EMBLEM, YAMAHA FOR SMX...EMBLEM, YAMAHA FOR SMX
-
8590111-06040-00 BOLT, HEXAGON SOCKET BUTTONBOLT, HEXAGON SOCKET BUTTON
-
8690111-05003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
8790202-05180-00 WASHER, PLATEWASHER, PLATE
-
8890269-06008-00 RIVETRIVET
-
8990269-06081-00 RIVETRIVET
-
902C0-21788-00-00 GRAPHICGRAPHIC
-
912C0-21789-00-00 GRAPHICGRAPHIC
