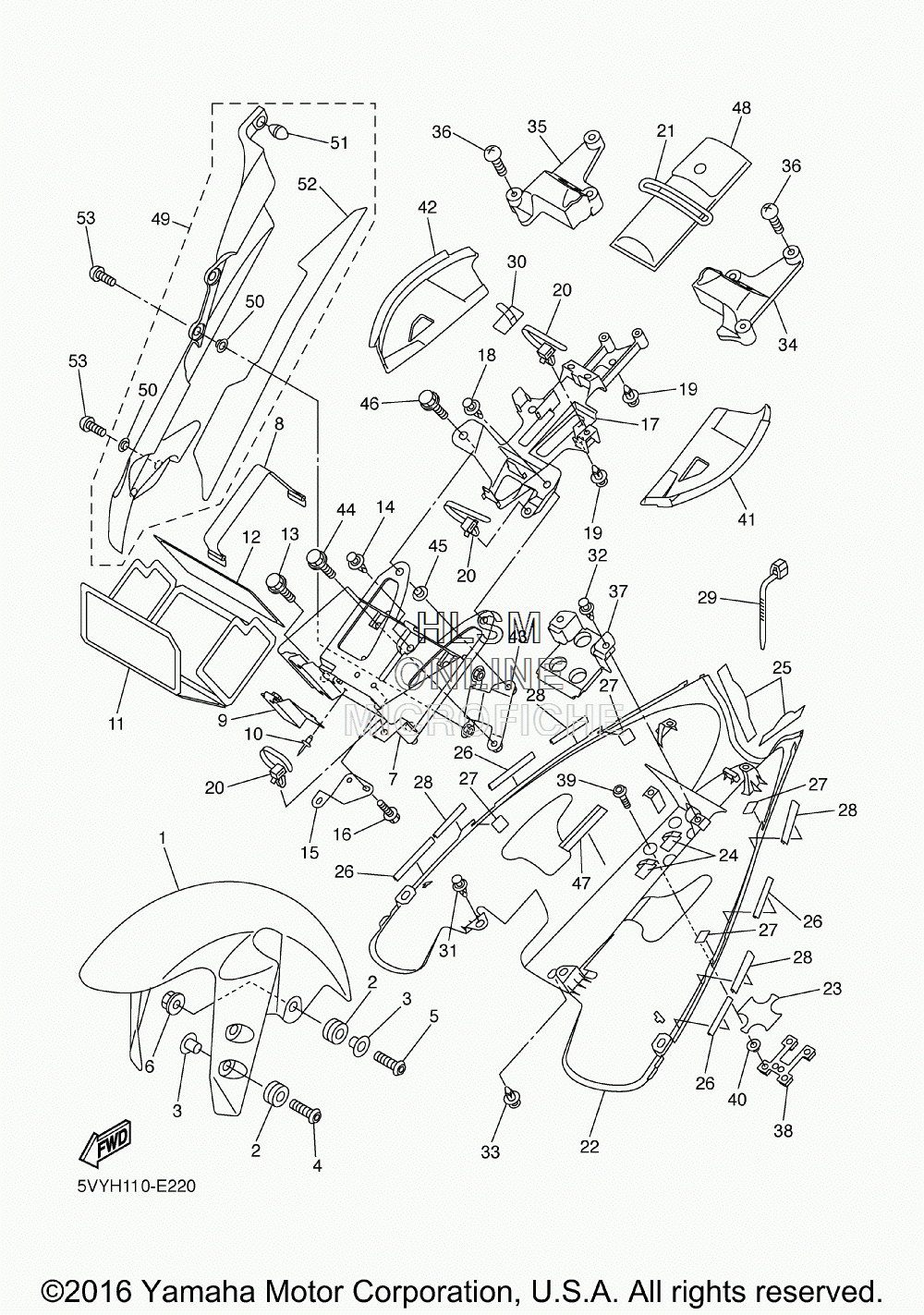

FENDER - FRONT / REAR для Yamaha YZF-R1 - 2006 года выпуска`
-
№АртикулНазвание
-
15PW-21511-00-P1 FENDER, FRONT (OPT) (DPBMC)FENDER, FRONT (OPT) (DPBMC)
-
15PW-21511-00-33 FENDER, FRONT (OPT) (YAMAHA BLACK FOR RYC1)FENDER, FRONT (OPT) (YAMAHA BLACK FOR RYC1)
-
15PW-21511-00-P6 FENDER, FRONT (OPT) (SMX)FENDER, FRONT (OPT) (SMX)
-
290480-12072-00 GROMMETGROMMET
-
390387-065J6-00 COLLARCOLLAR
-
490111-06043-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
590111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
695707-06500-00 NUT, FLANGENUT, FLANGE
-
75VY-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
8133-82131-00-00 BAND, BATTERYBAND, BATTERY
-
95VY-21617-00-00 BRACKET, FENDERBRACKET, FENDER
-
1090267-32161-00 RIVET, BLINDRIVET, BLIND
-
115VY-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
125VY-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
1390109-06043-00 BOLTBOLT
-
1490269-07076-00 RIVETRIVET
-
155VY-2164G-00-00 STAY 2STAY 2
-
1695827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
175VY-8212C-00-00 BOX, BATTERY 2BOX, BATTERY 2
-
1890269-07076-00 RIVETRIVET
-
1990269-07077-00 RIVETRIVET
-
2090464-12036-00 CLAMPCLAMP
-
214XV-21376-00-00 BAND, TOOLBAND, TOOL
-
225VY-21611-00-P1 FENDER, REAR (OPT) (DPBMC)FENDER, REAR (OPT) (DPBMC)
-
225VY-21611-00-P5 FENDER, REAR (OPT) (RYC1)FENDER, REAR (OPT) (RYC1)
-
225VY-21611-00-P4 FENDER, REAR (OPT) (SMX)FENDER, REAR (OPT) (SMX)
-
235VY-21669-00-00 SEALSEAL
-
2490465-04020-00 CLAMPCLAMP
-
255VY-21639-00-00 DAMPER 2DAMPER 2
-
265PW-21732-00-00 SEAL 1SEAL 1
-
271UF-15379-00-00 SEALSEAL
-
285VY-21732-00-00 SEAL 1SEAL 1
-
2990464-13073-00 CLAMPCLAMP
-
3090465-04020-00 CLAMPCLAMP
-
3190269-06081-00 RIVETRIVET
-
3290269-06081-00 RIVETRIVET
-
3390269-07077-00 RIVETRIVET
-
345VY-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
355VY-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
3697707-50014-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
375VY-21652-00-00 PROTECTORPROTECTOR
-
385VY-2161G-00-00 BRACKET 6BRACKET 6
-
3990111-06052-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4090387-06071-00 COLLARCOLLAR
-
415VY-2164K-00-00 PATCH 5PATCH 5
-
425VY-2164L-00-00 PATCH 6PATCH 6
-
435VY-2164F-00-00 STAY 1STAY 1
-
4490119-05011-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4590387-05017-00 COLLARCOLLAR
-
4690119-05193-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
473JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
485VY-28100-00-00 TOOL KITTOOL KIT
-
495VY-27490-00-00 PROTECTOR ASSYPROTECTOR ASSY
-
5090387-0603J-00 ...COLLAR...COLLAR
-
515VY-14757-00-00 ...DAMPER, MUFFLER 2...DAMPER, MUFFLER 2
-
525VY-2838G-00-00 ...SEAT 1...SEAT 1
-
5390149-06298-00 SCREWSCREW
